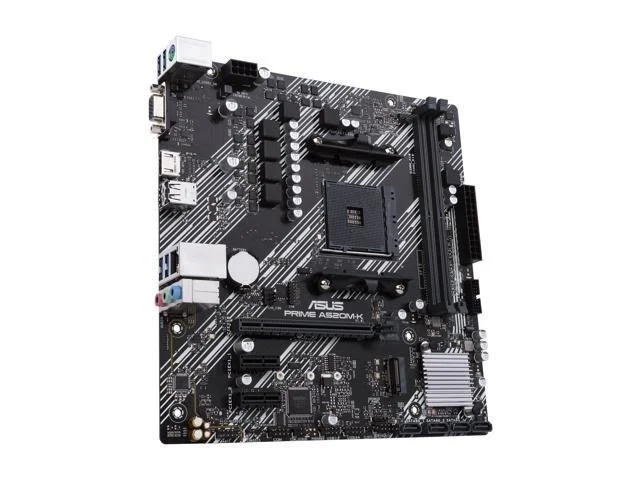

ASUS PRIME A520M-K, AMD AM4, MATX, 64GB DDR4, 2 X DIMM, D-SUB, HDMI, PCIE

Brand ASUS Series PRIME Model A520M-K Color Black Warranty Years 3 Years Product URL https://www.asus.com/eg-en/motherboards-components/motherboards/prime/prime-a520m-k/ Motherboard Form Factor M-ATX Chipset A520 Socket Type AM4 Memory Slot Type DDR4 Number of Memory Slots 2 Slot Maximum Memory Supported 64GB ECC Supported Yes SATA 4 x SATA Number of M.2 1 x M.2 PCI Express 3.0 x16 1 x Slot PCI Slots 1 x Slot Max LAN Speed 1Gbps WIFI Support No Bluetooth Support No Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 3 x Audio jack(s) Onboard USB 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) Other Onboard Connectors 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector Windows 11 Ready
