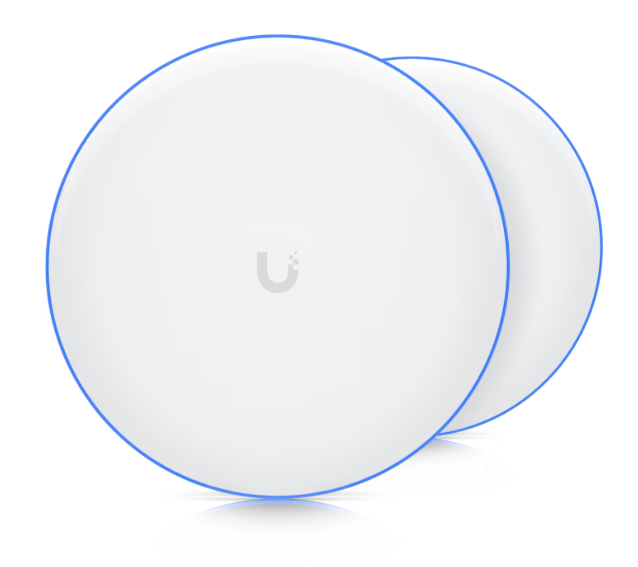

Building Bridge

Dimensions Ø140 x 90 mm (Ø5.5 x 3.5″) WiFi Standard WiFi 5 Spatial Streams 2 Coverage Area 500 m (1,640 ft) Mounting Locations Wall, pole Weatherproofing IPX6 Power Method PoE Performance MIMO 5 GHz 2 x 2 (DL MU-MIMO) Max. Data Rate 60 GHz 1.7 Gbps 5 GHz 866.6 Mbps (BW80) Antenna Gain 60 GHz 17.2 dBi 5 GHz 10 dBi 2.4 GHz 2 dBi (BLE) Max. TX Power 60 GHz 19 dBm 5 GHz 25 dBm Supported Data Rates 802.11ac (WiFi 5) 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80) 802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps Wireless Security WPA2 AES Hardware Max. Power Consumption 11W Includes PoE Adapter ✓ Supported Voltage Range 44—57V DC Networking Interface (1) GbE RJ45 port Weight 376 g (13.3 oz) Operating Modes PtP Wind Loading 56 N at 200 km/h (12.6 lbf at 125 mph) Management Ethernet Bluetooth Channel Bandwidth Main radio (60 GHz): 1,080/2,160 MHz Backup radio (5 GHz): HT 20/40 MHz, VHT 20/40/80 MHz Enclosure Material UV-resistant polycarbonate Button (1) Factory-reset LEDs System R/G/B Operating Frequency Main radio (60 GHz): 57 – 66 GHz Backup radio (5 GHz): US/CA U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide 5150 – 5725 MHz Bluetooth (MHz) Worldwide: 2400 – 2483.5 MHz Ambient Operating Temperature -40 to 70° C (-40 to 158° F) Ambient Operating Humidity 5 to 95% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC Dimensions Ø140 x 90 mm (Ø5.5 x 3.5″) WiFi Standard WiFi 5 Spatial Streams 2 Coverage Area 500 m (1,640 ft) Mounting Locations Wall, pole Weatherproofing IPX6 Power Method PoE Dimensions Ø140 x 90 mm (Ø5.5 x 3.5″) WiFi Standard WiFi 5 Spatial Streams 2 Coverage Area 500 m (1,640 ft) Mounting Locations Wall, pole Weatherproofing IPX6 Power Method PoE Dimensions Ø140 x 90 mm (Ø5.5 x 3.5″) WiFi Standard WiFi 5 Spatial Streams 2 Coverage Area 500 m (1,640 ft) Mounting Locations Wall, pole Weatherproofing IPX6 Power Method PoE Dimensions Ø140 x 90 mm (Ø5.5 x 3.5″) Dimensions Ø140 x 90 mm (Ø5.5 x 3.5″) Ø140 x 90 mm (Ø5.5 x 3.5″) WiFi Standard WiFi 5 WiFi Standard WiFi 5 WiFi 5 Spatial Streams 2 Spatial Streams 2 2 Coverage Area 500 m (1,640 ft) Coverage Area 500 m (1,640 ft) 500 m (1,640 ft) Mounting Locations Wall, pole Mounting Locations Wall, pole Wall, pole Weatherproofing IPX6 Weatherproofing IPX6 IPX6 Power Method PoE Power Method PoE PoE Performance MIMO 5 GHz 2 x 2 (DL MU-MIMO) Max. Data Rate 60 GHz 1.7 Gbps 5 GHz 866.6 Mbps (BW80) Antenna Gain 60 GHz 17.2 dBi 5 GHz 10 dBi 2.4 GHz 2 dBi (BLE) Max. TX Power 60 GHz 19 dBm 5 GHz 25 dBm Supported Data Rates 802.11ac (WiFi 5) 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80) 802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps Wireless Security WPA2 AES MIMO 5 GHz 2 x 2 (DL MU-MIMO) Max. Data Rate 60 GHz 1.7 Gbps 5 GHz 866.6 Mbps (BW80) Antenna Gain 60 GHz 17.2 dBi 5 GHz 10 dBi 2.4 GHz 2 dBi (BLE) Max. TX Power 60 GHz 19 dBm 5 GHz 25 dBm Supported Data Rates 802.11ac (WiFi 5) 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80) 802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps Wireless Security WPA2 AES MIMO 5 GHz 2 x 2 (DL MU-MIMO) Max. Data Rate 60 GHz 1.7 Gbps 5 GHz 866.6 Mbps (BW80) Antenna Gain 60 GHz 17.2 dBi 5 GHz 10 dBi 2.4 GHz 2 dBi (BLE) Max. TX Power 60 GHz 19 dBm 5 GHz 25 dBm Supported Data Rates 802.11ac (WiFi 5) 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80) 802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps Wireless Security WPA2 AES MIMO MIMO 5 GHz 2 x 2 (DL MU-MIMO) 5 GHz 2 x 2 (DL MU-MIMO) 2 x 2 (DL MU-MIMO) Max. Data Rate Max. Data Rate 60 GHz 1.7 Gbps 60 GHz 1.7 Gbps 1.7 Gbps 5 GHz 866.6 Mbps (BW80) 5 GHz 866.6 Mbps (BW80) 866.6 Mbps (BW80) Antenna Gain Antenna Gain 60 GHz 17.2 dBi 60 GHz 17.2 dBi 17.2 dBi 5 GHz 10 dBi 5 GHz 10 dBi 10 dBi 2.4 GHz 2 dBi (BLE) 2.4 GHz 2 dBi (BLE) 2 dBi (BLE) Max. TX Power Max. TX Power 60 GHz 19 dBm 60 GHz 19 dBm 19 dBm 5 GHz 25 dBm 5 GHz 25 dBm 25 dBm Supported Data Rates Supported Data Rates 802.11ac (WiFi 5) 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80) 802.11ac (WiFi 5) 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80) 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80) 802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) 802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11b 1, 2, 5.5, 11 Mbps 1, 2, 5.5, 11 Mbps 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 6, 9, 12, 18, 24, 36, 48, 54 Mbps Wireless Security WPA2 AES Wireless Security WPA2 AES WPA2 AES Hardware Max. Power Consumption 11W Includes PoE Adapter ✓ Supported Voltage Range 44—57V DC Networking Interface (1) GbE RJ45 port Weight 376 g (13.3 oz) Operating Modes PtP Wind Loading 56 N at 200 km/h (12.6 lbf at 125 mph) Management Ethernet Bluetooth Channel Bandwidth Main radio (60 GHz): 1,080/2,160 MHz Backup radio (5 GHz): HT 20/40 MHz, VHT 20/40/80 MHz Enclosure Material UV-resistant polycarbonate Button (1) Factory-reset LEDs System R/G/B Operating Frequency Main radio (60 GHz): 57 – 66 GHz Backup radio (5 GHz): US/CA U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide 5150 – 5725 MHz Bluetooth (MHz) Worldwide: 2400 – 2483.5 MHz Ambient Operating Temperature -40 to 70° C (-40 to 158° F) Ambient Operating Humidity 5 to 95% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC Max. Power Consumption 11W Includes PoE Adapter ✓ Supported Voltage Range 44—57V DC Networking Interface (1) GbE RJ45 port Weight 376 g (13.3 oz) Operating Modes PtP Wind Loading 56 N at 200 km/h (12.6 lbf at 125 mph) Management Ethernet Bluetooth Channel Bandwidth Main radio (60 GHz): 1,080/2,160 MHz Backup radio (5 GHz): HT 20/40 MHz, VHT 20/40/80 MHz Enclosure Material UV-resistant polycarbonate Button (1) Factory-reset LEDs System R/G/B Operating Frequency Main radio (60 GHz): 57 – 66 GHz Backup radio (5 GHz): US/CA U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide 5150 – 5725 MHz Bluetooth (MHz) Worldwide: 2400 – 2483.5 MHz Ambient Operating Temperature -40 to 70° C (-40 to 158° F) Ambient Operating Humidity 5 to 95% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC Max. Power Consumption 11W Includes PoE Adapter ✓ Supported Voltage Range 44—57V DC Networking Interface (1) GbE RJ45 port Weight 376 g (13.3 oz) Operating Modes PtP Wind Loading 56 N at 200 km/h (12.6 lbf at 125 mph) Management Ethernet Bluetooth Channel Bandwidth Main radio (60 GHz): 1,080/2,160 MHz Backup radio (5 GHz): HT 20/40 MHz, VHT 20/40/80 MHz Enclosure Material UV-resistant polycarbonate Button (1) Factory-reset LEDs System R/G/B Operating Frequency Main radio (60 GHz): 57 – 66 GHz Backup radio (5 GHz): US/CA U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide 5150 – 5725 MHz Bluetooth (MHz) Worldwide: 2400 – 2483.5 MHz Ambient Operating Temperature -40 to 70° C (-40 to 158° F) Ambient Operating Humidity 5 to 95% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC Max. Power Consumption 11W Max. Power Consumption 11W 11W Includes PoE Adapter ✓ Includes PoE Adapter ✓ ✓ Supported Voltage Range 44—57V DC Supported Voltage Range 44—57V DC 44—57V DC Networking Interface (1) GbE RJ45 port Networking Interface (1) GbE RJ45 port (1) GbE RJ45 port Weight 376 g (13.3 oz) Weight 376 g (13.3 oz) 376 g (13.3 oz) Operating Modes PtP Operating Modes PtP PtP Wind Loading 56 N at 200 km/h (12.6 lbf at 125 mph) Wind Loading 56 N at 200 km/h (12.6 lbf at 125 mph) 56 N at 200 km/h (12.6 lbf at 125 mph) Management Ethernet Bluetooth Management Ethernet Bluetooth Ethernet Bluetooth Channel Bandwidth Main radio (60 GHz): 1,080/2,160 MHz Backup radio (5 GHz): HT 20/40 MHz, VHT 20/40/80 MHz Channel Bandwidth Main radio (60 GHz): 1,080/2,160 MHz Backup radio (5 GHz): HT 20/40 MHz, VHT 20/40/80 MHz Main radio (60 GHz): 1,080/2,160 MHz Backup radio (5 GHz): HT 20/40 MHz, VHT 20/40/80 MHz Enclosure Material UV-resistant polycarbonate Enclosure Material UV-resistant polycarbonate UV-resistant polycarbonate Button (1) Factory-reset Button (1) Factory-reset (1) Factory-reset LEDs LEDs System R/G/B System R/G/B R/G/B Operating Frequency Main radio (60 GHz): 57 – 66 GHz Backup radio (5 GHz): US/CA U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide 5150 – 5725 MHz Operating Frequency Main radio (60 GHz): 57 – 66 GHz Backup radio (5 GHz): US/CA U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide 5150 – 5725 MHz Main radio (60 GHz): 57 – 66 GHz Backup radio (5 GHz): US/CA U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide 5150 – 5725 MHz Bluetooth (MHz) Worldwide: 2400 – 2483.5 MHz Bluetooth (MHz) Worldwide: 2400 – 2483.5 MHz Worldwide: 2400 – 2483.5 MHz Ambient Operating Temperature -40 to 70° C (-40 to 158° F) Ambient Operating Temperature -40 to 70° C (-40 to 158° F) -40 to 70° C (-40 to 158° F) Ambient Operating Humidity 5 to 95% noncondensing Ambient Operating Humidity 5 to 95% noncondensing 5 to 95% noncondensing NDAA Compliant ✓ NDAA Compliant ✓ ✓ Certifications CE, FCC, IC Certifications CE, FCC, IC CE, FCC, IC
