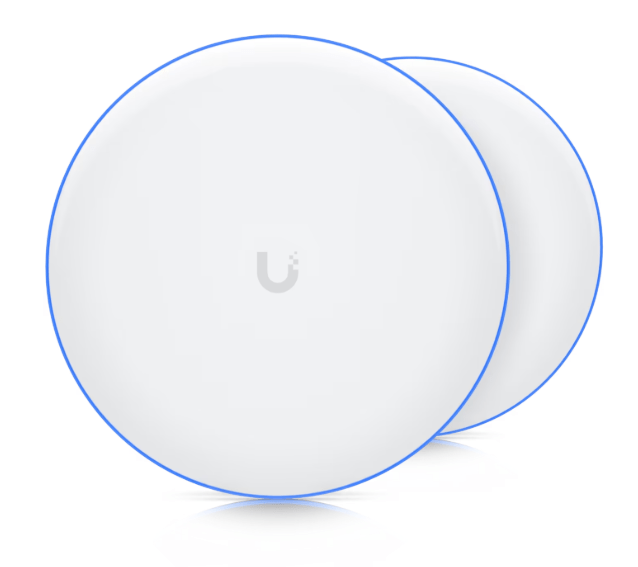

Building Bridge XG

Dimensions Ø191.8 x 59 mm (Ø7.6 x 2.3″) WiFi Standard WiFi 5 Spatial Streams 2 Coverage Area 500 m (1,640 ft) Mounting Locations Wall, pole Weatherproofing IPX6 Power Method PoE++ Passive PoE Performance MIMO 5 GHz 2 x 2 (DL MU-MIMO) Max. Data Rate 60 GHz 6 Gbps 5 GHz 866.6 Mbps (BW80) Antenna Gain 60 GHz 21 dBi 5 GHz 14 dBi 2.4 GHz 2 dBi (BLE) Max. TX Power 60 GHz 16 dBm 5 GHz 23 dBm Supported Data Rates 802.11ac (WiFi 5) 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80) 802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps Wireless Security WPA2 AES Hardware Max. Power Consumption 29W Includes PoE Adapter ✓ Supported Voltage Range 48V DC ± 10% Networking Interface (1) GbE RJ45 port (1) 1/10G SFP+ port Weight Device: 1.7 kg (3.8 lb) With mount: 2.9 kg (6.3 lb) Operating Modes PtP Wind Loading 56 N at 200 km/h (12.6 lbf at 125 mph) Pole Mount Diameter 1–2.5″ (25–63.5 mm) Management Ethernet Bluetooth Channel Bandwidth Main radio (60 GHz): 1,080/2,160 MHz Backup radio (5 GHz): HT 20/40 MHz, VHT 20/40/80 MHz Enclosure Material Aluminum alloy, UV-resistant polycarbonate Mount Material Stainless steel Button (1) Factory-reset LEDs System R/G/B Operating Frequency Main radio (60 GHz): 57 – 66 GHz Backup radio (5 GHz): US/CA U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide 5150 – 5725 MHz Bluetooth (MHz) Worldwide: 2400 – 2483.5 MHz Ambient Operating Temperature -40 to 55° C (-40 to 131° F) Ambient Operating Humidity 5 to 95% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC, Terragraph Dimensions Ø191.8 x 59 mm (Ø7.6 x 2.3″) WiFi Standard WiFi 5 Spatial Streams 2 Coverage Area 500 m (1,640 ft) Mounting Locations Wall, pole Weatherproofing IPX6 Power Method PoE++ Passive PoE Dimensions Ø191.8 x 59 mm (Ø7.6 x 2.3″) WiFi Standard WiFi 5 Spatial Streams 2 Coverage Area 500 m (1,640 ft) Mounting Locations Wall, pole Weatherproofing IPX6 Power Method PoE++ Passive PoE Dimensions Ø191.8 x 59 mm (Ø7.6 x 2.3″) WiFi Standard WiFi 5 Spatial Streams 2 Coverage Area 500 m (1,640 ft) Mounting Locations Wall, pole Weatherproofing IPX6 Power Method PoE++ Passive PoE Dimensions Ø191.8 x 59 mm (Ø7.6 x 2.3″) Dimensions Ø191.8 x 59 mm (Ø7.6 x 2.3″) Ø191.8 x 59 mm (Ø7.6 x 2.3″) WiFi Standard WiFi 5 WiFi Standard WiFi 5 WiFi 5 Spatial Streams 2 Spatial Streams 2 2 Coverage Area 500 m (1,640 ft) Coverage Area 500 m (1,640 ft) 500 m (1,640 ft) Mounting Locations Wall, pole Mounting Locations Wall, pole Wall, pole Weatherproofing IPX6 Weatherproofing IPX6 IPX6 Power Method PoE++ Passive PoE Power Method PoE++ Passive PoE PoE++ Passive PoE Performance MIMO 5 GHz 2 x 2 (DL MU-MIMO) Max. Data Rate 60 GHz 6 Gbps 5 GHz 866.6 Mbps (BW80) Antenna Gain 60 GHz 21 dBi 5 GHz 14 dBi 2.4 GHz 2 dBi (BLE) Max. TX Power 60 GHz 16 dBm 5 GHz 23 dBm Supported Data Rates 802.11ac (WiFi 5) 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80) 802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps Wireless Security WPA2 AES MIMO 5 GHz 2 x 2 (DL MU-MIMO) Max. Data Rate 60 GHz 6 Gbps 5 GHz 866.6 Mbps (BW80) Antenna Gain 60 GHz 21 dBi 5 GHz 14 dBi 2.4 GHz 2 dBi (BLE) Max. TX Power 60 GHz 16 dBm 5 GHz 23 dBm Supported Data Rates 802.11ac (WiFi 5) 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80) 802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps Wireless Security WPA2 AES MIMO 5 GHz 2 x 2 (DL MU-MIMO) Max. Data Rate 60 GHz 6 Gbps 5 GHz 866.6 Mbps (BW80) Antenna Gain 60 GHz 21 dBi 5 GHz 14 dBi 2.4 GHz 2 dBi (BLE) Max. TX Power 60 GHz 16 dBm 5 GHz 23 dBm Supported Data Rates 802.11ac (WiFi 5) 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80) 802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps Wireless Security WPA2 AES MIMO MIMO 5 GHz 2 x 2 (DL MU-MIMO) 5 GHz 2 x 2 (DL MU-MIMO) 2 x 2 (DL MU-MIMO) Max. Data Rate Max. Data Rate 60 GHz 6 Gbps 60 GHz 6 Gbps 6 Gbps 5 GHz 866.6 Mbps (BW80) 5 GHz 866.6 Mbps (BW80) 866.6 Mbps (BW80) Antenna Gain Antenna Gain 60 GHz 21 dBi 60 GHz 21 dBi 21 dBi 5 GHz 14 dBi 5 GHz 14 dBi 14 dBi 2.4 GHz 2 dBi (BLE) 2.4 GHz 2 dBi (BLE) 2 dBi (BLE) Max. TX Power Max. TX Power 60 GHz 16 dBm 60 GHz 16 dBm 16 dBm 5 GHz 23 dBm 5 GHz 23 dBm 23 dBm Supported Data Rates Supported Data Rates 802.11ac (WiFi 5) 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80) 802.11ac (WiFi 5) 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80) 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80) 802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) 802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11b 1, 2, 5.5, 11 Mbps 1, 2, 5.5, 11 Mbps 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 6, 9, 12, 18, 24, 36, 48, 54 Mbps Wireless Security WPA2 AES Wireless Security WPA2 AES WPA2 AES Hardware Max. Power Consumption 29W Includes PoE Adapter ✓ Supported Voltage Range 48V DC ± 10% Networking Interface (1) GbE RJ45 port (1) 1/10G SFP+ port Weight Device: 1.7 kg (3.8 lb) With mount: 2.9 kg (6.3 lb) Operating Modes PtP Wind Loading 56 N at 200 km/h (12.6 lbf at 125 mph) Pole Mount Diameter 1–2.5″ (25–63.5 mm) Management Ethernet Bluetooth Channel Bandwidth Main radio (60 GHz): 1,080/2,160 MHz Backup radio (5 GHz): HT 20/40 MHz, VHT 20/40/80 MHz Enclosure Material Aluminum alloy, UV-resistant polycarbonate Mount Material Stainless steel Button (1) Factory-reset LEDs System R/G/B Operating Frequency Main radio (60 GHz): 57 – 66 GHz Backup radio (5 GHz): US/CA U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide 5150 – 5725 MHz Bluetooth (MHz) Worldwide: 2400 – 2483.5 MHz Ambient Operating Temperature -40 to 55° C (-40 to 131° F) Ambient Operating Humidity 5 to 95% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC, Terragraph Max. Power Consumption 29W Includes PoE Adapter ✓ Supported Voltage Range 48V DC ± 10% Networking Interface (1) GbE RJ45 port (1) 1/10G SFP+ port Weight Device: 1.7 kg (3.8 lb) With mount: 2.9 kg (6.3 lb) Operating Modes PtP Wind Loading 56 N at 200 km/h (12.6 lbf at 125 mph) Pole Mount Diameter 1–2.5″ (25–63.5 mm) Management Ethernet Bluetooth Channel Bandwidth Main radio (60 GHz): 1,080/2,160 MHz Backup radio (5 GHz): HT 20/40 MHz, VHT 20/40/80 MHz Enclosure Material Aluminum alloy, UV-resistant polycarbonate Mount Material Stainless steel Button (1) Factory-reset LEDs System R/G/B Operating Frequency Main radio (60 GHz): 57 – 66 GHz Backup radio (5 GHz): US/CA U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide 5150 – 5725 MHz Bluetooth (MHz) Worldwide: 2400 – 2483.5 MHz Ambient Operating Temperature -40 to 55° C (-40 to 131° F) Ambient Operating Humidity 5 to 95% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC, Terragraph Max. Power Consumption 29W Includes PoE Adapter ✓ Supported Voltage Range 48V DC ± 10% Networking Interface (1) GbE RJ45 port (1) 1/10G SFP+ port Weight Device: 1.7 kg (3.8 lb) With mount: 2.9 kg (6.3 lb) Operating Modes PtP Wind Loading 56 N at 200 km/h (12.6 lbf at 125 mph) Pole Mount Diameter 1–2.5″ (25–63.5 mm) Management Ethernet Bluetooth Channel Bandwidth Main radio (60 GHz): 1,080/2,160 MHz Backup radio (5 GHz): HT 20/40 MHz, VHT 20/40/80 MHz Enclosure Material Aluminum alloy, UV-resistant polycarbonate Mount Material Stainless steel Button (1) Factory-reset LEDs System R/G/B Operating Frequency Main radio (60 GHz): 57 – 66 GHz Backup radio (5 GHz): US/CA U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide 5150 – 5725 MHz Bluetooth (MHz) Worldwide: 2400 – 2483.5 MHz Ambient Operating Temperature -40 to 55° C (-40 to 131° F) Ambient Operating Humidity 5 to 95% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC, Terragraph Max. Power Consumption 29W Max. Power Consumption 29W 29W Includes PoE Adapter ✓ Includes PoE Adapter ✓ ✓ Supported Voltage Range 48V DC ± 10% Supported Voltage Range 48V DC ± 10% 48V DC ± 10% Networking Interface (1) GbE RJ45 port (1) 1/10G SFP+ port Networking Interface (1) GbE RJ45 port (1) 1/10G SFP+ port (1) GbE RJ45 port (1) 1/10G SFP+ port Weight Device: 1.7 kg (3.8 lb) With mount: 2.9 kg (6.3 lb) Weight Device: 1.7 kg (3.8 lb) With mount: 2.9 kg (6.3 lb) Device: 1.7 kg (3.8 lb) With mount: 2.9 kg (6.3 lb) Operating Modes PtP Operating Modes PtP PtP Wind Loading 56 N at 200 km/h (12.6 lbf at 125 mph) Wind Loading 56 N at 200 km/h (12.6 lbf at 125 mph) 56 N at 200 km/h (12.6 lbf at 125 mph) Pole Mount Diameter 1–2.5″ (25–63.5 mm) Pole Mount Diameter 1–2.5″ (25–63.5 mm) 1–2.5″ (25–63.5 mm) Management Ethernet Bluetooth Management Ethernet Bluetooth Ethernet Bluetooth Channel Bandwidth Main radio (60 GHz): 1,080/2,160 MHz Backup radio (5 GHz): HT 20/40 MHz, VHT 20/40/80 MHz Channel Bandwidth Main radio (60 GHz): 1,080/2,160 MHz Backup radio (5 GHz): HT 20/40 MHz, VHT 20/40/80 MHz Main radio (60 GHz): 1,080/2,160 MHz Backup radio (5 GHz): HT 20/40 MHz, VHT 20/40/80 MHz Enclosure Material Aluminum alloy, UV-resistant polycarbonate Enclosure Material Aluminum alloy, UV-resistant polycarbonate Aluminum alloy, UV-resistant polycarbonate Mount Material Stainless steel Mount Material Stainless steel Stainless steel Button (1) Factory-reset Button (1) Factory-reset (1) Factory-reset LEDs LEDs System R/G/B System R/G/B R/G/B Operating Frequency Main radio (60 GHz): 57 – 66 GHz Backup radio (5 GHz): US/CA U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide 5150 – 5725 MHz Operating Frequency Main radio (60 GHz): 57 – 66 GHz Backup radio (5 GHz): US/CA U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide 5150 – 5725 MHz Main radio (60 GHz): 57 – 66 GHz Backup radio (5 GHz): US/CA U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide 5150 – 5725 MHz Bluetooth (MHz) Worldwide: 2400 – 2483.5 MHz Bluetooth (MHz) Worldwide: 2400 – 2483.5 MHz Worldwide: 2400 – 2483.5 MHz Ambient Operating Temperature -40 to 55° C (-40 to 131° F) Ambient Operating Temperature -40 to 55° C (-40 to 131° F) -40 to 55° C (-40 to 131° F) Ambient Operating Humidity 5 to 95% noncondensing Ambient Operating Humidity 5 to 95% noncondensing 5 to 95% noncondensing NDAA Compliant ✓ NDAA Compliant ✓ ✓ Certifications CE, FCC, IC, Terragraph Certifications CE, FCC, IC, Terragraph CE, FCC, IC, Terragraph
