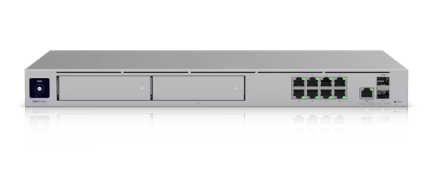

Dream Machine Pro Max

Dimensions 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2″) UniFi Application Suite Network ✓ Protect ✓ Access ✓ Talk ✓ Connect ✓ Managed UniFi Devices 200+ Managed Cameras (50) HD (25) 2K (15) 4K Managed Access Hubs 150 Simultaneous Users Connected 2,000+ Max. WAN Port Count 8 Default WAN Ports (1) 10G SFP+ (1) 2.5 GbE RJ45 Port Layout 1 GbE RJ45 8 (1G/100M/10M) 2.5 GbE RJ45 1 (2.5G/1G/100M/10M) 10G SFP+ 2 (10G/1G) IDS/IPS Throughput 5 Gbps Form Factor Rack mount (1U) Redundancy Shadow Mode (VRRP) Gateway Failover DC Power Backup Security Stateful Firewall ✓ Application-Aware Layer 7 Firewall ✓ DPI & Traffic Identification ✓ Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) ✓ Content Filtering ✓ Intrusion Prevention (IPS/IDS) ✓ Ad Blocking ✓ IDS/IPS Signatures 55,000+ with CyberSecure VLAN/Subnet-based Traffic Segmentation ✓ VPN & SD-WAN License-Free SD-WAN ✓ Site-to-Site VPN Site Magic ✓ IPsec ✓ OpenVPN ✓ VPN Server Identity Endpoint One-Click VPN ✓ Teleport Zero-Configuration VPN ✓ WireGuard ✓ OpenVPN ✓ L2TP ✓ VPN Client OpenVPN ✓ WireGuard ✓ Networking Multi-WAN Load Balancing ✓ Shadow Mode (VRRP) High Availability ✓ LACP Port Aggregation ✓ Dynamic Routing OSPF ✓ BGP ✓ Advanced QoS ✓ Multicast DNS (mDNS) ✓ Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓ Integrated RADIUS Server ✓ RADIUS over TLS (RadSec) ✓ Additional Internet Failover with UniFi LTE Backup ✓ Internet Quality and Outage Reporting ✓ MAC Address Table Size 4,000 Policy-based WAN and VPN Routing ✓ Customizable DHCP Server ✓ IPv6 ISP Support ✓ IGMP Proxy ✓ Virtual Network Override ✓ All Traffic Flows ✓ Hardware NVR Storage (2) 3.5″ NVR HDD bays Built-in 128 GB SSD for Faster Experience Max. Power Consumption 60W Power Method (1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 8.7A Power Supply AC/DC, internal, 100W Supported Voltage Range 100—240V AC Heat Dissipation 205 BTU/hr Processor Quad-core ARM® Cortex®-A57 at 2.0 GHz System Memory 8 GB On-board Storage 32 GB eMMC 128 GB SSD (Integrated) Weight 4.7 kg (10.4 lb) Enclosure Material Aluminium CNC, SGCC steel Mount Material SGCC steel LCM Display 1.3″ touchscreen Management Ethernet Bluetooth LEDs Ethernet ✓ SFP+ ✓ RPS ✓ PSU ✓ HDD ✓ Button (1) Factory-reset ESD/EMP Protection Air: ± 15kV, contact: ± 8kV Ambient Operating Temperature -10 to 40° C (14 to 104° F) Ambient Operating Humidity 5 to 95% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 06369-24-08356, SRRC Dimensions 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2″) UniFi Application Suite Network ✓ Protect ✓ Access ✓ Talk ✓ Connect ✓ Managed UniFi Devices 200+ Managed Cameras (50) HD (25) 2K (15) 4K Managed Access Hubs 150 Simultaneous Users Connected 2,000+ Max. WAN Port Count 8 Default WAN Ports (1) 10G SFP+ (1) 2.5 GbE RJ45 Port Layout 1 GbE RJ45 8 (1G/100M/10M) 2.5 GbE RJ45 1 (2.5G/1G/100M/10M) 10G SFP+ 2 (10G/1G) IDS/IPS Throughput 5 Gbps Form Factor Rack mount (1U) Redundancy Shadow Mode (VRRP) Gateway Failover DC Power Backup Dimensions 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2″) UniFi Application Suite Network ✓ Protect ✓ Access ✓ Talk ✓ Connect ✓ Managed UniFi Devices 200+ Managed Cameras (50) HD (25) 2K (15) 4K Managed Access Hubs 150 Simultaneous Users Connected 2,000+ Max. WAN Port Count 8 Default WAN Ports (1) 10G SFP+ (1) 2.5 GbE RJ45 Port Layout 1 GbE RJ45 8 (1G/100M/10M) 2.5 GbE RJ45 1 (2.5G/1G/100M/10M) 10G SFP+ 2 (10G/1G) IDS/IPS Throughput 5 Gbps Form Factor Rack mount (1U) Redundancy Shadow Mode (VRRP) Gateway Failover DC Power Backup Dimensions 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2″) UniFi Application Suite Network ✓ Protect ✓ Access ✓ Talk ✓ Connect ✓ Managed UniFi Devices 200+ Managed Cameras (50) HD (25) 2K (15) 4K Managed Access Hubs 150 Simultaneous Users Connected 2,000+ Max. WAN Port Count 8 Default WAN Ports (1) 10G SFP+ (1) 2.5 GbE RJ45 Port Layout 1 GbE RJ45 8 (1G/100M/10M) 2.5 GbE RJ45 1 (2.5G/1G/100M/10M) 10G SFP+ 2 (10G/1G) IDS/IPS Throughput 5 Gbps Form Factor Rack mount (1U) Redundancy Shadow Mode (VRRP) Gateway Failover DC Power Backup Dimensions 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2″) Dimensions 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2″) 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2″) UniFi Application Suite UniFi Application Suite Network ✓ Network ✓ ✓ Protect ✓ Protect ✓ ✓ Access ✓ Access ✓ ✓ Talk ✓ Talk ✓ ✓ Connect ✓ Connect ✓ ✓ Managed UniFi Devices 200+ Managed UniFi Devices 200+ 200+ Managed Cameras (50) HD (25) 2K (15) 4K Managed Cameras (50) HD (25) 2K (15) 4K (50) HD (25) 2K (15) 4K Managed Access Hubs 150 Managed Access Hubs 150 150 Simultaneous Users Connected 2,000+ Simultaneous Users Connected 2,000+ 2,000+ Max. WAN Port Count 8 Max. WAN Port Count 8 8 Default WAN Ports (1) 10G SFP+ (1) 2.5 GbE RJ45 Default WAN Ports (1) 10G SFP+ (1) 2.5 GbE RJ45 (1) 10G SFP+ (1) 2.5 GbE RJ45 Port Layout Port Layout 1 GbE RJ45 8 (1G/100M/10M) 1 GbE RJ45 8 (1G/100M/10M) 8 (1G/100M/10M) 2.5 GbE RJ45 1 (2.5G/1G/100M/10M) 2.5 GbE RJ45 1 (2.5G/1G/100M/10M) 1 (2.5G/1G/100M/10M) 10G SFP+ 2 (10G/1G) 10G SFP+ 2 (10G/1G) 2 (10G/1G) IDS/IPS Throughput 5 Gbps IDS/IPS Throughput 5 Gbps 5 Gbps Form Factor Rack mount (1U) Form Factor Rack mount (1U) Rack mount (1U) Redundancy Shadow Mode (VRRP) Gateway Failover DC Power Backup Redundancy Shadow Mode (VRRP) Gateway Failover DC Power Backup Shadow Mode (VRRP) Gateway Failover DC Power Backup Security Stateful Firewall ✓ Application-Aware Layer 7 Firewall ✓ DPI & Traffic Identification ✓ Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) ✓ Content Filtering ✓ Intrusion Prevention (IPS/IDS) ✓ Ad Blocking ✓ IDS/IPS Signatures 55,000+ with CyberSecure VLAN/Subnet-based Traffic Segmentation ✓ Stateful Firewall ✓ Application-Aware Layer 7 Firewall ✓ DPI & Traffic Identification ✓ Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) ✓ Content Filtering ✓ Intrusion Prevention (IPS/IDS) ✓ Ad Blocking ✓ IDS/IPS Signatures 55,000+ with CyberSecure VLAN/Subnet-based Traffic Segmentation ✓ Stateful Firewall ✓ Application-Aware Layer 7 Firewall ✓ DPI & Traffic Identification ✓ Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) ✓ Content Filtering ✓ Intrusion Prevention (IPS/IDS) ✓ Ad Blocking ✓ IDS/IPS Signatures 55,000+ with CyberSecure VLAN/Subnet-based Traffic Segmentation ✓ Stateful Firewall ✓ Stateful Firewall ✓ ✓ Application-Aware Layer 7 Firewall ✓ Application-Aware Layer 7 Firewall ✓ ✓ DPI & Traffic Identification ✓ DPI & Traffic Identification ✓ ✓ Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) ✓ Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) ✓ ✓ Content Filtering ✓ Content Filtering ✓ ✓ Intrusion Prevention (IPS/IDS) ✓ Intrusion Prevention (IPS/IDS) ✓ ✓ Ad Blocking ✓ Ad Blocking ✓ ✓ IDS/IPS Signatures 55,000+ with CyberSecure IDS/IPS Signatures 55,000+ with CyberSecure 55,000+ with CyberSecure VLAN/Subnet-based Traffic Segmentation ✓ VLAN/Subnet-based Traffic Segmentation ✓ ✓ VPN & SD-WAN License-Free SD-WAN ✓ Site-to-Site VPN Site Magic ✓ IPsec ✓ OpenVPN ✓ VPN Server Identity Endpoint One-Click VPN ✓ Teleport Zero-Configuration VPN ✓ WireGuard ✓ OpenVPN ✓ L2TP ✓ VPN Client OpenVPN ✓ WireGuard ✓ License-Free SD-WAN ✓ Site-to-Site VPN Site Magic ✓ IPsec ✓ OpenVPN ✓ VPN Server Identity Endpoint One-Click VPN ✓ Teleport Zero-Configuration VPN ✓ WireGuard ✓ OpenVPN ✓ L2TP ✓ VPN Client OpenVPN ✓ WireGuard ✓ License-Free SD-WAN ✓ Site-to-Site VPN Site Magic ✓ IPsec ✓ OpenVPN ✓ VPN Server Identity Endpoint One-Click VPN ✓ Teleport Zero-Configuration VPN ✓ WireGuard ✓ OpenVPN ✓ L2TP ✓ VPN Client OpenVPN ✓ WireGuard ✓ License-Free SD-WAN ✓ License-Free SD-WAN ✓ ✓ Site-to-Site VPN Site-to-Site VPN Site Magic ✓ Site Magic ✓ ✓ IPsec ✓ IPsec ✓ ✓ OpenVPN ✓ OpenVPN ✓ ✓ VPN Server VPN Server Identity Endpoint One-Click VPN ✓ Identity Endpoint One-Click VPN ✓ ✓ Teleport Zero-Configuration VPN ✓ Teleport Zero-Configuration VPN ✓ ✓ WireGuard ✓ WireGuard ✓ ✓ OpenVPN ✓ OpenVPN ✓ ✓ L2TP ✓ L2TP ✓ ✓ VPN Client VPN Client OpenVPN ✓ OpenVPN ✓ ✓ WireGuard ✓ WireGuard ✓ ✓ Networking Multi-WAN Load Balancing ✓ Shadow Mode (VRRP) High Availability ✓ LACP Port Aggregation ✓ Dynamic Routing OSPF ✓ BGP ✓ Advanced QoS ✓ Multicast DNS (mDNS) ✓ Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓ Integrated RADIUS Server ✓ RADIUS over TLS (RadSec) ✓ Additional Internet Failover with UniFi LTE Backup ✓ Internet Quality and Outage Reporting ✓ MAC Address Table Size 4,000 Policy-based WAN and VPN Routing ✓ Customizable DHCP Server ✓ IPv6 ISP Support ✓ IGMP Proxy ✓ Virtual Network Override ✓ All Traffic Flows ✓ Multi-WAN Load Balancing ✓ Shadow Mode (VRRP) High Availability ✓ LACP Port Aggregation ✓ Dynamic Routing OSPF ✓ BGP ✓ Advanced QoS ✓ Multicast DNS (mDNS) ✓ Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓ Integrated RADIUS Server ✓ RADIUS over TLS (RadSec) ✓ Additional Internet Failover with UniFi LTE Backup ✓ Internet Quality and Outage Reporting ✓ MAC Address Table Size 4,000 Policy-based WAN and VPN Routing ✓ Customizable DHCP Server ✓ IPv6 ISP Support ✓ IGMP Proxy ✓ Virtual Network Override ✓ All Traffic Flows ✓ Multi-WAN Load Balancing ✓ Shadow Mode (VRRP) High Availability ✓ LACP Port Aggregation ✓ Dynamic Routing OSPF ✓ BGP ✓ Advanced QoS ✓ Multicast DNS (mDNS) ✓ Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓ Integrated RADIUS Server ✓ RADIUS over TLS (RadSec) ✓ Additional Internet Failover with UniFi LTE Backup ✓ Internet Quality and Outage Reporting ✓ MAC Address Table Size 4,000 Policy-based WAN and VPN Routing ✓ Customizable DHCP Server ✓ IPv6 ISP Support ✓ IGMP Proxy ✓ Virtual Network Override ✓ All Traffic Flows ✓ Multi-WAN Load Balancing ✓ Multi-WAN Load Balancing ✓ ✓ Shadow Mode (VRRP) High Availability ✓ Shadow Mode (VRRP) High Availability ✓ ✓ LACP Port Aggregation ✓ LACP Port Aggregation ✓ ✓ Dynamic Routing Dynamic Routing OSPF ✓ OSPF ✓ ✓ BGP ✓ BGP ✓ ✓ Advanced QoS ✓ Advanced QoS ✓ ✓ Multicast DNS (mDNS) ✓ Multicast DNS (mDNS) ✓ ✓ Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓ Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓ ✓ Integrated RADIUS Server ✓ Integrated RADIUS Server ✓ ✓ RADIUS over TLS (RadSec) ✓ RADIUS over TLS (RadSec) ✓ ✓ Additional Internet Failover with UniFi LTE Backup ✓ Additional Internet Failover with UniFi LTE Backup ✓ ✓ Internet Quality and Outage Reporting ✓ Internet Quality and Outage Reporting ✓ ✓ MAC Address Table Size 4,000 MAC Address Table Size 4,000 4,000 Policy-based WAN and VPN Routing ✓ Policy-based WAN and VPN Routing ✓ ✓ Customizable DHCP Server ✓ Customizable DHCP Server ✓ ✓ IPv6 ISP Support ✓ IPv6 ISP Support ✓ ✓ IGMP Proxy ✓ IGMP Proxy ✓ ✓ Virtual Network Override ✓ Virtual Network Override ✓ ✓ All Traffic Flows ✓ All Traffic Flows ✓ ✓ Hardware NVR Storage (2) 3.5″ NVR HDD bays Built-in 128 GB SSD for Faster Experience Max. Power Consumption 60W Power Method (1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 8.7A Power Supply AC/DC, internal, 100W Supported Voltage Range 100—240V AC Heat Dissipation 205 BTU/hr Processor Quad-core ARM® Cortex®-A57 at 2.0 GHz System Memory 8 GB On-board Storage 32 GB eMMC 128 GB SSD (Integrated) Weight 4.7 kg (10.4 lb) Enclosure Material Aluminium CNC, SGCC steel Mount Material SGCC steel LCM Display 1.3″ touchscreen Management Ethernet Bluetooth LEDs Ethernet ✓ SFP+ ✓ RPS ✓ PSU ✓ HDD ✓ Button (1) Factory-reset ESD/EMP Protection Air: ± 15kV, contact: ± 8kV Ambient Operating Temperature -10 to 40° C (14 to 104° F) Ambient Operating Humidity 5 to 95% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 06369-24-08356, SRRC NVR Storage (2) 3.5″ NVR HDD bays Built-in 128 GB SSD for Faster Experience Max. Power Consumption 60W Power Method (1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 8.7A Power Supply AC/DC, internal, 100W Supported Voltage Range 100—240V AC Heat Dissipation 205 BTU/hr Processor Quad-core ARM® Cortex®-A57 at 2.0 GHz System Memory 8 GB On-board Storage 32 GB eMMC 128 GB SSD (Integrated) Weight 4.7 kg (10.4 lb) Enclosure Material Aluminium CNC, SGCC steel Mount Material SGCC steel LCM Display 1.3″ touchscreen Management Ethernet Bluetooth LEDs Ethernet ✓ SFP+ ✓ RPS ✓ PSU ✓ HDD ✓ Button (1) Factory-reset ESD/EMP Protection Air: ± 15kV, contact: ± 8kV Ambient Operating Temperature -10 to 40° C (14 to 104° F) Ambient Operating Humidity 5 to 95% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 06369-24-08356, SRRC NVR Storage (2) 3.5″ NVR HDD bays Built-in 128 GB SSD for Faster Experience Max. Power Consumption 60W Power Method (1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 8.7A Power Supply AC/DC, internal, 100W Supported Voltage Range 100—240V AC Heat Dissipation 205 BTU/hr Processor Quad-core ARM® Cortex®-A57 at 2.0 GHz System Memory 8 GB On-board Storage 32 GB eMMC 128 GB SSD (Integrated) Weight 4.7 kg (10.4 lb) Enclosure Material Aluminium CNC, SGCC steel Mount Material SGCC steel LCM Display 1.3″ touchscreen Management Ethernet Bluetooth LEDs Ethernet ✓ SFP+ ✓ RPS ✓ PSU ✓ HDD ✓ Button (1) Factory-reset ESD/EMP Protection Air: ± 15kV, contact: ± 8kV Ambient Operating Temperature -10 to 40° C (14 to 104° F) Ambient Operating Humidity 5 to 95% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 06369-24-08356, SRRC NVR Storage (2) 3.5″ NVR HDD bays Built-in 128 GB SSD for Faster Experience NVR Storage (2) 3.5″ NVR HDD bays Built-in 128 GB SSD for Faster Experience (2) 3.5″ NVR HDD bays Built-in 128 GB SSD for Faster Experience Max. Power Consumption 60W Max. Power Consumption 60W 60W Power Method (1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 8.7A Power Method (1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 8.7A (1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 8.7A Power Supply AC/DC, internal, 100W Power Supply AC/DC, internal, 100W AC/DC, internal, 100W Supported Voltage Range 100—240V AC Supported Voltage Range 100—240V AC 100—240V AC Heat Dissipation 205 BTU/hr Heat Dissipation 205 BTU/hr 205 BTU/hr Processor Quad-core ARM® Cortex®-A57 at 2.0 GHz Processor Quad-core ARM® Cortex®-A57 at 2.0 GHz Quad-core ARM® Cortex®-A57 at 2.0 GHz System Memory 8 GB System Memory 8 GB 8 GB On-board Storage 32 GB eMMC 128 GB SSD (Integrated) On-board Storage 32 GB eMMC 128 GB SSD (Integrated) 32 GB eMMC 128 GB SSD (Integrated) Weight 4.7 kg (10.4 lb) Weight 4.7 kg (10.4 lb) 4.7 kg (10.4 lb) Enclosure Material Aluminium CNC, SGCC steel Enclosure Material Aluminium CNC, SGCC steel Aluminium CNC, SGCC steel Mount Material SGCC steel Mount Material SGCC steel SGCC steel LCM Display 1.3″ touchscreen LCM Display 1.3″ touchscreen 1.3″ touchscreen Management Ethernet Bluetooth Management Ethernet Bluetooth Ethernet Bluetooth LEDs LEDs Ethernet ✓ Ethernet ✓ ✓ SFP+ ✓ SFP+ ✓ ✓ RPS ✓ RPS ✓ ✓ PSU ✓ PSU ✓ ✓ HDD ✓ HDD ✓ ✓ Button (1) Factory-reset Button (1) Factory-reset (1) Factory-reset ESD/EMP Protection Air: ± 15kV, contact: ± 8kV ESD/EMP Protection Air: ± 15kV, contact: ± 8kV Air: ± 15kV, contact: ± 8kV Ambient Operating Temperature -10 to 40° C (14 to 104° F) Ambient Operating Temperature -10 to 40° C (14 to 104° F) -10 to 40° C (14 to 104° F) Ambient Operating Humidity 5 to 95% noncondensing Ambient Operating Humidity 5 to 95% noncondensing 5 to 95% noncondensing NDAA Compliant ✓ NDAA Compliant ✓ ✓ Certifications CE, FCC, IC, Anatel: 06369-24-08356, SRRC Certifications CE, FCC, IC, Anatel: 06369-24-08356, SRRC CE, FCC, IC, Anatel: 06369-24-08356, SRRC
