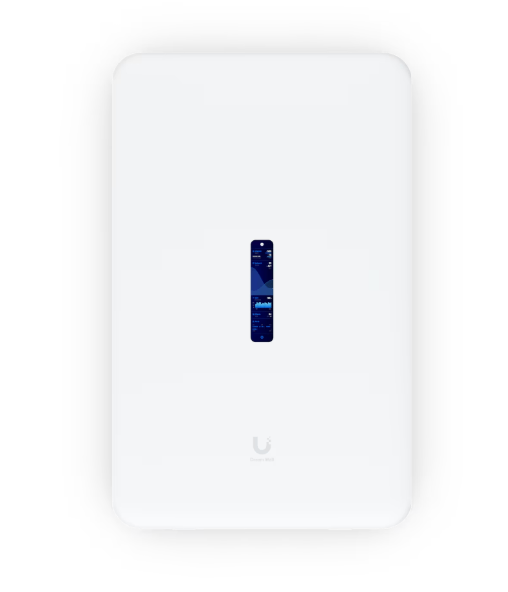

Dream Wall

Dimensions 549 x 342 x 62 mm (21.6 x 13.5 x 2.4″) UniFi Application Suite Network ✓ Protect ✓ Access ✓ Talk ✓ Connect ✓ Managed UniFi Devices 100+ Managed Cameras (12) HD (7) 2K (4) 4K Simultaneous Users Connected 300+ Max. WAN Port Count 8 Default WAN Ports (1) 2.5 GbE RJ45 (1) 10G SFP+ Port Layout 1 GbE RJ45 17 (4 PoE++; 4 PoE+; 4 PoE (1G/100M/10M) 2.5 GbE RJ45 1 (2.5G/1G/100M) 10G SFP+ 2 (10G/1G) IDS/IPS Throughput 3.5 Gbps Form Factor Wall-mounted Redundancy (2) Hot-Swappable PSUs Coverage Area 140 m² (1,500 ft²) Security Stateful Firewall ✓ Application-Aware Layer 7 Firewall ✓ DPI & Traffic Identification ✓ Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) ✓ Content Filtering ✓ Intrusion Prevention (IPS/IDS) ✓ Ad Blocking ✓ IDS/IPS Signatures 55,000+ with CyberSecure VLAN/Subnet-based Traffic Segmentation ✓ VPN & SD-WAN License-Free SD-WAN ✓ Site-to-Site VPN Site Magic ✓ IPsec ✓ OpenVPN ✓ VPN Server Identity Endpoint One-Click VPN ✓ Teleport Zero-Configuration VPN ✓ WireGuard ✓ OpenVPN ✓ L2TP ✓ VPN Client OpenVPN ✓ WireGuard ✓ Networking Multi-WAN Load Balancing ✓ Dynamic Routing OSPF ✓ BGP ✓ Advanced QoS ✓ Multicast DNS (mDNS) ✓ Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓ Integrated RADIUS Server ✓ RADIUS over TLS (RadSec) ✓ Additional Internet Failover with UniFi LTE Backup ✓ Internet Quality and Outage Reporting ✓ MAC Address Table Size 8,000 Policy-based WAN and VPN Routing ✓ Customizable DHCP Server ✓ IPv6 ISP Support ✓ IGMP Proxy ✓ Virtual Network Override ✓ All Traffic Flows ✓ Integrated WiFi WiFi Standard 802.11a/b/g/n/ac/ax (WiFi 6) Throughput 5 GHz 2.4 Gbps 2.4 GHz 300 Mbps MIMO 5 GHz 4 x 4 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) Antenna Gain 5 GHz 6 dBi 2.4 GHz 5.9 dBi Max. TX Power 5 GHz 26 dBm 2.4 GHz 23 dBm Wireless Security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) Max. BSSIDs 8 per Radio Supported Data Rates 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps Hardware NVR Storage Pre-installed 512 GB microSD for NVR Built-in 128 GB SSD for detection recordings Expansion Slot MicroSD Card PoE Budget 420W Max. PoE Wattage per Port by PSE PoE 15.4W PoE+ 30W PoE++ 60W Voltage Range PoE Mode PoE: 44-57V PoE+/PoE++: 50-57V Max. Power Consumption 532W (Including PoE Output) Power Method Universal AC input 100—240V AC, 7A Max., 50/60Hz Power Supply (2) Hot-Swappable AC/DC 550W PSU (1) Pre-installed PSU Supported Voltage Range 100—240V AC Heat Dissipation 382 BTU/hr (Excluding PoE Output) Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz System Memory 4 GB On-board Storage 16 GB eMMC Integrated 128 GB SSD Pre-installed 512 GB microSD card Weight 8.6 kg (19 lb) Enclosure Material Polycarbonate, galvanized steel, aluminum alloy Mount Material Stainless steel LCM Display 4.7″ touchscreen Management Ethernet Bluetooth LEDs Ethernet ✓ SFP+ ✓ Button (1) Factory-reset ESD/EMP Protection Air: ± 8kV, contact: ± 4kV Ambient Operating Temperature -10 to 40° C (14 to 104° F) Ambient Operating Humidity 5 to 95% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 18314-23-08356 Software VLAN 802.1Q Guest Traffic Isolation ✓ Dimensions 549 x 342 x 62 mm (21.6 x 13.5 x 2.4″) UniFi Application Suite Network ✓ Protect ✓ Access ✓ Talk ✓ Connect ✓ Managed UniFi Devices 100+ Managed Cameras (12) HD (7) 2K (4) 4K Simultaneous Users Connected 300+ Max. WAN Port Count 8 Default WAN Ports (1) 2.5 GbE RJ45 (1) 10G SFP+ Port Layout 1 GbE RJ45 17 (4 PoE++; 4 PoE+; 4 PoE (1G/100M/10M) 2.5 GbE RJ45 1 (2.5G/1G/100M) 10G SFP+ 2 (10G/1G) IDS/IPS Throughput 3.5 Gbps Form Factor Wall-mounted Redundancy (2) Hot-Swappable PSUs Coverage Area 140 m² (1,500 ft²) Dimensions 549 x 342 x 62 mm (21.6 x 13.5 x 2.4″) UniFi Application Suite Network ✓ Protect ✓ Access ✓ Talk ✓ Connect ✓ Managed UniFi Devices 100+ Managed Cameras (12) HD (7) 2K (4) 4K Simultaneous Users Connected 300+ Max. WAN Port Count 8 Default WAN Ports (1) 2.5 GbE RJ45 (1) 10G SFP+ Port Layout 1 GbE RJ45 17 (4 PoE++; 4 PoE+; 4 PoE (1G/100M/10M) 2.5 GbE RJ45 1 (2.5G/1G/100M) 10G SFP+ 2 (10G/1G) IDS/IPS Throughput 3.5 Gbps Form Factor Wall-mounted Redundancy (2) Hot-Swappable PSUs Coverage Area 140 m² (1,500 ft²) Dimensions 549 x 342 x 62 mm (21.6 x 13.5 x 2.4″) UniFi Application Suite Network ✓ Protect ✓ Access ✓ Talk ✓ Connect ✓ Managed UniFi Devices 100+ Managed Cameras (12) HD (7) 2K (4) 4K Simultaneous Users Connected 300+ Max. WAN Port Count 8 Default WAN Ports (1) 2.5 GbE RJ45 (1) 10G SFP+ Port Layout 1 GbE RJ45 17 (4 PoE++; 4 PoE+; 4 PoE (1G/100M/10M) 2.5 GbE RJ45 1 (2.5G/1G/100M) 10G SFP+ 2 (10G/1G) IDS/IPS Throughput 3.5 Gbps Form Factor Wall-mounted Redundancy (2) Hot-Swappable PSUs Coverage Area 140 m² (1,500 ft²) Dimensions 549 x 342 x 62 mm (21.6 x 13.5 x 2.4″) Dimensions 549 x 342 x 62 mm (21.6 x 13.5 x 2.4″) 549 x 342 x 62 mm (21.6 x 13.5 x 2.4″) UniFi Application Suite UniFi Application Suite Network ✓ Network ✓ ✓ Protect ✓ Protect ✓ ✓ Access ✓ Access ✓ ✓ Talk ✓ Talk ✓ ✓ Connect ✓ Connect ✓ ✓ Managed UniFi Devices 100+ Managed UniFi Devices 100+ 100+ Managed Cameras (12) HD (7) 2K (4) 4K Managed Cameras (12) HD (7) 2K (4) 4K (12) HD (7) 2K (4) 4K Simultaneous Users Connected 300+ Simultaneous Users Connected 300+ 300+ Max. WAN Port Count 8 Max. WAN Port Count 8 8 Default WAN Ports (1) 2.5 GbE RJ45 (1) 10G SFP+ Default WAN Ports (1) 2.5 GbE RJ45 (1) 10G SFP+ (1) 2.5 GbE RJ45 (1) 10G SFP+ Port Layout Port Layout 1 GbE RJ45 17 (4 PoE++; 4 PoE+; 4 PoE (1G/100M/10M) 1 GbE RJ45 17 (4 PoE++; 4 PoE+; 4 PoE (1G/100M/10M) 17 (4 PoE++; 4 PoE+; 4 PoE (1G/100M/10M) 2.5 GbE RJ45 1 (2.5G/1G/100M) 2.5 GbE RJ45 1 (2.5G/1G/100M) 1 (2.5G/1G/100M) 10G SFP+ 2 (10G/1G) 10G SFP+ 2 (10G/1G) 2 (10G/1G) IDS/IPS Throughput 3.5 Gbps IDS/IPS Throughput 3.5 Gbps 3.5 Gbps Form Factor Wall-mounted Form Factor Wall-mounted Wall-mounted Redundancy (2) Hot-Swappable PSUs Redundancy (2) Hot-Swappable PSUs (2) Hot-Swappable PSUs Coverage Area 140 m² (1,500 ft²) Coverage Area 140 m² (1,500 ft²) 140 m² (1,500 ft²) Security Stateful Firewall ✓ Application-Aware Layer 7 Firewall ✓ DPI & Traffic Identification ✓ Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) ✓ Content Filtering ✓ Intrusion Prevention (IPS/IDS) ✓ Ad Blocking ✓ IDS/IPS Signatures 55,000+ with CyberSecure VLAN/Subnet-based Traffic Segmentation ✓ Stateful Firewall ✓ Application-Aware Layer 7 Firewall ✓ DPI & Traffic Identification ✓ Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) ✓ Content Filtering ✓ Intrusion Prevention (IPS/IDS) ✓ Ad Blocking ✓ IDS/IPS Signatures 55,000+ with CyberSecure VLAN/Subnet-based Traffic Segmentation ✓ Stateful Firewall ✓ Application-Aware Layer 7 Firewall ✓ DPI & Traffic Identification ✓ Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) ✓ Content Filtering ✓ Intrusion Prevention (IPS/IDS) ✓ Ad Blocking ✓ IDS/IPS Signatures 55,000+ with CyberSecure VLAN/Subnet-based Traffic Segmentation ✓ Stateful Firewall ✓ Stateful Firewall ✓ ✓ Application-Aware Layer 7 Firewall ✓ Application-Aware Layer 7 Firewall ✓ ✓ DPI & Traffic Identification ✓ DPI & Traffic Identification ✓ ✓ Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) ✓ Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) ✓ ✓ Content Filtering ✓ Content Filtering ✓ ✓ Intrusion Prevention (IPS/IDS) ✓ Intrusion Prevention (IPS/IDS) ✓ ✓ Ad Blocking ✓ Ad Blocking ✓ ✓ IDS/IPS Signatures 55,000+ with CyberSecure IDS/IPS Signatures 55,000+ with CyberSecure 55,000+ with CyberSecure VLAN/Subnet-based Traffic Segmentation ✓ VLAN/Subnet-based Traffic Segmentation ✓ ✓ VPN & SD-WAN License-Free SD-WAN ✓ Site-to-Site VPN Site Magic ✓ IPsec ✓ OpenVPN ✓ VPN Server Identity Endpoint One-Click VPN ✓ Teleport Zero-Configuration VPN ✓ WireGuard ✓ OpenVPN ✓ L2TP ✓ VPN Client OpenVPN ✓ WireGuard ✓ License-Free SD-WAN ✓ Site-to-Site VPN Site Magic ✓ IPsec ✓ OpenVPN ✓ VPN Server Identity Endpoint One-Click VPN ✓ Teleport Zero-Configuration VPN ✓ WireGuard ✓ OpenVPN ✓ L2TP ✓ VPN Client OpenVPN ✓ WireGuard ✓ License-Free SD-WAN ✓ Site-to-Site VPN Site Magic ✓ IPsec ✓ OpenVPN ✓ VPN Server Identity Endpoint One-Click VPN ✓ Teleport Zero-Configuration VPN ✓ WireGuard ✓ OpenVPN ✓ L2TP ✓ VPN Client OpenVPN ✓ WireGuard ✓ License-Free SD-WAN ✓ License-Free SD-WAN ✓ ✓ Site-to-Site VPN Site-to-Site VPN Site Magic ✓ Site Magic ✓ ✓ IPsec ✓ IPsec ✓ ✓ OpenVPN ✓ OpenVPN ✓ ✓ VPN Server VPN Server Identity Endpoint One-Click VPN ✓ Identity Endpoint One-Click VPN ✓ ✓ Teleport Zero-Configuration VPN ✓ Teleport Zero-Configuration VPN ✓ ✓ WireGuard ✓ WireGuard ✓ ✓ OpenVPN ✓ OpenVPN ✓ ✓ L2TP ✓ L2TP ✓ ✓ VPN Client VPN Client OpenVPN ✓ OpenVPN ✓ ✓ WireGuard ✓ WireGuard ✓ ✓ Networking Multi-WAN Load Balancing ✓ Dynamic Routing OSPF ✓ BGP ✓ Advanced QoS ✓ Multicast DNS (mDNS) ✓ Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓ Integrated RADIUS Server ✓ RADIUS over TLS (RadSec) ✓ Additional Internet Failover with UniFi LTE Backup ✓ Internet Quality and Outage Reporting ✓ MAC Address Table Size 8,000 Policy-based WAN and VPN Routing ✓ Customizable DHCP Server ✓ IPv6 ISP Support ✓ IGMP Proxy ✓ Virtual Network Override ✓ All Traffic Flows ✓ Multi-WAN Load Balancing ✓ Dynamic Routing OSPF ✓ BGP ✓ Advanced QoS ✓ Multicast DNS (mDNS) ✓ Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓ Integrated RADIUS Server ✓ RADIUS over TLS (RadSec) ✓ Additional Internet Failover with UniFi LTE Backup ✓ Internet Quality and Outage Reporting ✓ MAC Address Table Size 8,000 Policy-based WAN and VPN Routing ✓ Customizable DHCP Server ✓ IPv6 ISP Support ✓ IGMP Proxy ✓ Virtual Network Override ✓ All Traffic Flows ✓ Multi-WAN Load Balancing ✓ Dynamic Routing OSPF ✓ BGP ✓ Advanced QoS ✓ Multicast DNS (mDNS) ✓ Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓ Integrated RADIUS Server ✓ RADIUS over TLS (RadSec) ✓ Additional Internet Failover with UniFi LTE Backup ✓ Internet Quality and Outage Reporting ✓ MAC Address Table Size 8,000 Policy-based WAN and VPN Routing ✓ Customizable DHCP Server ✓ IPv6 ISP Support ✓ IGMP Proxy ✓ Virtual Network Override ✓ All Traffic Flows ✓ Multi-WAN Load Balancing ✓ Multi-WAN Load Balancing ✓ ✓ Dynamic Routing Dynamic Routing OSPF ✓ OSPF ✓ ✓ BGP ✓ BGP ✓ ✓ Advanced QoS ✓ Advanced QoS ✓ ✓ Multicast DNS (mDNS) ✓ Multicast DNS (mDNS) ✓ ✓ Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓ Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓ ✓ Integrated RADIUS Server ✓ Integrated RADIUS Server ✓ ✓ RADIUS over TLS (RadSec) ✓ RADIUS over TLS (RadSec) ✓ ✓ Additional Internet Failover with UniFi LTE Backup ✓ Additional Internet Failover with UniFi LTE Backup ✓ ✓ Internet Quality and Outage Reporting ✓ Internet Quality and Outage Reporting ✓ ✓ MAC Address Table Size 8,000 MAC Address Table Size 8,000 8,000 Policy-based WAN and VPN Routing ✓ Policy-based WAN and VPN Routing ✓ ✓ Customizable DHCP Server ✓ Customizable DHCP Server ✓ ✓ IPv6 ISP Support ✓ IPv6 ISP Support ✓ ✓ IGMP Proxy ✓ IGMP Proxy ✓ ✓ Virtual Network Override ✓ Virtual Network Override ✓ ✓ All Traffic Flows ✓ All Traffic Flows ✓ ✓ Integrated WiFi WiFi Standard 802.11a/b/g/n/ac/ax (WiFi 6) Throughput 5 GHz 2.4 Gbps 2.4 GHz 300 Mbps MIMO 5 GHz 4 x 4 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) Antenna Gain 5 GHz 6 dBi 2.4 GHz 5.9 dBi Max. TX Power 5 GHz 26 dBm 2.4 GHz 23 dBm Wireless Security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) Max. BSSIDs 8 per Radio Supported Data Rates 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps WiFi Standard 802.11a/b/g/n/ac/ax (WiFi 6) Throughput 5 GHz 2.4 Gbps 2.4 GHz 300 Mbps MIMO 5 GHz 4 x 4 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) Antenna Gain 5 GHz 6 dBi 2.4 GHz 5.9 dBi Max. TX Power 5 GHz 26 dBm 2.4 GHz 23 dBm Wireless Security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) Max. BSSIDs 8 per Radio Supported Data Rates 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps WiFi Standard 802.11a/b/g/n/ac/ax (WiFi 6) Throughput 5 GHz 2.4 Gbps 2.4 GHz 300 Mbps MIMO 5 GHz 4 x 4 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) Antenna Gain 5 GHz 6 dBi 2.4 GHz 5.9 dBi Max. TX Power 5 GHz 26 dBm 2.4 GHz 23 dBm Wireless Security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) Max. BSSIDs 8 per Radio Supported Data Rates 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps WiFi Standard 802.11a/b/g/n/ac/ax (WiFi 6) WiFi Standard 802.11a/b/g/n/ac/ax (WiFi 6) 802.11a/b/g/n/ac/ax (WiFi 6) Throughput Throughput 5 GHz 2.4 Gbps 5 GHz 2.4 Gbps 2.4 Gbps 2.4 GHz 300 Mbps 2.4 GHz 300 Mbps 300 Mbps MIMO MIMO 5 GHz 4 x 4 (DL/UL MU-MIMO) 5 GHz 4 x 4 (DL/UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) Antenna Gain Antenna Gain 5 GHz 6 dBi 5 GHz 6 dBi 6 dBi 2.4 GHz 5.9 dBi 2.4 GHz 5.9 dBi 5.9 dBi Max. TX Power Max. TX Power 5 GHz 26 dBm 5 GHz 26 dBm 26 dBm 2.4 GHz 23 dBm 2.4 GHz 23 dBm 23 dBm Wireless Security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) Wireless Security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) Max. BSSIDs 8 per Radio Max. BSSIDs 8 per Radio 8 per Radio Supported Data Rates Supported Data Rates 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) 802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11b 1, 2, 5.5, 11 Mbps 1, 2, 5.5, 11 Mbps 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 6, 9, 12, 18, 24, 36, 48, 54 Mbps Hardware NVR Storage Pre-installed 512 GB microSD for NVR Built-in 128 GB SSD for detection recordings Expansion Slot MicroSD Card PoE Budget 420W Max. PoE Wattage per Port by PSE PoE 15.4W PoE+ 30W PoE++ 60W Voltage Range PoE Mode PoE: 44-57V PoE+/PoE++: 50-57V Max. Power Consumption 532W (Including PoE Output) Power Method Universal AC input 100—240V AC, 7A Max., 50/60Hz Power Supply (2) Hot-Swappable AC/DC 550W PSU (1) Pre-installed PSU Supported Voltage Range 100—240V AC Heat Dissipation 382 BTU/hr (Excluding PoE Output) Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz System Memory 4 GB On-board Storage 16 GB eMMC Integrated 128 GB SSD Pre-installed 512 GB microSD card Weight 8.6 kg (19 lb) Enclosure Material Polycarbonate, galvanized steel, aluminum alloy Mount Material Stainless steel LCM Display 4.7″ touchscreen Management Ethernet Bluetooth LEDs Ethernet ✓ SFP+ ✓ Button (1) Factory-reset ESD/EMP Protection Air: ± 8kV, contact: ± 4kV Ambient Operating Temperature -10 to 40° C (14 to 104° F) Ambient Operating Humidity 5 to 95% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 18314-23-08356 NVR Storage Pre-installed 512 GB microSD for NVR Built-in 128 GB SSD for detection recordings Expansion Slot MicroSD Card PoE Budget 420W Max. PoE Wattage per Port by PSE PoE 15.4W PoE+ 30W PoE++ 60W Voltage Range PoE Mode PoE: 44-57V PoE+/PoE++: 50-57V Max. Power Consumption 532W (Including PoE Output) Power Method Universal AC input 100—240V AC, 7A Max., 50/60Hz Power Supply (2) Hot-Swappable AC/DC 550W PSU (1) Pre-installed PSU Supported Voltage Range 100—240V AC Heat Dissipation 382 BTU/hr (Excluding PoE Output) Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz System Memory 4 GB On-board Storage 16 GB eMMC Integrated 128 GB SSD Pre-installed 512 GB microSD card Weight 8.6 kg (19 lb) Enclosure Material Polycarbonate, galvanized steel, aluminum alloy Mount Material Stainless steel LCM Display 4.7″ touchscreen Management Ethernet Bluetooth LEDs Ethernet ✓ SFP+ ✓ Button (1) Factory-reset ESD/EMP Protection Air: ± 8kV, contact: ± 4kV Ambient Operating Temperature -10 to 40° C (14 to 104° F) Ambient Operating Humidity 5 to 95% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 18314-23-08356 NVR Storage Pre-installed 512 GB microSD for NVR Built-in 128 GB SSD for detection recordings Expansion Slot MicroSD Card PoE Budget 420W Max. PoE Wattage per Port by PSE PoE 15.4W PoE+ 30W PoE++ 60W Voltage Range PoE Mode PoE: 44-57V PoE+/PoE++: 50-57V Max. Power Consumption 532W (Including PoE Output) Power Method Universal AC input 100—240V AC, 7A Max., 50/60Hz Power Supply (2) Hot-Swappable AC/DC 550W PSU (1) Pre-installed PSU Supported Voltage Range 100—240V AC Heat Dissipation 382 BTU/hr (Excluding PoE Output) Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz System Memory 4 GB On-board Storage 16 GB eMMC Integrated 128 GB SSD Pre-installed 512 GB microSD card Weight 8.6 kg (19 lb) Enclosure Material Polycarbonate, galvanized steel, aluminum alloy Mount Material Stainless steel LCM Display 4.7″ touchscreen Management Ethernet Bluetooth LEDs Ethernet ✓ SFP+ ✓ Button (1) Factory-reset ESD/EMP Protection Air: ± 8kV, contact: ± 4kV Ambient Operating Temperature -10 to 40° C (14 to 104° F) Ambient Operating Humidity 5 to 95% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 18314-23-08356 NVR Storage Pre-installed 512 GB microSD for NVR Built-in 128 GB SSD for detection recordings NVR Storage Pre-installed 512 GB microSD for NVR Built-in 128 GB SSD for detection recordings Pre-installed 512 GB microSD for NVR Built-in 128 GB SSD for detection recordings Expansion Slot MicroSD Card Expansion Slot MicroSD Card MicroSD Card PoE Budget 420W PoE Budget 420W 420W Max. PoE Wattage per Port by PSE Max. PoE Wattage per Port by PSE PoE 15.4W PoE 15.4W 15.4W PoE+ 30W PoE+ 30W 30W PoE++ 60W PoE++ 60W 60W Voltage Range PoE Mode PoE: 44-57V PoE+/PoE++: 50-57V Voltage Range PoE Mode PoE: 44-57V PoE+/PoE++: 50-57V PoE: 44-57V PoE+/PoE++: 50-57V Max. Power Consumption 532W (Including PoE Output) Max. Power Consumption 532W (Including PoE Output) 532W (Including PoE Output) Power Method Universal AC input 100—240V AC, 7A Max., 50/60Hz Power Method Universal AC input 100—240V AC, 7A Max., 50/60Hz Universal AC input 100—240V AC, 7A Max., 50/60Hz Power Supply (2) Hot-Swappable AC/DC 550W PSU (1) Pre-installed PSU Power Supply (2) Hot-Swappable AC/DC 550W PSU (1) Pre-installed PSU (2) Hot-Swappable AC/DC 550W PSU (1) Pre-installed PSU Supported Voltage Range 100—240V AC Supported Voltage Range 100—240V AC 100—240V AC Heat Dissipation 382 BTU/hr (Excluding PoE Output) Heat Dissipation 382 BTU/hr (Excluding PoE Output) 382 BTU/hr (Excluding PoE Output) Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz Quad-core ARM® Cortex®-A57 at 1.7 GHz System Memory 4 GB System Memory 4 GB 4 GB On-board Storage 16 GB eMMC Integrated 128 GB SSD Pre-installed 512 GB microSD card On-board Storage 16 GB eMMC Integrated 128 GB SSD Pre-installed 512 GB microSD card 16 GB eMMC Integrated 128 GB SSD Pre-installed 512 GB microSD card Weight 8.6 kg (19 lb) Weight 8.6 kg (19 lb) 8.6 kg (19 lb) Enclosure Material Polycarbonate, galvanized steel, aluminum alloy Enclosure Material Polycarbonate, galvanized steel, aluminum alloy Polycarbonate, galvanized steel, aluminum alloy Mount Material Stainless steel Mount Material Stainless steel Stainless steel LCM Display 4.7″ touchscreen LCM Display 4.7″ touchscreen 4.7″ touchscreen Management Ethernet Bluetooth Management Ethernet Bluetooth Ethernet Bluetooth LEDs LEDs Ethernet ✓ Ethernet ✓ ✓ SFP+ ✓ SFP+ ✓ ✓ Button (1) Factory-reset Button (1) Factory-reset (1) Factory-reset ESD/EMP Protection Air: ± 8kV, contact: ± 4kV ESD/EMP Protection Air: ± 8kV, contact: ± 4kV Air: ± 8kV, contact: ± 4kV Ambient Operating Temperature -10 to 40° C (14 to 104° F) Ambient Operating Temperature -10 to 40° C (14 to 104° F) -10 to 40° C (14 to 104° F) Ambient Operating Humidity 5 to 95% noncondensing Ambient Operating Humidity 5 to 95% noncondensing 5 to 95% noncondensing NDAA Compliant ✓ NDAA Compliant ✓ ✓ Certifications CE, FCC, IC, Anatel: 18314-23-08356 Certifications CE, FCC, IC, Anatel: 18314-23-08356 CE, FCC, IC, Anatel: 18314-23-08356 Software VLAN 802.1Q Guest Traffic Isolation ✓ VLAN 802.1Q Guest Traffic Isolation ✓ VLAN 802.1Q Guest Traffic Isolation ✓ VLAN 802.1Q VLAN 802.1Q 802.1Q Guest Traffic Isolation ✓ Guest Traffic Isolation ✓ ✓
