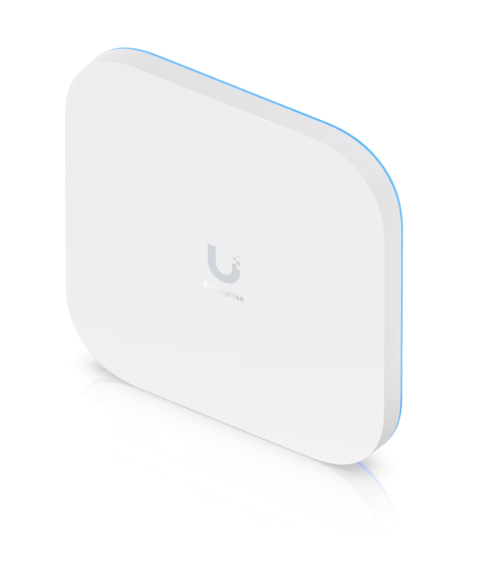

E7

Dimensions 250 x 250 x 43.5 mm (9.8 x 9.8 x 1.7″) WiFi Standard WiFi 7 Spatial Streams 10 Coverage Area 185 m² (2,000 ft²) Max. Client Count 1000+ Uplink 10 GbE 1 GbE Mounting Ceiling, Wall, VESA (Pro Mount Included) Power Method PoE++ Performance MIMO 6 GHz 4 x 4 (DL/UL MU-MIMO) 5 GHz 4 x 4 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) Max. Data Rate 6 GHz 11.5 Gbps (BW320) 5 GHz 8.6 Gbps (BW240) 2.4 GHz 688 Mbps (BW40) Antenna Gain 6 GHz 6 dBi 5 GHz 6 dBi 2.4 GHz 5 dBi Max. TX Power 6 GHz 24 dBm / 30 dBm 5 GHz 30 dBm 2.4 GHz 23 dBm Max. BSSIDs 8 per Radio Supported Data Rates 802.11be (WiFi 7) 7.3 Mbps to 11.4 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320) 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) Features Wireless Meshing ✓ Band Steering ✓ 802.11v BSS Transition Management ✓ 802.11r Fast Roaming ✓ 802.11k Radio Resource Management (RRM) ✓ Advanced Radio Management ✓ Real-Time Spectral Analysis ✓ Passpoint (Hotspot 2.0) ✓ Captive Hotspot Portal Custom Branding Landing Page ✓ Voucher Authentication ✓ Payment-Based Authentication ✓ External Portal Server Support ✓ Password Authentication ✓ Guest Network Isolation ✓ Private Pre-Shared Key (PPSK) ✓ WiFi Speed Limiting ✓ Client Device Isolation ✓ WiFi Schedules ✓ RADIUS over TLS (RadSec) ✓ Dynamic RADIUS-assigned VLAN ✓ Hardware Max. Power Consumption 43W Supported Voltage Range 42.5—57V DC Networking Interface (1) 10 GbE RJ45 port (1) 1 GbE RJ45 port Weight 1.8 kg (4 lb) Management Ethernet Enclosure Material UV-stabilized polycarbonate, aluminum alloy Mount Material Stainless steel (SUS304), galvanized steel (SGCC) LEDs System R/G/B Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 06372-24-08356 Operating Frequency US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz U-NII-5 to U-NII-8 : 5925 – 7125 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz 5925 – 7125 MHz Ambient Operating Temperature -30 to 50° C (-22 to 122° F) Ambient Operating Humidity 5 to 95% noncondensing Software Application Requirements UniFi Network Version 9.2.87 and later Mobile App iOS™ version 10.24.1 and later Android™ version 10.25.2 and later Dimensions 250 x 250 x 43.5 mm (9.8 x 9.8 x 1.7″) WiFi Standard WiFi 7 Spatial Streams 10 Coverage Area 185 m² (2,000 ft²) Max. Client Count 1000+ Uplink 10 GbE 1 GbE Mounting Ceiling, Wall, VESA (Pro Mount Included) Power Method PoE++ Dimensions 250 x 250 x 43.5 mm (9.8 x 9.8 x 1.7″) WiFi Standard WiFi 7 Spatial Streams 10 Coverage Area 185 m² (2,000 ft²) Max. Client Count 1000+ Uplink 10 GbE 1 GbE Mounting Ceiling, Wall, VESA (Pro Mount Included) Power Method PoE++ Dimensions 250 x 250 x 43.5 mm (9.8 x 9.8 x 1.7″) WiFi Standard WiFi 7 Spatial Streams 10 Coverage Area 185 m² (2,000 ft²) Max. Client Count 1000+ Uplink 10 GbE 1 GbE Mounting Ceiling, Wall, VESA (Pro Mount Included) Power Method PoE++ Dimensions 250 x 250 x 43.5 mm (9.8 x 9.8 x 1.7″) Dimensions 250 x 250 x 43.5 mm (9.8 x 9.8 x 1.7″) 250 x 250 x 43.5 mm (9.8 x 9.8 x 1.7″) WiFi Standard WiFi 7 WiFi Standard WiFi 7 WiFi 7 Spatial Streams 10 Spatial Streams 10 10 Coverage Area 185 m² (2,000 ft²) Coverage Area 185 m² (2,000 ft²) 185 m² (2,000 ft²) Max. Client Count 1000+ Max. Client Count 1000+ 1000+ Uplink 10 GbE 1 GbE Uplink 10 GbE 1 GbE 10 GbE 1 GbE Mounting Ceiling, Wall, VESA (Pro Mount Included) Mounting Ceiling, Wall, VESA (Pro Mount Included) Ceiling, Wall, VESA (Pro Mount Included) Power Method PoE++ Power Method PoE++ PoE++ Performance MIMO 6 GHz 4 x 4 (DL/UL MU-MIMO) 5 GHz 4 x 4 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) Max. Data Rate 6 GHz 11.5 Gbps (BW320) 5 GHz 8.6 Gbps (BW240) 2.4 GHz 688 Mbps (BW40) Antenna Gain 6 GHz 6 dBi 5 GHz 6 dBi 2.4 GHz 5 dBi Max. TX Power 6 GHz 24 dBm / 30 dBm 5 GHz 30 dBm 2.4 GHz 23 dBm Max. BSSIDs 8 per Radio Supported Data Rates 802.11be (WiFi 7) 7.3 Mbps to 11.4 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320) 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) MIMO 6 GHz 4 x 4 (DL/UL MU-MIMO) 5 GHz 4 x 4 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) Max. Data Rate 6 GHz 11.5 Gbps (BW320) 5 GHz 8.6 Gbps (BW240) 2.4 GHz 688 Mbps (BW40) Antenna Gain 6 GHz 6 dBi 5 GHz 6 dBi 2.4 GHz 5 dBi Max. TX Power 6 GHz 24 dBm / 30 dBm 5 GHz 30 dBm 2.4 GHz 23 dBm Max. BSSIDs 8 per Radio Supported Data Rates 802.11be (WiFi 7) 7.3 Mbps to 11.4 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320) 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) MIMO 6 GHz 4 x 4 (DL/UL MU-MIMO) 5 GHz 4 x 4 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) Max. Data Rate 6 GHz 11.5 Gbps (BW320) 5 GHz 8.6 Gbps (BW240) 2.4 GHz 688 Mbps (BW40) Antenna Gain 6 GHz 6 dBi 5 GHz 6 dBi 2.4 GHz 5 dBi Max. TX Power 6 GHz 24 dBm / 30 dBm 5 GHz 30 dBm 2.4 GHz 23 dBm Max. BSSIDs 8 per Radio Supported Data Rates 802.11be (WiFi 7) 7.3 Mbps to 11.4 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320) 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) MIMO MIMO 6 GHz 4 x 4 (DL/UL MU-MIMO) 6 GHz 4 x 4 (DL/UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) 5 GHz 4 x 4 (DL/UL MU-MIMO) 5 GHz 4 x 4 (DL/UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) Max. Data Rate Max. Data Rate 6 GHz 11.5 Gbps (BW320) 6 GHz 11.5 Gbps (BW320) 11.5 Gbps (BW320) 5 GHz 8.6 Gbps (BW240) 5 GHz 8.6 Gbps (BW240) 8.6 Gbps (BW240) 2.4 GHz 688 Mbps (BW40) 2.4 GHz 688 Mbps (BW40) 688 Mbps (BW40) Antenna Gain Antenna Gain 6 GHz 6 dBi 6 GHz 6 dBi 6 dBi 5 GHz 6 dBi 5 GHz 6 dBi 6 dBi 2.4 GHz 5 dBi 2.4 GHz 5 dBi 5 dBi Max. TX Power Max. TX Power 6 GHz 24 dBm / 30 dBm 6 GHz 24 dBm / 30 dBm 24 dBm / 30 dBm 5 GHz 30 dBm 5 GHz 30 dBm 30 dBm 2.4 GHz 23 dBm 2.4 GHz 23 dBm 23 dBm Max. BSSIDs 8 per Radio Max. BSSIDs 8 per Radio 8 per Radio Supported Data Rates Supported Data Rates 802.11be (WiFi 7) 7.3 Mbps to 11.4 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320) 802.11be (WiFi 7) 7.3 Mbps to 11.4 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320) 7.3 Mbps to 11.4 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320) 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) Features Wireless Meshing ✓ Band Steering ✓ 802.11v BSS Transition Management ✓ 802.11r Fast Roaming ✓ 802.11k Radio Resource Management (RRM) ✓ Advanced Radio Management ✓ Real-Time Spectral Analysis ✓ Passpoint (Hotspot 2.0) ✓ Captive Hotspot Portal Custom Branding Landing Page ✓ Voucher Authentication ✓ Payment-Based Authentication ✓ External Portal Server Support ✓ Password Authentication ✓ Guest Network Isolation ✓ Private Pre-Shared Key (PPSK) ✓ WiFi Speed Limiting ✓ Client Device Isolation ✓ WiFi Schedules ✓ RADIUS over TLS (RadSec) ✓ Dynamic RADIUS-assigned VLAN ✓ Wireless Meshing ✓ Band Steering ✓ 802.11v BSS Transition Management ✓ 802.11r Fast Roaming ✓ 802.11k Radio Resource Management (RRM) ✓ Advanced Radio Management ✓ Real-Time Spectral Analysis ✓ Passpoint (Hotspot 2.0) ✓ Captive Hotspot Portal Custom Branding Landing Page ✓ Voucher Authentication ✓ Payment-Based Authentication ✓ External Portal Server Support ✓ Password Authentication ✓ Guest Network Isolation ✓ Private Pre-Shared Key (PPSK) ✓ WiFi Speed Limiting ✓ Client Device Isolation ✓ WiFi Schedules ✓ RADIUS over TLS (RadSec) ✓ Dynamic RADIUS-assigned VLAN ✓ Wireless Meshing ✓ Band Steering ✓ 802.11v BSS Transition Management ✓ 802.11r Fast Roaming ✓ 802.11k Radio Resource Management (RRM) ✓ Advanced Radio Management ✓ Real-Time Spectral Analysis ✓ Passpoint (Hotspot 2.0) ✓ Captive Hotspot Portal Custom Branding Landing Page ✓ Voucher Authentication ✓ Payment-Based Authentication ✓ External Portal Server Support ✓ Password Authentication ✓ Guest Network Isolation ✓ Private Pre-Shared Key (PPSK) ✓ WiFi Speed Limiting ✓ Client Device Isolation ✓ WiFi Schedules ✓ RADIUS over TLS (RadSec) ✓ Dynamic RADIUS-assigned VLAN ✓ Wireless Meshing ✓ Wireless Meshing ✓ ✓ Band Steering ✓ Band Steering ✓ ✓ 802.11v BSS Transition Management ✓ 802.11v BSS Transition Management ✓ ✓ 802.11r Fast Roaming ✓ 802.11r Fast Roaming ✓ ✓ 802.11k Radio Resource Management (RRM) ✓ 802.11k Radio Resource Management (RRM) ✓ ✓ Advanced Radio Management ✓ Advanced Radio Management ✓ ✓ Real-Time Spectral Analysis ✓ Real-Time Spectral Analysis ✓ ✓ Passpoint (Hotspot 2.0) ✓ Passpoint (Hotspot 2.0) ✓ ✓ Captive Hotspot Portal Captive Hotspot Portal Custom Branding Landing Page ✓ Custom Branding Landing Page ✓ ✓ Voucher Authentication ✓ Voucher Authentication ✓ ✓ Payment-Based Authentication ✓ Payment-Based Authentication ✓ ✓ External Portal Server Support ✓ External Portal Server Support ✓ ✓ Password Authentication ✓ Password Authentication ✓ ✓ Guest Network Isolation ✓ Guest Network Isolation ✓ ✓ Private Pre-Shared Key (PPSK) ✓ Private Pre-Shared Key (PPSK) ✓ ✓ WiFi Speed Limiting ✓ WiFi Speed Limiting ✓ ✓ Client Device Isolation ✓ Client Device Isolation ✓ ✓ WiFi Schedules ✓ WiFi Schedules ✓ ✓ RADIUS over TLS (RadSec) ✓ RADIUS over TLS (RadSec) ✓ ✓ Dynamic RADIUS-assigned VLAN ✓ Dynamic RADIUS-assigned VLAN ✓ ✓ Hardware Max. Power Consumption 43W Supported Voltage Range 42.5—57V DC Networking Interface (1) 10 GbE RJ45 port (1) 1 GbE RJ45 port Weight 1.8 kg (4 lb) Management Ethernet Enclosure Material UV-stabilized polycarbonate, aluminum alloy Mount Material Stainless steel (SUS304), galvanized steel (SGCC) LEDs System R/G/B Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 06372-24-08356 Operating Frequency US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz U-NII-5 to U-NII-8 : 5925 – 7125 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz 5925 – 7125 MHz Ambient Operating Temperature -30 to 50° C (-22 to 122° F) Ambient Operating Humidity 5 to 95% noncondensing Max. Power Consumption 43W Supported Voltage Range 42.5—57V DC Networking Interface (1) 10 GbE RJ45 port (1) 1 GbE RJ45 port Weight 1.8 kg (4 lb) Management Ethernet Enclosure Material UV-stabilized polycarbonate, aluminum alloy Mount Material Stainless steel (SUS304), galvanized steel (SGCC) LEDs System R/G/B Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 06372-24-08356 Operating Frequency US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz U-NII-5 to U-NII-8 : 5925 – 7125 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz 5925 – 7125 MHz Ambient Operating Temperature -30 to 50° C (-22 to 122° F) Ambient Operating Humidity 5 to 95% noncondensing Max. Power Consumption 43W Supported Voltage Range 42.5—57V DC Networking Interface (1) 10 GbE RJ45 port (1) 1 GbE RJ45 port Weight 1.8 kg (4 lb) Management Ethernet Enclosure Material UV-stabilized polycarbonate, aluminum alloy Mount Material Stainless steel (SUS304), galvanized steel (SGCC) LEDs System R/G/B Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 06372-24-08356 Operating Frequency US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz U-NII-5 to U-NII-8 : 5925 – 7125 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz 5925 – 7125 MHz Ambient Operating Temperature -30 to 50° C (-22 to 122° F) Ambient Operating Humidity 5 to 95% noncondensing Max. Power Consumption 43W Max. Power Consumption 43W 43W Supported Voltage Range 42.5—57V DC Supported Voltage Range 42.5—57V DC 42.5—57V DC Networking Interface (1) 10 GbE RJ45 port (1) 1 GbE RJ45 port Networking Interface (1) 10 GbE RJ45 port (1) 1 GbE RJ45 port (1) 10 GbE RJ45 port (1) 1 GbE RJ45 port Weight 1.8 kg (4 lb) Weight 1.8 kg (4 lb) 1.8 kg (4 lb) Management Ethernet Management Ethernet Ethernet Enclosure Material UV-stabilized polycarbonate, aluminum alloy Enclosure Material UV-stabilized polycarbonate, aluminum alloy UV-stabilized polycarbonate, aluminum alloy Mount Material Stainless steel (SUS304), galvanized steel (SGCC) Mount Material Stainless steel (SUS304), galvanized steel (SGCC) Stainless steel (SUS304), galvanized steel (SGCC) LEDs LEDs System R/G/B System R/G/B R/G/B Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) NDAA Compliant ✓ NDAA Compliant ✓ ✓ Certifications CE, FCC, IC, Anatel: 06372-24-08356 Certifications CE, FCC, IC, Anatel: 06372-24-08356 CE, FCC, IC, Anatel: 06372-24-08356 Operating Frequency US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz U-NII-5 to U-NII-8 : 5925 – 7125 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz 5925 – 7125 MHz Operating Frequency US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz U-NII-5 to U-NII-8 : 5925 – 7125 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz 5925 – 7125 MHz US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz U-NII-5 to U-NII-8 : 5925 – 7125 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz 5925 – 7125 MHz Ambient Operating Temperature -30 to 50° C (-22 to 122° F) Ambient Operating Temperature -30 to 50° C (-22 to 122° F) -30 to 50° C (-22 to 122° F) Ambient Operating Humidity 5 to 95% noncondensing Ambient Operating Humidity 5 to 95% noncondensing 5 to 95% noncondensing Software Application Requirements UniFi Network Version 9.2.87 and later Mobile App iOS™ version 10.24.1 and later Android™ version 10.25.2 and later Application Requirements UniFi Network Version 9.2.87 and later Mobile App iOS™ version 10.24.1 and later Android™ version 10.25.2 and later Application Requirements UniFi Network Version 9.2.87 and later Mobile App iOS™ version 10.24.1 and later Android™ version 10.25.2 and later Application Requirements Application Requirements UniFi Network Version 9.2.87 and later UniFi Network Version 9.2.87 and later Version 9.2.87 and later Mobile App iOS™ version 10.24.1 and later Android™ version 10.25.2 and later Mobile App iOS™ version 10.24.1 and later Android™ version 10.25.2 and later iOS™ version 10.24.1 and later Android™ version 10.25.2 and later
