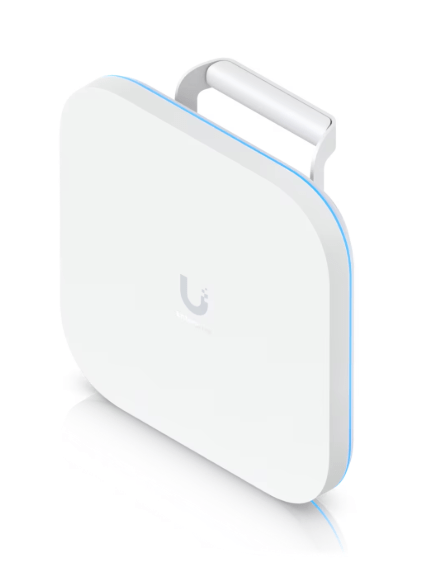

E7 Campus

Dimensions Device: 250 x 250 x 45.5 mm (9.8 x 9.8 x 1.8″) Articulating mount: Ø104 x 149.4 (Ø4.1 x 5.9″) WiFi Standard WiFi 7 Spatial Streams 10 Coverage Area 465 m² (5,000 ft²) Max. Client Count 1000+ Uplink 10 GbE 1 GbE Mounting Wall, Pole (Mounts Included) VESA (Optional) Weatherproofing IPX6 IP67 with Waterproof Door Kit (Included) Power Method PoE++ Performance MIMO 5 GHz Low Band: 4 x 4 (DL/UL MU-MIMO) High Band: 4 x 4 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) Max. Data Rate 5 GHz Low / High band: 8.6 Gbps (BW240) 2.4 GHz 688 Mbps (BW40) Antenna Gain 5 GHz Directional internal: 12 dBi, 100° x 55° 2.4 GHz Directional internal: 9 dBi, 90° x 80° Max. TX Power 5 GHz Low / High band: 30 dBm 2.4 GHz 23 dBm Max. BSSIDs 8 per Radio Supported Data Rates 802.11be (WiFi 7) 7.3 Mbps to 8.6 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) Features Wireless Meshing ✓ Band Steering ✓ 802.11v BSS Transition Management ✓ 802.11r Fast Roaming ✓ 802.11k Radio Resource Management (RRM) ✓ Zero-Wait DFS ✓ Advanced Radio Management ✓ Real-Time Spectral Analysis ✓ Passpoint (Hotspot 2.0) ✓ Captive Hotspot Portal Custom Branding Landing Page ✓ Voucher Authentication ✓ Payment-Based Authentication ✓ External Portal Server Support ✓ Password Authentication ✓ Guest Network Isolation ✓ Private Pre-Shared Key (PPSK) ✓ WiFi Speed Limiting ✓ Client Device Isolation ✓ WiFi Schedules ✓ RADIUS over TLS (RadSec) ✓ Dynamic RADIUS-assigned VLAN ✓ Hardware Max. Power Consumption 44W Supported Voltage Range 42.5—57V DC Networking Interface (1) 10 GbE RJ45 port (1) GbE RJ45 port PRISM™ RF Filtering ✓ Weight Device: 2.2 kg (4.9 lb) With articulating mount: 3.1 kg (6.8 lb) Wind Loading 164.75 N at 200 km/h (37 lbf at 125 mph) Pole Mount Diameter 1–2.5″ (25–63.5 mm) Antennas (1) Internal with directional patterns Antenna beamwidth 5 GHz 100° x 55° 2.4 GHz 90° x 80° Management Ethernet Enclosure Material UV-stabilized polycarbonate, aluminum alloy Mount Material Stainless steel, aluminum alloy LEDs System R/G/B Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) NDAA Compliant ✓ Certifications CE, Anatel: 02724-25-08356 Operating Frequency US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz U-NII-5 and U-NII-7: 5925 – 6425 MHz, 6525 – 6875 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz Ambient Operating Temperature -30 to 60° C (-22 to 140° F) Ambient Operating Humidity 5 to 95% noncondensing Software Application Requirements UniFi Network Version 9.0.114 and later Mobile App iOS™ version 10.20.0 and later Android™ version 10.21.3 and later Dimensions Device: 250 x 250 x 45.5 mm (9.8 x 9.8 x 1.8″) Articulating mount: Ø104 x 149.4 (Ø4.1 x 5.9″) WiFi Standard WiFi 7 Spatial Streams 10 Coverage Area 465 m² (5,000 ft²) Max. Client Count 1000+ Uplink 10 GbE 1 GbE Mounting Wall, Pole (Mounts Included) VESA (Optional) Weatherproofing IPX6 IP67 with Waterproof Door Kit (Included) Power Method PoE++ Dimensions Device: 250 x 250 x 45.5 mm (9.8 x 9.8 x 1.8″) Articulating mount: Ø104 x 149.4 (Ø4.1 x 5.9″) WiFi Standard WiFi 7 Spatial Streams 10 Coverage Area 465 m² (5,000 ft²) Max. Client Count 1000+ Uplink 10 GbE 1 GbE Mounting Wall, Pole (Mounts Included) VESA (Optional) Weatherproofing IPX6 IP67 with Waterproof Door Kit (Included) Power Method PoE++ Dimensions Device: 250 x 250 x 45.5 mm (9.8 x 9.8 x 1.8″) Articulating mount: Ø104 x 149.4 (Ø4.1 x 5.9″) WiFi Standard WiFi 7 Spatial Streams 10 Coverage Area 465 m² (5,000 ft²) Max. Client Count 1000+ Uplink 10 GbE 1 GbE Mounting Wall, Pole (Mounts Included) VESA (Optional) Weatherproofing IPX6 IP67 with Waterproof Door Kit (Included) Power Method PoE++ Dimensions Device: 250 x 250 x 45.5 mm (9.8 x 9.8 x 1.8″) Articulating mount: Ø104 x 149.4 (Ø4.1 x 5.9″) Dimensions Device: 250 x 250 x 45.5 mm (9.8 x 9.8 x 1.8″) Articulating mount: Ø104 x 149.4 (Ø4.1 x 5.9″) Device: 250 x 250 x 45.5 mm (9.8 x 9.8 x 1.8″) Articulating mount: Ø104 x 149.4 (Ø4.1 x 5.9″) WiFi Standard WiFi 7 WiFi Standard WiFi 7 WiFi 7 Spatial Streams 10 Spatial Streams 10 10 Coverage Area 465 m² (5,000 ft²) Coverage Area 465 m² (5,000 ft²) 465 m² (5,000 ft²) Max. Client Count 1000+ Max. Client Count 1000+ 1000+ Uplink 10 GbE 1 GbE Uplink 10 GbE 1 GbE 10 GbE 1 GbE Mounting Wall, Pole (Mounts Included) VESA (Optional) Mounting Wall, Pole (Mounts Included) VESA (Optional) Wall, Pole (Mounts Included) VESA (Optional) Weatherproofing IPX6 IP67 with Waterproof Door Kit (Included) Weatherproofing IPX6 IP67 with Waterproof Door Kit (Included) IPX6 IP67 with Waterproof Door Kit (Included) Power Method PoE++ Power Method PoE++ PoE++ Performance MIMO 5 GHz Low Band: 4 x 4 (DL/UL MU-MIMO) High Band: 4 x 4 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) Max. Data Rate 5 GHz Low / High band: 8.6 Gbps (BW240) 2.4 GHz 688 Mbps (BW40) Antenna Gain 5 GHz Directional internal: 12 dBi, 100° x 55° 2.4 GHz Directional internal: 9 dBi, 90° x 80° Max. TX Power 5 GHz Low / High band: 30 dBm 2.4 GHz 23 dBm Max. BSSIDs 8 per Radio Supported Data Rates 802.11be (WiFi 7) 7.3 Mbps to 8.6 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) MIMO 5 GHz Low Band: 4 x 4 (DL/UL MU-MIMO) High Band: 4 x 4 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) Max. Data Rate 5 GHz Low / High band: 8.6 Gbps (BW240) 2.4 GHz 688 Mbps (BW40) Antenna Gain 5 GHz Directional internal: 12 dBi, 100° x 55° 2.4 GHz Directional internal: 9 dBi, 90° x 80° Max. TX Power 5 GHz Low / High band: 30 dBm 2.4 GHz 23 dBm Max. BSSIDs 8 per Radio Supported Data Rates 802.11be (WiFi 7) 7.3 Mbps to 8.6 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) MIMO 5 GHz Low Band: 4 x 4 (DL/UL MU-MIMO) High Band: 4 x 4 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) Max. Data Rate 5 GHz Low / High band: 8.6 Gbps (BW240) 2.4 GHz 688 Mbps (BW40) Antenna Gain 5 GHz Directional internal: 12 dBi, 100° x 55° 2.4 GHz Directional internal: 9 dBi, 90° x 80° Max. TX Power 5 GHz Low / High band: 30 dBm 2.4 GHz 23 dBm Max. BSSIDs 8 per Radio Supported Data Rates 802.11be (WiFi 7) 7.3 Mbps to 8.6 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) MIMO MIMO 5 GHz Low Band: 4 x 4 (DL/UL MU-MIMO) High Band: 4 x 4 (DL/UL MU-MIMO) 5 GHz Low Band: 4 x 4 (DL/UL MU-MIMO) High Band: 4 x 4 (DL/UL MU-MIMO) Low Band: 4 x 4 (DL/UL MU-MIMO) High Band: 4 x 4 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) Max. Data Rate Max. Data Rate 5 GHz Low / High band: 8.6 Gbps (BW240) 5 GHz Low / High band: 8.6 Gbps (BW240) Low / High band: 8.6 Gbps (BW240) 2.4 GHz 688 Mbps (BW40) 2.4 GHz 688 Mbps (BW40) 688 Mbps (BW40) Antenna Gain Antenna Gain 5 GHz Directional internal: 12 dBi, 100° x 55° 5 GHz Directional internal: 12 dBi, 100° x 55° Directional internal: 12 dBi, 100° x 55° 2.4 GHz Directional internal: 9 dBi, 90° x 80° 2.4 GHz Directional internal: 9 dBi, 90° x 80° Directional internal: 9 dBi, 90° x 80° Max. TX Power Max. TX Power 5 GHz Low / High band: 30 dBm 5 GHz Low / High band: 30 dBm Low / High band: 30 dBm 2.4 GHz 23 dBm 2.4 GHz 23 dBm 23 dBm Max. BSSIDs 8 per Radio Max. BSSIDs 8 per Radio 8 per Radio Supported Data Rates Supported Data Rates 802.11be (WiFi 7) 7.3 Mbps to 8.6 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 802.11be (WiFi 7) 7.3 Mbps to 8.6 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 7.3 Mbps to 8.6 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) Features Wireless Meshing ✓ Band Steering ✓ 802.11v BSS Transition Management ✓ 802.11r Fast Roaming ✓ 802.11k Radio Resource Management (RRM) ✓ Zero-Wait DFS ✓ Advanced Radio Management ✓ Real-Time Spectral Analysis ✓ Passpoint (Hotspot 2.0) ✓ Captive Hotspot Portal Custom Branding Landing Page ✓ Voucher Authentication ✓ Payment-Based Authentication ✓ External Portal Server Support ✓ Password Authentication ✓ Guest Network Isolation ✓ Private Pre-Shared Key (PPSK) ✓ WiFi Speed Limiting ✓ Client Device Isolation ✓ WiFi Schedules ✓ RADIUS over TLS (RadSec) ✓ Dynamic RADIUS-assigned VLAN ✓ Wireless Meshing ✓ Band Steering ✓ 802.11v BSS Transition Management ✓ 802.11r Fast Roaming ✓ 802.11k Radio Resource Management (RRM) ✓ Zero-Wait DFS ✓ Advanced Radio Management ✓ Real-Time Spectral Analysis ✓ Passpoint (Hotspot 2.0) ✓ Captive Hotspot Portal Custom Branding Landing Page ✓ Voucher Authentication ✓ Payment-Based Authentication ✓ External Portal Server Support ✓ Password Authentication ✓ Guest Network Isolation ✓ Private Pre-Shared Key (PPSK) ✓ WiFi Speed Limiting ✓ Client Device Isolation ✓ WiFi Schedules ✓ RADIUS over TLS (RadSec) ✓ Dynamic RADIUS-assigned VLAN ✓ Wireless Meshing ✓ Band Steering ✓ 802.11v BSS Transition Management ✓ 802.11r Fast Roaming ✓ 802.11k Radio Resource Management (RRM) ✓ Zero-Wait DFS ✓ Advanced Radio Management ✓ Real-Time Spectral Analysis ✓ Passpoint (Hotspot 2.0) ✓ Captive Hotspot Portal Custom Branding Landing Page ✓ Voucher Authentication ✓ Payment-Based Authentication ✓ External Portal Server Support ✓ Password Authentication ✓ Guest Network Isolation ✓ Private Pre-Shared Key (PPSK) ✓ WiFi Speed Limiting ✓ Client Device Isolation ✓ WiFi Schedules ✓ RADIUS over TLS (RadSec) ✓ Dynamic RADIUS-assigned VLAN ✓ Wireless Meshing ✓ Wireless Meshing ✓ ✓ Band Steering ✓ Band Steering ✓ ✓ 802.11v BSS Transition Management ✓ 802.11v BSS Transition Management ✓ ✓ 802.11r Fast Roaming ✓ 802.11r Fast Roaming ✓ ✓ 802.11k Radio Resource Management (RRM) ✓ 802.11k Radio Resource Management (RRM) ✓ ✓ Zero-Wait DFS ✓ Zero-Wait DFS ✓ ✓ Advanced Radio Management ✓ Advanced Radio Management ✓ ✓ Real-Time Spectral Analysis ✓ Real-Time Spectral Analysis ✓ ✓ Passpoint (Hotspot 2.0) ✓ Passpoint (Hotspot 2.0) ✓ ✓ Captive Hotspot Portal Captive Hotspot Portal Custom Branding Landing Page ✓ Custom Branding Landing Page ✓ ✓ Voucher Authentication ✓ Voucher Authentication ✓ ✓ Payment-Based Authentication ✓ Payment-Based Authentication ✓ ✓ External Portal Server Support ✓ External Portal Server Support ✓ ✓ Password Authentication ✓ Password Authentication ✓ ✓ Guest Network Isolation ✓ Guest Network Isolation ✓ ✓ Private Pre-Shared Key (PPSK) ✓ Private Pre-Shared Key (PPSK) ✓ ✓ WiFi Speed Limiting ✓ WiFi Speed Limiting ✓ ✓ Client Device Isolation ✓ Client Device Isolation ✓ ✓ WiFi Schedules ✓ WiFi Schedules ✓ ✓ RADIUS over TLS (RadSec) ✓ RADIUS over TLS (RadSec) ✓ ✓ Dynamic RADIUS-assigned VLAN ✓ Dynamic RADIUS-assigned VLAN ✓ ✓ Hardware Max. Power Consumption 44W Supported Voltage Range 42.5—57V DC Networking Interface (1) 10 GbE RJ45 port (1) GbE RJ45 port PRISM™ RF Filtering ✓ Weight Device: 2.2 kg (4.9 lb) With articulating mount: 3.1 kg (6.8 lb) Wind Loading 164.75 N at 200 km/h (37 lbf at 125 mph) Pole Mount Diameter 1–2.5″ (25–63.5 mm) Antennas (1) Internal with directional patterns Antenna beamwidth 5 GHz 100° x 55° 2.4 GHz 90° x 80° Management Ethernet Enclosure Material UV-stabilized polycarbonate, aluminum alloy Mount Material Stainless steel, aluminum alloy LEDs System R/G/B Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) NDAA Compliant ✓ Certifications CE, Anatel: 02724-25-08356 Operating Frequency US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz U-NII-5 and U-NII-7: 5925 – 6425 MHz, 6525 – 6875 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz Ambient Operating Temperature -30 to 60° C (-22 to 140° F) Ambient Operating Humidity 5 to 95% noncondensing Max. Power Consumption 44W Supported Voltage Range 42.5—57V DC Networking Interface (1) 10 GbE RJ45 port (1) GbE RJ45 port PRISM™ RF Filtering ✓ Weight Device: 2.2 kg (4.9 lb) With articulating mount: 3.1 kg (6.8 lb) Wind Loading 164.75 N at 200 km/h (37 lbf at 125 mph) Pole Mount Diameter 1–2.5″ (25–63.5 mm) Antennas (1) Internal with directional patterns Antenna beamwidth 5 GHz 100° x 55° 2.4 GHz 90° x 80° Management Ethernet Enclosure Material UV-stabilized polycarbonate, aluminum alloy Mount Material Stainless steel, aluminum alloy LEDs System R/G/B Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) NDAA Compliant ✓ Certifications CE, Anatel: 02724-25-08356 Operating Frequency US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz U-NII-5 and U-NII-7: 5925 – 6425 MHz, 6525 – 6875 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz Ambient Operating Temperature -30 to 60° C (-22 to 140° F) Ambient Operating Humidity 5 to 95% noncondensing Max. Power Consumption 44W Supported Voltage Range 42.5—57V DC Networking Interface (1) 10 GbE RJ45 port (1) GbE RJ45 port PRISM™ RF Filtering ✓ Weight Device: 2.2 kg (4.9 lb) With articulating mount: 3.1 kg (6.8 lb) Wind Loading 164.75 N at 200 km/h (37 lbf at 125 mph) Pole Mount Diameter 1–2.5″ (25–63.5 mm) Antennas (1) Internal with directional patterns Antenna beamwidth 5 GHz 100° x 55° 2.4 GHz 90° x 80° Management Ethernet Enclosure Material UV-stabilized polycarbonate, aluminum alloy Mount Material Stainless steel, aluminum alloy LEDs System R/G/B Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) NDAA Compliant ✓ Certifications CE, Anatel: 02724-25-08356 Operating Frequency US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz U-NII-5 and U-NII-7: 5925 – 6425 MHz, 6525 – 6875 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz Ambient Operating Temperature -30 to 60° C (-22 to 140° F) Ambient Operating Humidity 5 to 95% noncondensing Max. Power Consumption 44W Max. Power Consumption 44W 44W Supported Voltage Range 42.5—57V DC Supported Voltage Range 42.5—57V DC 42.5—57V DC Networking Interface (1) 10 GbE RJ45 port (1) GbE RJ45 port Networking Interface (1) 10 GbE RJ45 port (1) GbE RJ45 port (1) 10 GbE RJ45 port (1) GbE RJ45 port PRISM™ RF Filtering ✓ PRISM™ RF Filtering ✓ ✓ Weight Device: 2.2 kg (4.9 lb) With articulating mount: 3.1 kg (6.8 lb) Weight Device: 2.2 kg (4.9 lb) With articulating mount: 3.1 kg (6.8 lb) Device: 2.2 kg (4.9 lb) With articulating mount: 3.1 kg (6.8 lb) Wind Loading 164.75 N at 200 km/h (37 lbf at 125 mph) Wind Loading 164.75 N at 200 km/h (37 lbf at 125 mph) 164.75 N at 200 km/h (37 lbf at 125 mph) Pole Mount Diameter 1–2.5″ (25–63.5 mm) Pole Mount Diameter 1–2.5″ (25–63.5 mm) 1–2.5″ (25–63.5 mm) Antennas (1) Internal with directional patterns Antennas (1) Internal with directional patterns (1) Internal with directional patterns Antenna beamwidth Antenna beamwidth 5 GHz 100° x 55° 5 GHz 100° x 55° 100° x 55° 2.4 GHz 90° x 80° 2.4 GHz 90° x 80° 90° x 80° Management Ethernet Management Ethernet Ethernet Enclosure Material UV-stabilized polycarbonate, aluminum alloy Enclosure Material UV-stabilized polycarbonate, aluminum alloy UV-stabilized polycarbonate, aluminum alloy Mount Material Stainless steel, aluminum alloy Mount Material Stainless steel, aluminum alloy Stainless steel, aluminum alloy LEDs LEDs System R/G/B System R/G/B R/G/B Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) NDAA Compliant ✓ NDAA Compliant ✓ ✓ Certifications CE, Anatel: 02724-25-08356 Certifications CE, Anatel: 02724-25-08356 CE, Anatel: 02724-25-08356 Operating Frequency US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz U-NII-5 and U-NII-7: 5925 – 6425 MHz, 6525 – 6875 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz Operating Frequency US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz U-NII-5 and U-NII-7: 5925 – 6425 MHz, 6525 – 6875 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz U-NII-5 and U-NII-7: 5925 – 6425 MHz, 6525 – 6875 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz Ambient Operating Temperature -30 to 60° C (-22 to 140° F) Ambient Operating Temperature -30 to 60° C (-22 to 140° F) -30 to 60° C (-22 to 140° F) Ambient Operating Humidity 5 to 95% noncondensing Ambient Operating Humidity 5 to 95% noncondensing 5 to 95% noncondensing Software Application Requirements UniFi Network Version 9.0.114 and later Mobile App iOS™ version 10.20.0 and later Android™ version 10.21.3 and later Application Requirements UniFi Network Version 9.0.114 and later Mobile App iOS™ version 10.20.0 and later Android™ version 10.21.3 and later Application Requirements UniFi Network Version 9.0.114 and later Mobile App iOS™ version 10.20.0 and later Android™ version 10.21.3 and later Application Requirements Application Requirements UniFi Network Version 9.0.114 and later UniFi Network Version 9.0.114 and later Version 9.0.114 and later Mobile App iOS™ version 10.20.0 and later Android™ version 10.21.3 and later Mobile App iOS™ version 10.20.0 and later Android™ version 10.21.3 and later iOS™ version 10.20.0 and later Android™ version 10.21.3 and later
