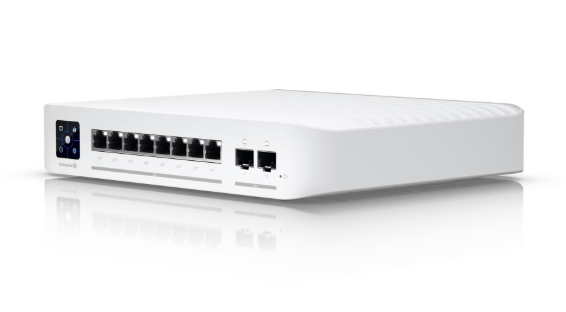

Enterprise 8 PoE (Vintage)

Dimensions 200 x 248 x 44 mm (7.9 x 9.8 x 1.7″) Port Layout 2.5 GbE RJ45 8 (All PoE+) (2.5G/1G/100M) 10G SFP+ 2 (10G/1G) Max. PoE Output Up to PoE+ Total PoE Availability 120W Layer 3 ✓ Form Factor Compact desktop Performance Switching Capacity 80 Gbps Total Non-Blocking Throughput 40 Gbps Forwarding Rate 60 Mpps Supported VLANs 1,000 MAC Address Table Size 16,000 L3 Table Size ARP Entries 512 IPv4 Routes 512 Packet Buffer Size 1.5 MB Access Lists IPv4 12 MAC 10 Layer 3 Features DHCP Server (Local Networks) ✓ Inter-VLAN Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ Layer 2 Features LACP Port Aggregation ✓ STP & RSTP ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ 802.1X Control ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ Storm Control ✓ Multicast & Broadcast Rate Limiting ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ Virtual Network Override ✓ Hardware PoE Ports PoE+ 8 Max. PoE Wattage per Port by PSE PoE+ 32W Max. Power Consumption 30W (Excluding PoE Output) 150W (Including PoE Output) Power Method Universal input, 100—240V AC, 50/60 Hz Power Input Method AC input Power Supply AC/DC, internal, 150W Supported Voltage Range 100—240V AC Management Ethernet AR Heat Dissipation 102.4 BTU/hr (Excluding PoE Output) Weight 2.4 kg (5.3 lb) Enclosure Material Polycarbonate Mount Material Polycarbonate Supported Rack Depth 400~1200 mm (15.7-47.2″) LCM Display 1.3″ touchscreen ESD Protection Air: ± 16kV, contact: ± 12kV Ambient Operating Temperature -5 to 45° C (23 to 113° F) Ambient Operating Humidity 10 to 90% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 06645-23-08356 Software Application Requirements UniFi Network Version 6.3.51 and later Dimensions 200 x 248 x 44 mm (7.9 x 9.8 x 1.7″) Port Layout 2.5 GbE RJ45 8 (All PoE+) (2.5G/1G/100M) 10G SFP+ 2 (10G/1G) Max. PoE Output Up to PoE+ Total PoE Availability 120W Layer 3 ✓ Form Factor Compact desktop Dimensions 200 x 248 x 44 mm (7.9 x 9.8 x 1.7″) Port Layout 2.5 GbE RJ45 8 (All PoE+) (2.5G/1G/100M) 10G SFP+ 2 (10G/1G) Max. PoE Output Up to PoE+ Total PoE Availability 120W Layer 3 ✓ Form Factor Compact desktop Dimensions 200 x 248 x 44 mm (7.9 x 9.8 x 1.7″) Port Layout 2.5 GbE RJ45 8 (All PoE+) (2.5G/1G/100M) 10G SFP+ 2 (10G/1G) Max. PoE Output Up to PoE+ Total PoE Availability 120W Layer 3 ✓ Form Factor Compact desktop Dimensions 200 x 248 x 44 mm (7.9 x 9.8 x 1.7″) Dimensions 200 x 248 x 44 mm (7.9 x 9.8 x 1.7″) 200 x 248 x 44 mm (7.9 x 9.8 x 1.7″) Port Layout Port Layout 2.5 GbE RJ45 8 (All PoE+) (2.5G/1G/100M) 2.5 GbE RJ45 8 (All PoE+) (2.5G/1G/100M) 8 (All PoE+) (2.5G/1G/100M) 10G SFP+ 2 (10G/1G) 10G SFP+ 2 (10G/1G) 2 (10G/1G) Max. PoE Output Up to PoE+ Max. PoE Output Up to PoE+ Up to PoE+ Total PoE Availability 120W Total PoE Availability 120W 120W Layer 3 ✓ Layer 3 ✓ ✓ Form Factor Compact desktop Form Factor Compact desktop Compact desktop Performance Switching Capacity 80 Gbps Total Non-Blocking Throughput 40 Gbps Forwarding Rate 60 Mpps Supported VLANs 1,000 MAC Address Table Size 16,000 L3 Table Size ARP Entries 512 IPv4 Routes 512 Packet Buffer Size 1.5 MB Access Lists IPv4 12 MAC 10 Switching Capacity 80 Gbps Total Non-Blocking Throughput 40 Gbps Forwarding Rate 60 Mpps Supported VLANs 1,000 MAC Address Table Size 16,000 L3 Table Size ARP Entries 512 IPv4 Routes 512 Packet Buffer Size 1.5 MB Access Lists IPv4 12 MAC 10 Switching Capacity 80 Gbps Total Non-Blocking Throughput 40 Gbps Forwarding Rate 60 Mpps Supported VLANs 1,000 MAC Address Table Size 16,000 L3 Table Size ARP Entries 512 IPv4 Routes 512 Packet Buffer Size 1.5 MB Access Lists IPv4 12 MAC 10 Switching Capacity 80 Gbps Switching Capacity 80 Gbps 80 Gbps Total Non-Blocking Throughput 40 Gbps Total Non-Blocking Throughput 40 Gbps 40 Gbps Forwarding Rate 60 Mpps Forwarding Rate 60 Mpps 60 Mpps Supported VLANs 1,000 Supported VLANs 1,000 1,000 MAC Address Table Size 16,000 MAC Address Table Size 16,000 16,000 L3 Table Size L3 Table Size ARP Entries 512 ARP Entries 512 512 IPv4 Routes 512 IPv4 Routes 512 512 Packet Buffer Size 1.5 MB Packet Buffer Size 1.5 MB 1.5 MB Access Lists Access Lists IPv4 12 IPv4 12 12 MAC 10 MAC 10 10 Layer 3 Features DHCP Server (Local Networks) ✓ Inter-VLAN Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ DHCP Server (Local Networks) ✓ Inter-VLAN Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ DHCP Server (Local Networks) ✓ Inter-VLAN Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ DHCP Server (Local Networks) ✓ DHCP Server (Local Networks) ✓ ✓ Inter-VLAN Routing (Local Networks) ✓ Inter-VLAN Routing (Local Networks) ✓ ✓ Static Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ ✓ Layer 2 Features LACP Port Aggregation ✓ STP & RSTP ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ 802.1X Control ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ Storm Control ✓ Multicast & Broadcast Rate Limiting ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ Virtual Network Override ✓ LACP Port Aggregation ✓ STP & RSTP ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ 802.1X Control ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ Storm Control ✓ Multicast & Broadcast Rate Limiting ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ Virtual Network Override ✓ LACP Port Aggregation ✓ STP & RSTP ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ 802.1X Control ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ Storm Control ✓ Multicast & Broadcast Rate Limiting ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ Virtual Network Override ✓ LACP Port Aggregation ✓ LACP Port Aggregation ✓ ✓ STP & RSTP ✓ STP & RSTP ✓ ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ ✓ IGMP Snooping ✓ IGMP Snooping ✓ ✓ 802.1X Control ✓ 802.1X Control ✓ ✓ MAC-Based ACLs & Device Isolation ✓ MAC-Based ACLs & Device Isolation ✓ ✓ DHCP Snooping & Guarding ✓ DHCP Snooping & Guarding ✓ ✓ Egress Rate Limit ✓ Egress Rate Limit ✓ ✓ Flow Control ✓ Flow Control ✓ ✓ Storm Control ✓ Storm Control ✓ ✓ Multicast & Broadcast Rate Limiting ✓ Multicast & Broadcast Rate Limiting ✓ ✓ MAC Address Blocking ✓ MAC Address Blocking ✓ ✓ IP-Based ACLs & Network Isolation ✓ IP-Based ACLs & Network Isolation ✓ ✓ MAC-Based Port Restriction ✓ MAC-Based Port Restriction ✓ ✓ Port Isolation ✓ Port Isolation ✓ ✓ Port Mirroring ✓ Port Mirroring ✓ ✓ Jumbo Frames ✓ Jumbo Frames ✓ ✓ LLDP-MED ✓ LLDP-MED ✓ ✓ Voice VLAN ✓ Voice VLAN ✓ ✓ Loop Protection ✓ Loop Protection ✓ ✓ Virtual Network Override ✓ Virtual Network Override ✓ ✓ Hardware PoE Ports PoE+ 8 Max. PoE Wattage per Port by PSE PoE+ 32W Max. Power Consumption 30W (Excluding PoE Output) 150W (Including PoE Output) Power Method Universal input, 100—240V AC, 50/60 Hz Power Input Method AC input Power Supply AC/DC, internal, 150W Supported Voltage Range 100—240V AC Management Ethernet AR Heat Dissipation 102.4 BTU/hr (Excluding PoE Output) Weight 2.4 kg (5.3 lb) Enclosure Material Polycarbonate Mount Material Polycarbonate Supported Rack Depth 400~1200 mm (15.7-47.2″) LCM Display 1.3″ touchscreen ESD Protection Air: ± 16kV, contact: ± 12kV Ambient Operating Temperature -5 to 45° C (23 to 113° F) Ambient Operating Humidity 10 to 90% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 06645-23-08356 PoE Ports PoE+ 8 Max. PoE Wattage per Port by PSE PoE+ 32W Max. Power Consumption 30W (Excluding PoE Output) 150W (Including PoE Output) Power Method Universal input, 100—240V AC, 50/60 Hz Power Input Method AC input Power Supply AC/DC, internal, 150W Supported Voltage Range 100—240V AC Management Ethernet AR Heat Dissipation 102.4 BTU/hr (Excluding PoE Output) Weight 2.4 kg (5.3 lb) Enclosure Material Polycarbonate Mount Material Polycarbonate Supported Rack Depth 400~1200 mm (15.7-47.2″) LCM Display 1.3″ touchscreen ESD Protection Air: ± 16kV, contact: ± 12kV Ambient Operating Temperature -5 to 45° C (23 to 113° F) Ambient Operating Humidity 10 to 90% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 06645-23-08356 PoE Ports PoE+ 8 Max. PoE Wattage per Port by PSE PoE+ 32W Max. Power Consumption 30W (Excluding PoE Output) 150W (Including PoE Output) Power Method Universal input, 100—240V AC, 50/60 Hz Power Input Method AC input Power Supply AC/DC, internal, 150W Supported Voltage Range 100—240V AC Management Ethernet AR Heat Dissipation 102.4 BTU/hr (Excluding PoE Output) Weight 2.4 kg (5.3 lb) Enclosure Material Polycarbonate Mount Material Polycarbonate Supported Rack Depth 400~1200 mm (15.7-47.2″) LCM Display 1.3″ touchscreen ESD Protection Air: ± 16kV, contact: ± 12kV Ambient Operating Temperature -5 to 45° C (23 to 113° F) Ambient Operating Humidity 10 to 90% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 06645-23-08356 PoE Ports PoE Ports PoE+ 8 PoE+ 8 8 Max. PoE Wattage per Port by PSE Max. PoE Wattage per Port by PSE PoE+ 32W PoE+ 32W 32W Max. Power Consumption 30W (Excluding PoE Output) 150W (Including PoE Output) Max. Power Consumption 30W (Excluding PoE Output) 150W (Including PoE Output) 30W (Excluding PoE Output) 150W (Including PoE Output) Power Method Universal input, 100—240V AC, 50/60 Hz Power Method Universal input, 100—240V AC, 50/60 Hz Universal input, 100—240V AC, 50/60 Hz Power Input Method AC input Power Input Method AC input AC input Power Supply AC/DC, internal, 150W Power Supply AC/DC, internal, 150W AC/DC, internal, 150W Supported Voltage Range 100—240V AC Supported Voltage Range 100—240V AC 100—240V AC Management Ethernet AR Management Ethernet AR Ethernet AR Heat Dissipation 102.4 BTU/hr (Excluding PoE Output) Heat Dissipation 102.4 BTU/hr (Excluding PoE Output) 102.4 BTU/hr (Excluding PoE Output) Weight 2.4 kg (5.3 lb) Weight 2.4 kg (5.3 lb) 2.4 kg (5.3 lb) Enclosure Material Polycarbonate Enclosure Material Polycarbonate Polycarbonate Mount Material Polycarbonate Mount Material Polycarbonate Polycarbonate Supported Rack Depth 400~1200 mm (15.7-47.2″) Supported Rack Depth 400~1200 mm (15.7-47.2″) 400~1200 mm (15.7-47.2″) LCM Display 1.3″ touchscreen LCM Display 1.3″ touchscreen 1.3″ touchscreen ESD Protection Air: ± 16kV, contact: ± 12kV ESD Protection Air: ± 16kV, contact: ± 12kV Air: ± 16kV, contact: ± 12kV Ambient Operating Temperature -5 to 45° C (23 to 113° F) Ambient Operating Temperature -5 to 45° C (23 to 113° F) -5 to 45° C (23 to 113° F) Ambient Operating Humidity 10 to 90% noncondensing Ambient Operating Humidity 10 to 90% noncondensing 10 to 90% noncondensing NDAA Compliant ✓ NDAA Compliant ✓ ✓ Certifications CE, FCC, IC, Anatel: 06645-23-08356 Certifications CE, FCC, IC, Anatel: 06645-23-08356 CE, FCC, IC, Anatel: 06645-23-08356 Software Application Requirements UniFi Network Version 6.3.51 and later Application Requirements UniFi Network Version 6.3.51 and later Application Requirements UniFi Network Version 6.3.51 and later Application Requirements Application Requirements UniFi Network Version 6.3.51 and later UniFi Network Version 6.3.51 and later Version 6.3.51 and later
