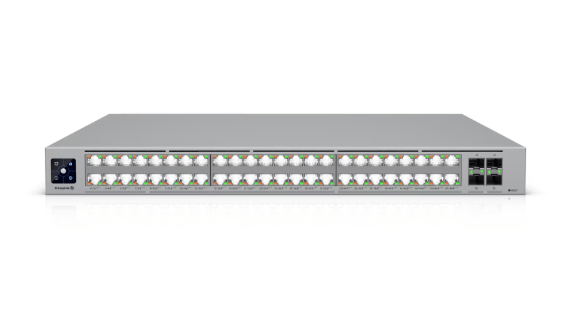

Enterprise Campus 48 PoE

Dimensions 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5″) Port Layout 2.5 GbE RJ45 16 (All PoE+++) (2.5G/1G/100M/10M) 10 GbE RJ45 32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M) 25G SFP28 4 (25G/10G/1G) Max. PoE Output Up to PoE+++ Total PoE Availability 200-240V AC Shared Mode: 2,150W 100-120V AC Shared Mode: 1,750W 200-240V AC Redundant Mode: 950W 100-120V AC Redundant Mode: 750W Redundancy (2) Hot-Swappable PSUs (4) Hot-Swappable Fans Layer 3 ✓ Form Factor Rack Mount (1U, Full-Depth) Etherlighting™ ✓ Performance Switching Capacity 920 Gbps Total Non-Blocking Throughput 460 Gbps Forwarding Rate 684 Mpps Supported VLANs 1,000 MAC Address Table Size 128,000 L3 Table Size ARP Entries 128,000 IPv4 Routes 256,000 Packet Buffer Size 8 MB Access Lists IPv4 256 MAC 256 Layer 3 Features DHCP Server (Local Networks) ✓ DHCP Relay ✓ Inter-VLAN Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ Layer 2 Features LACP Port Aggregation ✓ STP & RSTP ✓ QoS (DSCP) ✓ Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ 802.1X Control ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ Storm Control ✓ Multicast & Broadcast Rate Limiting ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ Virtual Network Override ✓ Hardware PoE Ports PoE+++ 48 Max. PoE Wattage per Port by PSE PoE 15.4W PoE+ 30W PoE++ 60W PoE+++ 90W Max. Power Consumption 250W (Excluding PoE Output) 2,400W (Including PoE Output) Power Method (2) Universal input, 100—240V AC, 50/60 Hz Power Input Method (2) AC input, Hot-swappable power modules Power Supply (2) Hot-swappable AC/DC 1,200W power modules Supported Voltage Range 100—240V AC Management Ethernet AR Heat Dissipation 785 BTU/hr (Excluding PoE Output) Weight Without mounting brackets: 9.46 kg (20.9 lb) With mounting brackets: 9.56 kg (21.1 lb) Enclosure Material SGCC steel Mount Material SGCC steel Supported Rack Depth 482.6 mm (19″) four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) LCM Display 1.3″ touchscreen Fan Method (4) hot-swappable fan modules ESD Protection Air: ± 30kV, contact: ± 19kV Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing Etherlighting™ Ethernet ✓ SFP28 ✓ LEDs Ethernet ✓ System ✓ NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 06181-25-08356 Software Application Requirements UniFi Network Version 9.0.114 and later Dimensions 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5″) Port Layout 2.5 GbE RJ45 16 (All PoE+++) (2.5G/1G/100M/10M) 10 GbE RJ45 32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M) 25G SFP28 4 (25G/10G/1G) Max. PoE Output Up to PoE+++ Total PoE Availability 200-240V AC Shared Mode: 2,150W 100-120V AC Shared Mode: 1,750W 200-240V AC Redundant Mode: 950W 100-120V AC Redundant Mode: 750W Redundancy (2) Hot-Swappable PSUs (4) Hot-Swappable Fans Layer 3 ✓ Form Factor Rack Mount (1U, Full-Depth) Etherlighting™ ✓ Dimensions 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5″) Port Layout 2.5 GbE RJ45 16 (All PoE+++) (2.5G/1G/100M/10M) 10 GbE RJ45 32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M) 25G SFP28 4 (25G/10G/1G) Max. PoE Output Up to PoE+++ Total PoE Availability 200-240V AC Shared Mode: 2,150W 100-120V AC Shared Mode: 1,750W 200-240V AC Redundant Mode: 950W 100-120V AC Redundant Mode: 750W Redundancy (2) Hot-Swappable PSUs (4) Hot-Swappable Fans Layer 3 ✓ Form Factor Rack Mount (1U, Full-Depth) Etherlighting™ ✓ Dimensions 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5″) Port Layout 2.5 GbE RJ45 16 (All PoE+++) (2.5G/1G/100M/10M) 10 GbE RJ45 32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M) 25G SFP28 4 (25G/10G/1G) Max. PoE Output Up to PoE+++ Total PoE Availability 200-240V AC Shared Mode: 2,150W 100-120V AC Shared Mode: 1,750W 200-240V AC Redundant Mode: 950W 100-120V AC Redundant Mode: 750W Redundancy (2) Hot-Swappable PSUs (4) Hot-Swappable Fans Layer 3 ✓ Form Factor Rack Mount (1U, Full-Depth) Etherlighting™ ✓ Dimensions 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5″) Dimensions 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5″) 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5″) Port Layout Port Layout 2.5 GbE RJ45 16 (All PoE+++) (2.5G/1G/100M/10M) 2.5 GbE RJ45 16 (All PoE+++) (2.5G/1G/100M/10M) 16 (All PoE+++) (2.5G/1G/100M/10M) 10 GbE RJ45 32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M) 10 GbE RJ45 32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M) 32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M) 25G SFP28 4 (25G/10G/1G) 25G SFP28 4 (25G/10G/1G) 4 (25G/10G/1G) Max. PoE Output Up to PoE+++ Max. PoE Output Up to PoE+++ Up to PoE+++ Total PoE Availability 200-240V AC Shared Mode: 2,150W 100-120V AC Shared Mode: 1,750W 200-240V AC Redundant Mode: 950W 100-120V AC Redundant Mode: 750W Total PoE Availability 200-240V AC Shared Mode: 2,150W 100-120V AC Shared Mode: 1,750W 200-240V AC Redundant Mode: 950W 100-120V AC Redundant Mode: 750W 200-240V AC Shared Mode: 2,150W 100-120V AC Shared Mode: 1,750W 200-240V AC Redundant Mode: 950W 100-120V AC Redundant Mode: 750W Redundancy (2) Hot-Swappable PSUs (4) Hot-Swappable Fans Redundancy (2) Hot-Swappable PSUs (4) Hot-Swappable Fans (2) Hot-Swappable PSUs (4) Hot-Swappable Fans Layer 3 ✓ Layer 3 ✓ ✓ Form Factor Rack Mount (1U, Full-Depth) Form Factor Rack Mount (1U, Full-Depth) Rack Mount (1U, Full-Depth) Etherlighting™ ✓ Etherlighting™ ✓ ✓ Performance Switching Capacity 920 Gbps Total Non-Blocking Throughput 460 Gbps Forwarding Rate 684 Mpps Supported VLANs 1,000 MAC Address Table Size 128,000 L3 Table Size ARP Entries 128,000 IPv4 Routes 256,000 Packet Buffer Size 8 MB Access Lists IPv4 256 MAC 256 Switching Capacity 920 Gbps Total Non-Blocking Throughput 460 Gbps Forwarding Rate 684 Mpps Supported VLANs 1,000 MAC Address Table Size 128,000 L3 Table Size ARP Entries 128,000 IPv4 Routes 256,000 Packet Buffer Size 8 MB Access Lists IPv4 256 MAC 256 Switching Capacity 920 Gbps Total Non-Blocking Throughput 460 Gbps Forwarding Rate 684 Mpps Supported VLANs 1,000 MAC Address Table Size 128,000 L3 Table Size ARP Entries 128,000 IPv4 Routes 256,000 Packet Buffer Size 8 MB Access Lists IPv4 256 MAC 256 Switching Capacity 920 Gbps Switching Capacity 920 Gbps 920 Gbps Total Non-Blocking Throughput 460 Gbps Total Non-Blocking Throughput 460 Gbps 460 Gbps Forwarding Rate 684 Mpps Forwarding Rate 684 Mpps 684 Mpps Supported VLANs 1,000 Supported VLANs 1,000 1,000 MAC Address Table Size 128,000 MAC Address Table Size 128,000 128,000 L3 Table Size L3 Table Size ARP Entries 128,000 ARP Entries 128,000 128,000 IPv4 Routes 256,000 IPv4 Routes 256,000 256,000 Packet Buffer Size 8 MB Packet Buffer Size 8 MB 8 MB Access Lists Access Lists IPv4 256 IPv4 256 256 MAC 256 MAC 256 256 Layer 3 Features DHCP Server (Local Networks) ✓ DHCP Relay ✓ Inter-VLAN Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ DHCP Server (Local Networks) ✓ DHCP Relay ✓ Inter-VLAN Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ DHCP Server (Local Networks) ✓ DHCP Relay ✓ Inter-VLAN Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ DHCP Server (Local Networks) ✓ DHCP Server (Local Networks) ✓ ✓ DHCP Relay ✓ DHCP Relay ✓ ✓ Inter-VLAN Routing (Local Networks) ✓ Inter-VLAN Routing (Local Networks) ✓ ✓ Static Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ ✓ Layer 2 Features LACP Port Aggregation ✓ STP & RSTP ✓ QoS (DSCP) ✓ Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ 802.1X Control ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ Storm Control ✓ Multicast & Broadcast Rate Limiting ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ Virtual Network Override ✓ LACP Port Aggregation ✓ STP & RSTP ✓ QoS (DSCP) ✓ Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ 802.1X Control ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ Storm Control ✓ Multicast & Broadcast Rate Limiting ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ Virtual Network Override ✓ LACP Port Aggregation ✓ STP & RSTP ✓ QoS (DSCP) ✓ Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ 802.1X Control ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ Storm Control ✓ Multicast & Broadcast Rate Limiting ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ Virtual Network Override ✓ LACP Port Aggregation ✓ LACP Port Aggregation ✓ ✓ STP & RSTP ✓ STP & RSTP ✓ ✓ QoS (DSCP) ✓ QoS (DSCP) ✓ ✓ Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) ✓ Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) ✓ ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ ✓ IGMP Snooping ✓ IGMP Snooping ✓ ✓ 802.1X Control ✓ 802.1X Control ✓ ✓ MAC-Based ACLs & Device Isolation ✓ MAC-Based ACLs & Device Isolation ✓ ✓ DHCP Snooping & Guarding ✓ DHCP Snooping & Guarding ✓ ✓ Egress Rate Limit ✓ Egress Rate Limit ✓ ✓ Flow Control ✓ Flow Control ✓ ✓ Storm Control ✓ Storm Control ✓ ✓ Multicast & Broadcast Rate Limiting ✓ Multicast & Broadcast Rate Limiting ✓ ✓ MAC Address Blocking ✓ MAC Address Blocking ✓ ✓ IP-Based ACLs & Network Isolation ✓ IP-Based ACLs & Network Isolation ✓ ✓ MAC-Based Port Restriction ✓ MAC-Based Port Restriction ✓ ✓ Port Isolation ✓ Port Isolation ✓ ✓ Port Mirroring ✓ Port Mirroring ✓ ✓ Jumbo Frames ✓ Jumbo Frames ✓ ✓ LLDP-MED ✓ LLDP-MED ✓ ✓ Voice VLAN ✓ Voice VLAN ✓ ✓ Loop Protection ✓ Loop Protection ✓ ✓ Virtual Network Override ✓ Virtual Network Override ✓ ✓ Hardware PoE Ports PoE+++ 48 Max. PoE Wattage per Port by PSE PoE 15.4W PoE+ 30W PoE++ 60W PoE+++ 90W Max. Power Consumption 250W (Excluding PoE Output) 2,400W (Including PoE Output) Power Method (2) Universal input, 100—240V AC, 50/60 Hz Power Input Method (2) AC input, Hot-swappable power modules Power Supply (2) Hot-swappable AC/DC 1,200W power modules Supported Voltage Range 100—240V AC Management Ethernet AR Heat Dissipation 785 BTU/hr (Excluding PoE Output) Weight Without mounting brackets: 9.46 kg (20.9 lb) With mounting brackets: 9.56 kg (21.1 lb) Enclosure Material SGCC steel Mount Material SGCC steel Supported Rack Depth 482.6 mm (19″) four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) LCM Display 1.3″ touchscreen Fan Method (4) hot-swappable fan modules ESD Protection Air: ± 30kV, contact: ± 19kV Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing Etherlighting™ Ethernet ✓ SFP28 ✓ LEDs Ethernet ✓ System ✓ NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 06181-25-08356 PoE Ports PoE+++ 48 Max. PoE Wattage per Port by PSE PoE 15.4W PoE+ 30W PoE++ 60W PoE+++ 90W Max. Power Consumption 250W (Excluding PoE Output) 2,400W (Including PoE Output) Power Method (2) Universal input, 100—240V AC, 50/60 Hz Power Input Method (2) AC input, Hot-swappable power modules Power Supply (2) Hot-swappable AC/DC 1,200W power modules Supported Voltage Range 100—240V AC Management Ethernet AR Heat Dissipation 785 BTU/hr (Excluding PoE Output) Weight Without mounting brackets: 9.46 kg (20.9 lb) With mounting brackets: 9.56 kg (21.1 lb) Enclosure Material SGCC steel Mount Material SGCC steel Supported Rack Depth 482.6 mm (19″) four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) LCM Display 1.3″ touchscreen Fan Method (4) hot-swappable fan modules ESD Protection Air: ± 30kV, contact: ± 19kV Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing Etherlighting™ Ethernet ✓ SFP28 ✓ LEDs Ethernet ✓ System ✓ NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 06181-25-08356 PoE Ports PoE+++ 48 Max. PoE Wattage per Port by PSE PoE 15.4W PoE+ 30W PoE++ 60W PoE+++ 90W Max. Power Consumption 250W (Excluding PoE Output) 2,400W (Including PoE Output) Power Method (2) Universal input, 100—240V AC, 50/60 Hz Power Input Method (2) AC input, Hot-swappable power modules Power Supply (2) Hot-swappable AC/DC 1,200W power modules Supported Voltage Range 100—240V AC Management Ethernet AR Heat Dissipation 785 BTU/hr (Excluding PoE Output) Weight Without mounting brackets: 9.46 kg (20.9 lb) With mounting brackets: 9.56 kg (21.1 lb) Enclosure Material SGCC steel Mount Material SGCC steel Supported Rack Depth 482.6 mm (19″) four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) LCM Display 1.3″ touchscreen Fan Method (4) hot-swappable fan modules ESD Protection Air: ± 30kV, contact: ± 19kV Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing Etherlighting™ Ethernet ✓ SFP28 ✓ LEDs Ethernet ✓ System ✓ NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 06181-25-08356 PoE Ports PoE Ports PoE+++ 48 PoE+++ 48 48 Max. PoE Wattage per Port by PSE Max. PoE Wattage per Port by PSE PoE 15.4W PoE 15.4W 15.4W PoE+ 30W PoE+ 30W 30W PoE++ 60W PoE++ 60W 60W PoE+++ 90W PoE+++ 90W 90W Max. Power Consumption 250W (Excluding PoE Output) 2,400W (Including PoE Output) Max. Power Consumption 250W (Excluding PoE Output) 2,400W (Including PoE Output) 250W (Excluding PoE Output) 2,400W (Including PoE Output) Power Method (2) Universal input, 100—240V AC, 50/60 Hz Power Method (2) Universal input, 100—240V AC, 50/60 Hz (2) Universal input, 100—240V AC, 50/60 Hz Power Input Method (2) AC input, Hot-swappable power modules Power Input Method (2) AC input, Hot-swappable power modules (2) AC input, Hot-swappable power modules Power Supply (2) Hot-swappable AC/DC 1,200W power modules Power Supply (2) Hot-swappable AC/DC 1,200W power modules (2) Hot-swappable AC/DC 1,200W power modules Supported Voltage Range 100—240V AC Supported Voltage Range 100—240V AC 100—240V AC Management Ethernet AR Management Ethernet AR Ethernet AR Heat Dissipation 785 BTU/hr (Excluding PoE Output) Heat Dissipation 785 BTU/hr (Excluding PoE Output) 785 BTU/hr (Excluding PoE Output) Weight Without mounting brackets: 9.46 kg (20.9 lb) With mounting brackets: 9.56 kg (21.1 lb) Weight Without mounting brackets: 9.46 kg (20.9 lb) With mounting brackets: 9.56 kg (21.1 lb) Without mounting brackets: 9.46 kg (20.9 lb) With mounting brackets: 9.56 kg (21.1 lb) Enclosure Material SGCC steel Enclosure Material SGCC steel SGCC steel Mount Material SGCC steel Mount Material SGCC steel SGCC steel Supported Rack Depth 482.6 mm (19″) four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) Supported Rack Depth 482.6 mm (19″) four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) 482.6 mm (19″) four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) LCM Display 1.3″ touchscreen LCM Display 1.3″ touchscreen 1.3″ touchscreen Fan Method (4) hot-swappable fan modules Fan Method (4) hot-swappable fan modules (4) hot-swappable fan modules ESD Protection Air: ± 30kV, contact: ± 19kV ESD Protection Air: ± 30kV, contact: ± 19kV Air: ± 30kV, contact: ± 19kV Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Temperature -5 to 40° C (23 to 104° F) -5 to 40° C (23 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing Ambient Operating Humidity 10 to 90% noncondensing 10 to 90% noncondensing Etherlighting™ Etherlighting™ Ethernet ✓ Ethernet ✓ ✓ SFP28 ✓ SFP28 ✓ ✓ LEDs LEDs Ethernet ✓ Ethernet ✓ ✓ System ✓ System ✓ ✓ NDAA Compliant ✓ NDAA Compliant ✓ ✓ Certifications CE, FCC, IC, Anatel: 06181-25-08356 Certifications CE, FCC, IC, Anatel: 06181-25-08356 CE, FCC, IC, Anatel: 06181-25-08356 Software Application Requirements UniFi Network Version 9.0.114 and later Application Requirements UniFi Network Version 9.0.114 and later Application Requirements UniFi Network Version 9.0.114 and later Application Requirements Application Requirements UniFi Network Version 9.0.114 and later UniFi Network Version 9.0.114 and later Version 9.0.114 and later
