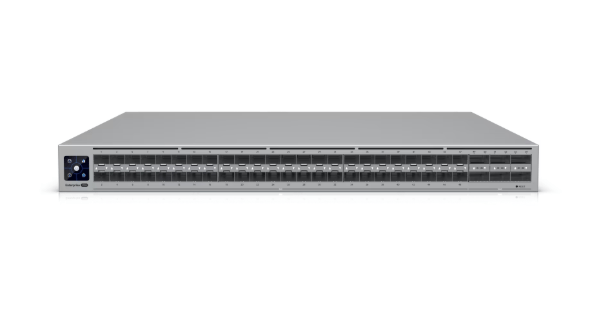

Enterprise Campus Aggregation

Dimensions 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5″) Port Layout 25G SFP28 48 (25G/10G) 100G QSFP28 6 (100G/40G) Redundancy Multi-Chassis Link Aggregation (MC-LAG) (2) Hot-Swappable PSUs (5) Hot-Swappable Fans Layer 3 ✓ Form Factor Rack mount (1U, Full-Depth) Etherlighting™ ✓ Performance Switching Capacity 3.6 Tbps Total Non-Blocking Throughput 1.8 Tbps Forwarding Rate 2.4 Bpps Supported VLANs 1,000 MAC Address Table Size 128,000 L3 Table Size ARP Entries 96,000 IPv4 Routes 288,000 Packet Buffer Size 24 MB Access Lists IPv4 512 MAC 512 Layer 3 Features DHCP Server (Local Networks) ✓ DHCP Relay ✓ Inter-VLAN Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ Layer 2 Features LACP Port Aggregation ✓ MC-LAG ✓ STP & RSTP ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ Hardware Max. Power Consumption 340W Power Method (2) Universal input, 100—240V AC, 50/60 Hz Power Input Method (2) AC input, Hot-swappable power modules Power Supply (2) Hot-swappable AC/DC 550W power modules Supported Voltage Range 100—240V AC Management Ethernet AR Heat Dissipation 1160 BTU/hr Weight Without mounting brackets: 9.9 kg (21.8 lb) With mounting brackets: 10 kg (22 lb) Enclosure Material SGCC steel Mount Material SGCC steel Supported Rack Depth 482.6 mm (19″) four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) LCM Display 1.3″ touchscreen ESD Protection Air: ± 12kV, contact: ± 8kV Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Humidity 10 to 95% noncondensing Etherlighting™ SFP28 ✓ QSFP28 ✓ NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 01327-25-08356 Software Application Requirements UniFi Network Version 8.5.6 and later Dimensions 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5″) Port Layout 25G SFP28 48 (25G/10G) 100G QSFP28 6 (100G/40G) Redundancy Multi-Chassis Link Aggregation (MC-LAG) (2) Hot-Swappable PSUs (5) Hot-Swappable Fans Layer 3 ✓ Form Factor Rack mount (1U, Full-Depth) Etherlighting™ ✓ Dimensions 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5″) Port Layout 25G SFP28 48 (25G/10G) 100G QSFP28 6 (100G/40G) Redundancy Multi-Chassis Link Aggregation (MC-LAG) (2) Hot-Swappable PSUs (5) Hot-Swappable Fans Layer 3 ✓ Form Factor Rack mount (1U, Full-Depth) Etherlighting™ ✓ Dimensions 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5″) Port Layout 25G SFP28 48 (25G/10G) 100G QSFP28 6 (100G/40G) Redundancy Multi-Chassis Link Aggregation (MC-LAG) (2) Hot-Swappable PSUs (5) Hot-Swappable Fans Layer 3 ✓ Form Factor Rack mount (1U, Full-Depth) Etherlighting™ ✓ Dimensions 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5″) Dimensions 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5″) 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5″) Port Layout Port Layout 25G SFP28 48 (25G/10G) 25G SFP28 48 (25G/10G) 48 (25G/10G) 100G QSFP28 6 (100G/40G) 100G QSFP28 6 (100G/40G) 6 (100G/40G) Redundancy Multi-Chassis Link Aggregation (MC-LAG) (2) Hot-Swappable PSUs (5) Hot-Swappable Fans Redundancy Multi-Chassis Link Aggregation (MC-LAG) (2) Hot-Swappable PSUs (5) Hot-Swappable Fans Multi-Chassis Link Aggregation (MC-LAG) (2) Hot-Swappable PSUs (5) Hot-Swappable Fans Layer 3 ✓ Layer 3 ✓ ✓ Form Factor Rack mount (1U, Full-Depth) Form Factor Rack mount (1U, Full-Depth) Rack mount (1U, Full-Depth) Etherlighting™ ✓ Etherlighting™ ✓ ✓ Performance Switching Capacity 3.6 Tbps Total Non-Blocking Throughput 1.8 Tbps Forwarding Rate 2.4 Bpps Supported VLANs 1,000 MAC Address Table Size 128,000 L3 Table Size ARP Entries 96,000 IPv4 Routes 288,000 Packet Buffer Size 24 MB Access Lists IPv4 512 MAC 512 Switching Capacity 3.6 Tbps Total Non-Blocking Throughput 1.8 Tbps Forwarding Rate 2.4 Bpps Supported VLANs 1,000 MAC Address Table Size 128,000 L3 Table Size ARP Entries 96,000 IPv4 Routes 288,000 Packet Buffer Size 24 MB Access Lists IPv4 512 MAC 512 Switching Capacity 3.6 Tbps Total Non-Blocking Throughput 1.8 Tbps Forwarding Rate 2.4 Bpps Supported VLANs 1,000 MAC Address Table Size 128,000 L3 Table Size ARP Entries 96,000 IPv4 Routes 288,000 Packet Buffer Size 24 MB Access Lists IPv4 512 MAC 512 Switching Capacity 3.6 Tbps Switching Capacity 3.6 Tbps 3.6 Tbps Total Non-Blocking Throughput 1.8 Tbps Total Non-Blocking Throughput 1.8 Tbps 1.8 Tbps Forwarding Rate 2.4 Bpps Forwarding Rate 2.4 Bpps 2.4 Bpps Supported VLANs 1,000 Supported VLANs 1,000 1,000 MAC Address Table Size 128,000 MAC Address Table Size 128,000 128,000 L3 Table Size L3 Table Size ARP Entries 96,000 ARP Entries 96,000 96,000 IPv4 Routes 288,000 IPv4 Routes 288,000 288,000 Packet Buffer Size 24 MB Packet Buffer Size 24 MB 24 MB Access Lists Access Lists IPv4 512 IPv4 512 512 MAC 512 MAC 512 512 Layer 3 Features DHCP Server (Local Networks) ✓ DHCP Relay ✓ Inter-VLAN Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ DHCP Server (Local Networks) ✓ DHCP Relay ✓ Inter-VLAN Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ DHCP Server (Local Networks) ✓ DHCP Relay ✓ Inter-VLAN Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ DHCP Server (Local Networks) ✓ DHCP Server (Local Networks) ✓ ✓ DHCP Relay ✓ DHCP Relay ✓ ✓ Inter-VLAN Routing (Local Networks) ✓ Inter-VLAN Routing (Local Networks) ✓ ✓ Static Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ ✓ Layer 2 Features LACP Port Aggregation ✓ MC-LAG ✓ STP & RSTP ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ LACP Port Aggregation ✓ MC-LAG ✓ STP & RSTP ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ LACP Port Aggregation ✓ MC-LAG ✓ STP & RSTP ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ LACP Port Aggregation ✓ LACP Port Aggregation ✓ ✓ MC-LAG ✓ MC-LAG ✓ ✓ STP & RSTP ✓ STP & RSTP ✓ ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ ✓ IGMP Snooping ✓ IGMP Snooping ✓ ✓ MAC-Based ACLs & Device Isolation ✓ MAC-Based ACLs & Device Isolation ✓ ✓ DHCP Snooping & Guarding ✓ DHCP Snooping & Guarding ✓ ✓ Egress Rate Limit ✓ Egress Rate Limit ✓ ✓ Flow Control ✓ Flow Control ✓ ✓ MAC Address Blocking ✓ MAC Address Blocking ✓ ✓ IP-Based ACLs & Network Isolation ✓ IP-Based ACLs & Network Isolation ✓ ✓ MAC-Based Port Restriction ✓ MAC-Based Port Restriction ✓ ✓ Port Isolation ✓ Port Isolation ✓ ✓ Port Mirroring ✓ Port Mirroring ✓ ✓ Jumbo Frames ✓ Jumbo Frames ✓ ✓ LLDP-MED ✓ LLDP-MED ✓ ✓ Voice VLAN ✓ Voice VLAN ✓ ✓ Loop Protection ✓ Loop Protection ✓ ✓ Hardware Max. Power Consumption 340W Power Method (2) Universal input, 100—240V AC, 50/60 Hz Power Input Method (2) AC input, Hot-swappable power modules Power Supply (2) Hot-swappable AC/DC 550W power modules Supported Voltage Range 100—240V AC Management Ethernet AR Heat Dissipation 1160 BTU/hr Weight Without mounting brackets: 9.9 kg (21.8 lb) With mounting brackets: 10 kg (22 lb) Enclosure Material SGCC steel Mount Material SGCC steel Supported Rack Depth 482.6 mm (19″) four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) LCM Display 1.3″ touchscreen ESD Protection Air: ± 12kV, contact: ± 8kV Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Humidity 10 to 95% noncondensing Etherlighting™ SFP28 ✓ QSFP28 ✓ NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 01327-25-08356 Max. Power Consumption 340W Power Method (2) Universal input, 100—240V AC, 50/60 Hz Power Input Method (2) AC input, Hot-swappable power modules Power Supply (2) Hot-swappable AC/DC 550W power modules Supported Voltage Range 100—240V AC Management Ethernet AR Heat Dissipation 1160 BTU/hr Weight Without mounting brackets: 9.9 kg (21.8 lb) With mounting brackets: 10 kg (22 lb) Enclosure Material SGCC steel Mount Material SGCC steel Supported Rack Depth 482.6 mm (19″) four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) LCM Display 1.3″ touchscreen ESD Protection Air: ± 12kV, contact: ± 8kV Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Humidity 10 to 95% noncondensing Etherlighting™ SFP28 ✓ QSFP28 ✓ NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 01327-25-08356 Max. Power Consumption 340W Power Method (2) Universal input, 100—240V AC, 50/60 Hz Power Input Method (2) AC input, Hot-swappable power modules Power Supply (2) Hot-swappable AC/DC 550W power modules Supported Voltage Range 100—240V AC Management Ethernet AR Heat Dissipation 1160 BTU/hr Weight Without mounting brackets: 9.9 kg (21.8 lb) With mounting brackets: 10 kg (22 lb) Enclosure Material SGCC steel Mount Material SGCC steel Supported Rack Depth 482.6 mm (19″) four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) LCM Display 1.3″ touchscreen ESD Protection Air: ± 12kV, contact: ± 8kV Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Humidity 10 to 95% noncondensing Etherlighting™ SFP28 ✓ QSFP28 ✓ NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 01327-25-08356 Max. Power Consumption 340W Max. Power Consumption 340W 340W Power Method (2) Universal input, 100—240V AC, 50/60 Hz Power Method (2) Universal input, 100—240V AC, 50/60 Hz (2) Universal input, 100—240V AC, 50/60 Hz Power Input Method (2) AC input, Hot-swappable power modules Power Input Method (2) AC input, Hot-swappable power modules (2) AC input, Hot-swappable power modules Power Supply (2) Hot-swappable AC/DC 550W power modules Power Supply (2) Hot-swappable AC/DC 550W power modules (2) Hot-swappable AC/DC 550W power modules Supported Voltage Range 100—240V AC Supported Voltage Range 100—240V AC 100—240V AC Management Ethernet AR Management Ethernet AR Ethernet AR Heat Dissipation 1160 BTU/hr Heat Dissipation 1160 BTU/hr 1160 BTU/hr Weight Without mounting brackets: 9.9 kg (21.8 lb) With mounting brackets: 10 kg (22 lb) Weight Without mounting brackets: 9.9 kg (21.8 lb) With mounting brackets: 10 kg (22 lb) Without mounting brackets: 9.9 kg (21.8 lb) With mounting brackets: 10 kg (22 lb) Enclosure Material SGCC steel Enclosure Material SGCC steel SGCC steel Mount Material SGCC steel Mount Material SGCC steel SGCC steel Supported Rack Depth 482.6 mm (19″) four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) Supported Rack Depth 482.6 mm (19″) four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) 482.6 mm (19″) four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) LCM Display 1.3″ touchscreen LCM Display 1.3″ touchscreen 1.3″ touchscreen ESD Protection Air: ± 12kV, contact: ± 8kV ESD Protection Air: ± 12kV, contact: ± 8kV Air: ± 12kV, contact: ± 8kV Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Temperature -5 to 40° C (23 to 104° F) -5 to 40° C (23 to 104° F) Ambient Operating Humidity 10 to 95% noncondensing Ambient Operating Humidity 10 to 95% noncondensing 10 to 95% noncondensing Etherlighting™ Etherlighting™ SFP28 ✓ SFP28 ✓ ✓ QSFP28 ✓ QSFP28 ✓ ✓ NDAA Compliant ✓ NDAA Compliant ✓ ✓ Certifications CE, FCC, IC, Anatel: 01327-25-08356 Certifications CE, FCC, IC, Anatel: 01327-25-08356 CE, FCC, IC, Anatel: 01327-25-08356 Software Application Requirements UniFi Network Version 8.5.6 and later Application Requirements UniFi Network Version 8.5.6 and later Application Requirements UniFi Network Version 8.5.6 and later Application Requirements Application Requirements UniFi Network Version 8.5.6 and later UniFi Network Version 8.5.6 and later Version 8.5.6 and later
