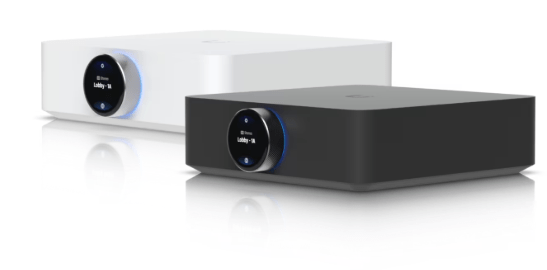

PowerAmp

Dimensions With knob: 217 x 236.8 x 63.7 mm (8.5 x 9.3 x 2.5″) Without knob: 217 x 217 x 63.7 mm (8.5 x 8.5 x 2.5″) Weight 2.4 kg (5.3 lb) Enclosure Material Chassis: Polycarbonate Knob: Aluminum Mounting Compact Desktop Available Colors Black White Audio Per Channel Power (Continuous power) 130 W, 8 Ω, 1 kHz, < 0.05% THD+N, EIA (CEA-490-A) 260 W, 4 Ω, 1 kHz, < 0.09% THD+N, EIA (CEA-490-A) Amplifier Class Class D Output Mono / Stereo sound Surround Format Dolby Atmos, Dolby TrueHD, Dolby Atmos (True HD), Dolby Atmos (Dolby Digital Plus), Dolby Digital, Dolby Digital Plus, Stereo PCM, Multichannel PCM, Dolby Multichannel PCM Zone Up to 32 PowerAmps Audio Input (1) HDMI eARC input (2) RCA analog inputs L/R Audio Output (1) RCA analog subwoofer output (2) Speaker terminal outputs with (2) banana plugs Streaming AirPlay, Spotify Connect, Soundtrack Your Brand Hardware Networking Interface (2) GbE RJ45 ports WiFi Standards 802.11 a/b/g/n/ac Connectivity WiFi 5G, BW 20/40/80 MHz WiFi 2.4G, BW 20/40 MHz Power Method (1) Universal AC input, 100–240V AC, 2.5A Max., 50/60 Hz Max. Power Consumption 17W LCM Display 1.43″ rotary knob with touchscreen Button (1) Factory-reset Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Humidity 5 to 90% noncondensing NDAA Compliant ✓ Certifications FCC, IC, CE Software Application Requirements UniFi Play iOS™ and Android™: Version 1.0.0 and later Dimensions With knob: 217 x 236.8 x 63.7 mm (8.5 x 9.3 x 2.5″) Without knob: 217 x 217 x 63.7 mm (8.5 x 8.5 x 2.5″) Weight 2.4 kg (5.3 lb) Enclosure Material Chassis: Polycarbonate Knob: Aluminum Mounting Compact Desktop Available Colors Black White Dimensions With knob: 217 x 236.8 x 63.7 mm (8.5 x 9.3 x 2.5″) Without knob: 217 x 217 x 63.7 mm (8.5 x 8.5 x 2.5″) Weight 2.4 kg (5.3 lb) Enclosure Material Chassis: Polycarbonate Knob: Aluminum Mounting Compact Desktop Available Colors Black White Dimensions With knob: 217 x 236.8 x 63.7 mm (8.5 x 9.3 x 2.5″) Without knob: 217 x 217 x 63.7 mm (8.5 x 8.5 x 2.5″) Weight 2.4 kg (5.3 lb) Enclosure Material Chassis: Polycarbonate Knob: Aluminum Mounting Compact Desktop Available Colors Black White Dimensions With knob: 217 x 236.8 x 63.7 mm (8.5 x 9.3 x 2.5″) Without knob: 217 x 217 x 63.7 mm (8.5 x 8.5 x 2.5″) Dimensions With knob: 217 x 236.8 x 63.7 mm (8.5 x 9.3 x 2.5″) Without knob: 217 x 217 x 63.7 mm (8.5 x 8.5 x 2.5″) With knob: 217 x 236.8 x 63.7 mm (8.5 x 9.3 x 2.5″) Without knob: 217 x 217 x 63.7 mm (8.5 x 8.5 x 2.5″) Weight 2.4 kg (5.3 lb) Weight 2.4 kg (5.3 lb) 2.4 kg (5.3 lb) Enclosure Material Chassis: Polycarbonate Knob: Aluminum Enclosure Material Chassis: Polycarbonate Knob: Aluminum Chassis: Polycarbonate Knob: Aluminum Mounting Compact Desktop Mounting Compact Desktop Compact Desktop Available Colors Black White Available Colors Black White Black White Audio Per Channel Power (Continuous power) 130 W, 8 Ω, 1 kHz, < 0.05% THD+N, EIA (CEA-490-A) 260 W, 4 Ω, 1 kHz, < 0.09% THD+N, EIA (CEA-490-A) Amplifier Class Class D Output Mono / Stereo sound Surround Format Dolby Atmos, Dolby TrueHD, Dolby Atmos (True HD), Dolby Atmos (Dolby Digital Plus), Dolby Digital, Dolby Digital Plus, Stereo PCM, Multichannel PCM, Dolby Multichannel PCM Zone Up to 32 PowerAmps Audio Input (1) HDMI eARC input (2) RCA analog inputs L/R Audio Output (1) RCA analog subwoofer output (2) Speaker terminal outputs with (2) banana plugs Streaming AirPlay, Spotify Connect, Soundtrack Your Brand Per Channel Power (Continuous power) 130 W, 8 Ω, 1 kHz, < 0.05% THD+N, EIA (CEA-490-A) 260 W, 4 Ω, 1 kHz, < 0.09% THD+N, EIA (CEA-490-A) Amplifier Class Class D Output Mono / Stereo sound Surround Format Dolby Atmos, Dolby TrueHD, Dolby Atmos (True HD), Dolby Atmos (Dolby Digital Plus), Dolby Digital, Dolby Digital Plus, Stereo PCM, Multichannel PCM, Dolby Multichannel PCM Zone Up to 32 PowerAmps Audio Input (1) HDMI eARC input (2) RCA analog inputs L/R Audio Output (1) RCA analog subwoofer output (2) Speaker terminal outputs with (2) banana plugs Streaming AirPlay, Spotify Connect, Soundtrack Your Brand Per Channel Power (Continuous power) 130 W, 8 Ω, 1 kHz, < 0.05% THD+N, EIA (CEA-490-A) 260 W, 4 Ω, 1 kHz, < 0.09% THD+N, EIA (CEA-490-A) Amplifier Class Class D Output Mono / Stereo sound Surround Format Dolby Atmos, Dolby TrueHD, Dolby Atmos (True HD), Dolby Atmos (Dolby Digital Plus), Dolby Digital, Dolby Digital Plus, Stereo PCM, Multichannel PCM, Dolby Multichannel PCM Zone Up to 32 PowerAmps Audio Input (1) HDMI eARC input (2) RCA analog inputs L/R Audio Output (1) RCA analog subwoofer output (2) Speaker terminal outputs with (2) banana plugs Streaming AirPlay, Spotify Connect, Soundtrack Your Brand Per Channel Power (Continuous power) 130 W, 8 Ω, 1 kHz, < 0.05% THD+N, EIA (CEA-490-A) 260 W, 4 Ω, 1 kHz, < 0.09% THD+N, EIA (CEA-490-A) Per Channel Power (Continuous power) 130 W, 8 Ω, 1 kHz, < 0.05% THD+N, EIA (CEA-490-A) 260 W, 4 Ω, 1 kHz, < 0.09% THD+N, EIA (CEA-490-A) 130 W, 8 Ω, 1 kHz, < 0.05% THD+N, EIA (CEA-490-A) 260 W, 4 Ω, 1 kHz, < 0.09% THD+N, EIA (CEA-490-A) Amplifier Class Class D Amplifier Class Class D Class D Output Mono / Stereo sound Output Mono / Stereo sound Mono / Stereo sound Surround Format Dolby Atmos, Dolby TrueHD, Dolby Atmos (True HD), Dolby Atmos (Dolby Digital Plus), Dolby Digital, Dolby Digital Plus, Stereo PCM, Multichannel PCM, Dolby Multichannel PCM Surround Format Dolby Atmos, Dolby TrueHD, Dolby Atmos (True HD), Dolby Atmos (Dolby Digital Plus), Dolby Digital, Dolby Digital Plus, Stereo PCM, Multichannel PCM, Dolby Multichannel PCM Dolby Atmos, Dolby TrueHD, Dolby Atmos (True HD), Dolby Atmos (Dolby Digital Plus), Dolby Digital, Dolby Digital Plus, Stereo PCM, Multichannel PCM, Dolby Multichannel PCM Zone Up to 32 PowerAmps Zone Up to 32 PowerAmps Up to 32 PowerAmps Audio Input (1) HDMI eARC input (2) RCA analog inputs L/R Audio Input (1) HDMI eARC input (2) RCA analog inputs L/R (1) HDMI eARC input (2) RCA analog inputs L/R Audio Output (1) RCA analog subwoofer output (2) Speaker terminal outputs with (2) banana plugs Audio Output (1) RCA analog subwoofer output (2) Speaker terminal outputs with (2) banana plugs (1) RCA analog subwoofer output (2) Speaker terminal outputs with (2) banana plugs Streaming AirPlay, Spotify Connect, Soundtrack Your Brand Streaming AirPlay, Spotify Connect, Soundtrack Your Brand AirPlay, Spotify Connect, Soundtrack Your Brand Hardware Networking Interface (2) GbE RJ45 ports WiFi Standards 802.11 a/b/g/n/ac Connectivity WiFi 5G, BW 20/40/80 MHz WiFi 2.4G, BW 20/40 MHz Power Method (1) Universal AC input, 100–240V AC, 2.5A Max., 50/60 Hz Max. Power Consumption 17W LCM Display 1.43″ rotary knob with touchscreen Button (1) Factory-reset Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Humidity 5 to 90% noncondensing NDAA Compliant ✓ Certifications FCC, IC, CE Networking Interface (2) GbE RJ45 ports WiFi Standards 802.11 a/b/g/n/ac Connectivity WiFi 5G, BW 20/40/80 MHz WiFi 2.4G, BW 20/40 MHz Power Method (1) Universal AC input, 100–240V AC, 2.5A Max., 50/60 Hz Max. Power Consumption 17W LCM Display 1.43″ rotary knob with touchscreen Button (1) Factory-reset Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Humidity 5 to 90% noncondensing NDAA Compliant ✓ Certifications FCC, IC, CE Networking Interface (2) GbE RJ45 ports WiFi Standards 802.11 a/b/g/n/ac Connectivity WiFi 5G, BW 20/40/80 MHz WiFi 2.4G, BW 20/40 MHz Power Method (1) Universal AC input, 100–240V AC, 2.5A Max., 50/60 Hz Max. Power Consumption 17W LCM Display 1.43″ rotary knob with touchscreen Button (1) Factory-reset Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Humidity 5 to 90% noncondensing NDAA Compliant ✓ Certifications FCC, IC, CE Networking Interface (2) GbE RJ45 ports Networking Interface (2) GbE RJ45 ports (2) GbE RJ45 ports WiFi Standards 802.11 a/b/g/n/ac WiFi Standards 802.11 a/b/g/n/ac 802.11 a/b/g/n/ac Connectivity WiFi 5G, BW 20/40/80 MHz WiFi 2.4G, BW 20/40 MHz Connectivity WiFi 5G, BW 20/40/80 MHz WiFi 2.4G, BW 20/40 MHz WiFi 5G, BW 20/40/80 MHz WiFi 2.4G, BW 20/40 MHz Power Method (1) Universal AC input, 100–240V AC, 2.5A Max., 50/60 Hz Power Method (1) Universal AC input, 100–240V AC, 2.5A Max., 50/60 Hz (1) Universal AC input, 100–240V AC, 2.5A Max., 50/60 Hz Max. Power Consumption 17W Max. Power Consumption 17W 17W LCM Display 1.43″ rotary knob with touchscreen LCM Display 1.43″ rotary knob with touchscreen 1.43″ rotary knob with touchscreen Button (1) Factory-reset Button (1) Factory-reset (1) Factory-reset Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Temperature -5 to 40° C (23 to 104° F) -5 to 40° C (23 to 104° F) Ambient Operating Humidity 5 to 90% noncondensing Ambient Operating Humidity 5 to 90% noncondensing 5 to 90% noncondensing NDAA Compliant ✓ NDAA Compliant ✓ ✓ Certifications FCC, IC, CE Certifications FCC, IC, CE FCC, IC, CE Software Application Requirements UniFi Play iOS™ and Android™: Version 1.0.0 and later Application Requirements UniFi Play iOS™ and Android™: Version 1.0.0 and later Application Requirements UniFi Play iOS™ and Android™: Version 1.0.0 and later Application Requirements UniFi Play iOS™ and Android™: Version 1.0.0 and later Application Requirements UniFi Play iOS™ and Android™: Version 1.0.0 and later UniFi Play iOS™ and Android™: Version 1.0.0 and later
