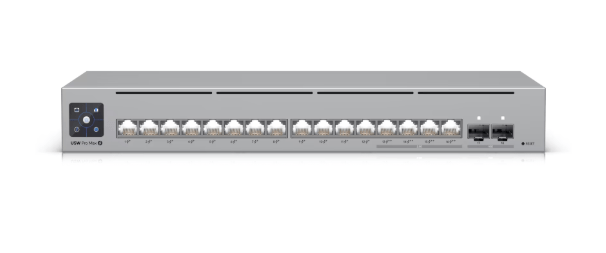

Pro Max 16 PoE

€398.40
Dimensions 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7″) Port Layout 1 GbE RJ45 12 (All PoE+) (1G/100M/10M) 2.5 GbE RJ45 4 (All PoE++) (2.5G/1G/100M/10M) 10G SFP+ 2 (10G/1G) Max. PoE Output Up to PoE++ Form Factor Rack mount (1U), desktop, wall Etherlighting™ Performance Switching Capacity 84 Gbps Total Non-Blocking Throughput 42 Gbps Forwarding Rate 62 Mpps Supported VLANs 1,000 MAC Address Table Size 16,000 L3 Table Size ARP Entries 6,000 IPv4 Routes 512 Packet Buffer Size 1.5 MB Access Lists IPv4 128 MAC 128 Layer 3 Features DHCP Server (Local Networks) DHCP Relay Inter-VLAN Routing (Local Networks) Static Routing (Local Networks) Layer 2 Features LACP Port Aggregation STP & RSTP QoS (DSCP) Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) Advanced IGMP Configuration (Querier, Fast Leave, Router Port) IGMP Snooping 802.1X Control MAC-Based ACLs & Device Isolation DHCP Snooping & Guarding Egress Rate Limit Flow Control Storm Control Multicast & Broadcast Rate Limiting MAC Address Blocking IP-Based ACLs & Network Isolation MAC-Based Port Restriction Port Isolation Port Mirroring Jumbo Frames LLDP-MED Voice VLAN Loop Protection Virtual Network Override Hardware PoE Ports PoE+ 12 PoE++ 4 Max. PoE Wattage per Port by PSE PoE 15.4W PoE+ 32W PoE++ 64W Max. Power Consumption 25W (Excluding PoE Output) 210W (Including PoE Output) Power Supply AC/DC, external, 210W Supported Voltage Range 50—54V DC Management Ethernet AR Heat Dissipation 68 BTU/hr (Excluding PoE Output) Weight 2.1 kg (4.6 lb) Supported Rack Depth 400~1200 mm (15.7-47.2″) LCM Display 1.3″ touchscreen Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing Etherlighting™ Ethernet SFP+ NDAA Compliant Certifications CE, FCC, IC, Anatel: 08953-24-08356 Software Application Requirements UniFi Network Version 8.1.127 and later Dimensions 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7″) Port Layout 1 GbE RJ45 12 (All PoE+) (1G/100M/10M) 2.5 GbE RJ45 4 (All PoE++) (2.5G/1G/100M/10M) 10G SFP+ 2 (10G/1G) Max. PoE Output Up to PoE++ Form Factor Rack mount (1U), desktop, wall Etherlighting™ Dimensions 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7″) Port Layout 1 GbE RJ45 12 (All PoE+) (1G/100M/10M) 2.5 GbE RJ45 4 (All PoE++) (2.5G/1G/100M/10M) 10G SFP+ 2 (10G/1G) Max. PoE Output Up to PoE++ Form Factor Rack mount (1U), desktop, wall Etherlighting™ Dimensions 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7″) Port Layout 1 GbE RJ45 12 (All PoE+) (1G/100M/10M) 2.5 GbE RJ45 4 (All PoE++) (2.5G/1G/100M/10M) 10G SFP+ 2 (10G/1G) Max. PoE Output Up to PoE++ Form Factor Rack mount (1U), desktop, wall Etherlighting™ Dimensions 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7″) Dimensions 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7″) 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7″) Port Layout Port Layout 1 GbE RJ45 12 (All PoE+) (1G/100M/10M) 1 GbE RJ45 12 (All PoE+) (1G/100M/10M) 12 (All PoE+) (1G/100M/10M) 2.5 GbE RJ45 4 (All PoE++) (2.5G/1G/100M/10M) 2.5 GbE RJ45 4 (All PoE++) (2.5G/1G/100M/10M) 4 (All PoE++) (2.5G/1G/100M/10M) 10G SFP+ 2 (10G/1G) 10G SFP+ 2 (10G/1G) 2 (10G/1G) Max. PoE Output Up to PoE++ Max. PoE Output Up to PoE++ Up to PoE++ Form Factor Rack mount (1U), desktop, wall Form Factor Rack mount (1U), desktop, wall Rack mount (1U), desktop, wall Etherlighting™ Etherlighting™ Performance Switching Capacity 84 Gbps Total Non-Blocking Throughput 42 Gbps Forwarding Rate 62 Mpps Supported VLANs 1,000 MAC Address Table Size 16,000 L3 Table Size ARP Entries 6,000 IPv4 Routes 512 Packet Buffer Size 1.5 MB Access Lists IPv4 128 MAC 128 Switching Capacity 84 Gbps Total Non-Blocking Throughput 42 Gbps Forwarding Rate 62 Mpps Supported VLANs 1,000 MAC Address Table Size 16,000 L3 Table Size ARP Entries 6,000 IPv4 Routes 512 Packet Buffer Size 1.5 MB Access Lists IPv4 128 MAC 128 Switching Capacity 84 Gbps Total Non-Blocking Throughput 42 Gbps Forwarding Rate 62 Mpps Supported VLANs 1,000 MAC Address Table Size 16,000 L3 Table Size ARP Entries 6,000 IPv4 Routes 512 Packet Buffer Size 1.5 MB Access Lists IPv4 128 MAC 128 Switching Capacity 84 Gbps Switching Capacity 84 Gbps Total Non-Blocking Throughput 42 Gbps Total Non-Blocking Throughput 42 Gbps Forwarding Rate 62 Mpps Forwarding Rate 62 Mpps Supported VLANs 1,000 Supported VLANs 1,000 MAC Address Table Size 16,000 MAC Address Table Size 16,000 L3 Table Size L3 Table Size ARP Entries 6,000 ARP Entries 6,000 IPv4 Routes 512 IPv4 Routes 512 Packet Buffer Size 1.5 MB Packet Buffer Size 1.5 MB Access Lists Access Lists IPv4 128 IPv4 128 MAC 128 MAC 128 Layer 3 Features DHCP Server (Local Networks) DHCP Relay Inter-VLAN Routing (Local Networks) Static Routing (Local Networks) DHCP Server (Local Networks) DHCP Relay Inter-VLAN Routing (Local Networks) Static Routing (Local Networks) DHCP Server (Local Networks) DHCP Relay Inter-VLAN Routing (Local Networks) Static Routing (Local Networks) DHCP Server (Local Networks) DHCP Server (Local Networks) DHCP Relay DHCP Relay Inter-VLAN Routing (Local Networks) Inter-VLAN Routing (Local Networks) Static Routing (Local Networks) Static Routing (Local Networks) Layer 2 Features LACP Port Aggregation STP & RSTP QoS (DSCP) Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) Advanced IGMP Configuration (Querier, Fast Leave, Router Port) IGMP Snooping 802.1X Control MAC-Based ACLs & Device Isolation DHCP Snooping & Guarding Egress Rate Limit Flow Control Storm Control Multicast & Broadcast Rate Limiting MAC Address Blocking IP-Based ACLs & Network Isolation MAC-Based Port Restriction Port Isolation Port Mirroring Jumbo Frames LLDP-MED Voice VLAN Loop Protection Virtual Network Override LACP Port Aggregation STP & RSTP QoS (DSCP) Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) Advanced IGMP Configuration (Querier, Fast Leave, Router Port) IGMP Snooping 802.1X Control MAC-Based ACLs & Device Isolation DHCP Snooping & Guarding Egress Rate Limit Flow Control Storm Control Multicast & Broadcast Rate Limiting MAC Address Blocking IP-Based ACLs & Network Isolation MAC-Based Port Restriction Port Isolation Port Mirroring Jumbo Frames LLDP-MED Voice VLAN Loop Protection Virtual Network Override LACP Port Aggregation STP & RSTP QoS (DSCP) Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) Advanced IGMP Configuration (Querier, Fast Leave, Router Port) IGMP Snooping 802.1X Control MAC-Based ACLs & Device Isolation DHCP Snooping & Guarding Egress Rate Limit Flow Control Storm Control Multicast & Broadcast Rate Limiting MAC Address Blocking IP-Based ACLs & Network Isolation MAC-Based Port Restriction Port Isolation Port Mirroring Jumbo Frames LLDP-MED Voice VLAN Loop Protection Virtual Network Override LACP Port Aggregation LACP Port Aggregation STP & RSTP STP & RSTP QoS (DSCP) QoS (DSCP) Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) Advanced IGMP Configuration (Querier, Fast Leave, Router Port) Advanced IGMP Configuration (Querier, Fast Leave, Router Port) IGMP Snooping IGMP Snooping 802.1X Control 802.1X Control MAC-Based ACLs & Device Isolation MAC-Based ACLs & Device Isolation DHCP Snooping & Guarding DHCP Snooping & Guarding Egress Rate Limit Egress Rate Limit Flow Control Flow Control Storm Control Storm Control Multicast & Broadcast Rate Limiting Multicast & Broadcast Rate Limiting MAC Address Blocking MAC Address Blocking IP-Based ACLs & Network Isolation IP-Based ACLs & Network Isolation MAC-Based Port Restriction MAC-Based Port Restriction Port Isolation Port Isolation Port Mirroring Port Mirroring Jumbo Frames Jumbo Frames LLDP-MED LLDP-MED Voice VLAN Voice VLAN Loop Protection Loop Protection Virtual Network Override Virtual Network Override Hardware PoE Ports PoE+ 12 PoE++ 4 Max. PoE Wattage per Port by PSE PoE 15.4W PoE+ 32W PoE++ 64W Max. Power Consumption 25W (Excluding PoE Output) 210W (Including PoE Output) Power Supply AC/DC, external, 210W Supported Voltage Range 50—54V DC Management Ethernet AR Heat Dissipation 68 BTU/hr (Excluding PoE Output) Weight 2.1 kg (4.6 lb) Supported Rack Depth 400~1200 mm (15.7-47.2″) LCM Display 1.3″ touchscreen Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing Etherlighting™ Ethernet SFP+ NDAA Compliant Certifications CE, FCC, IC, Anatel: 08953-24-08356 PoE Ports PoE+ 12 PoE++ 4 Max. PoE Wattage per Port by PSE PoE 15.4W PoE+ 32W PoE++ 64W Max. Power Consumption 25W (Excluding PoE Output) 210W (Including PoE Output) Power Supply AC/DC, external, 210W Supported Voltage Range 50—54V DC Management Ethernet AR Heat Dissipation 68 BTU/hr (Excluding PoE Output) Weight 2.1 kg (4.6 lb) Supported Rack Depth 400~1200 mm (15.7-47.2″) LCM Display 1.3″ touchscreen Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing Etherlighting™ Ethernet SFP+ NDAA Compliant Certifications CE, FCC, IC, Anatel: 08953-24-08356 PoE Ports PoE+ 12 PoE++ 4 Max. PoE Wattage per Port by PSE PoE 15.4W PoE+ 32W PoE++ 64W Max. Power Consumption 25W (Excluding PoE Output) 210W (Including PoE Output) Power Supply AC/DC, external, 210W Supported Voltage Range 50—54V DC Management Ethernet AR Heat Dissipation 68 BTU/hr (Excluding PoE Output) Weight 2.1 kg (4.6 lb) Supported Rack Depth 400~1200 mm (15.7-47.2″) LCM Display 1.3″ touchscreen Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing Etherlighting™ Ethernet SFP+ NDAA Compliant Certifications CE, FCC, IC, Anatel: 08953-24-08356 PoE Ports PoE+ 12 PoE PortsPoE+ 12 PoE++ 4 PoE++ 4 Max. PoE Wattage per Port by PSE Max. PoE Wattage per Port by PSE PoE 15.4W PoE 15.4W PoE+ 32W PoE+ 32W PoE++ 64W PoE++ 64W Max. Power Consumption 25W (Excluding PoE Output) 210W (Including PoE Output) Max. Power Consumption 25W (Excluding PoE Output) 210W (Including PoE Output) Power Supply AC/DC, external, 210W Power Supply AC/DC, external, 210W Supported Voltage Range 50—54V DC Supported Voltage Range 50—54V DC Management Ethernet AR Management Ethernet AR Heat Dissipation 68 BTU/hr (Excluding PoE Output) Heat Dissipation 68 BTU/hr (Excluding PoE Output) Weight 2.1 kg (4.6 lb) Weight 2.1 kg (4.6 lb) Supported Rack Depth 400~1200 mm (15.7-47.2″) Supported Rack Depth 400~1200 mm (15.7-47.2″) LCM Display 1.3″ touchscreen LCM Display 1.3″ touchscreen Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing Ambient Operating Humidity 10 to 90% noncondensing Etherlighting™ Etherlighting™ Ethernet Ethernet SFP+ SFP+ NDAA Compliant NDAA Compliant Certifications CE, FCC, IC, Anatel: 08953-24-08356 Certifications CE, FCC, IC, Anatel: 08953-24-08356 CE, FCC, IC, Anatel: 08953-24-08356 Software Application Requirements UniFi Network Version 8.1.127 and later Application Requirements UniFi Network Version 8.1.127 and later Application Requirements UniFi Network Version 8.1.127 and later Application Requirements Application Requirements UniFi Network Version 8.1.127 and later UniFi Network Version 8.1.127 and later
