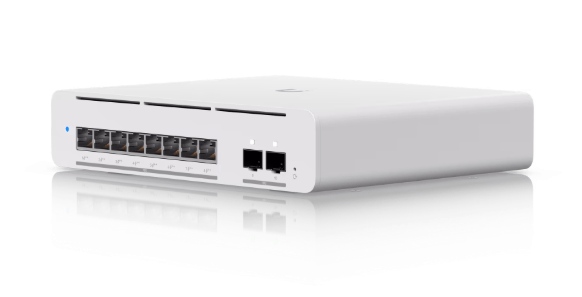

Pro XG 8 PoE

Dimensions 210.4 x 173.8 x 43.7 mm (8.28 x 6.84 x 1.7″) Port Layout 10 GbE RJ45 8 (All PoE++) (10G/5G/2.5G/1G/100M) 10G SFP+ 2 (10G/1G) Max. PoE Output Up to PoE++ Total PoE Availability 155W Layer 3 ✓ Form Factor Compact desktop, wall Etherlighting™ ✓ Performance Switching Capacity 200 Gbps Total Non-Blocking Throughput 100 Gbps Forwarding Rate 149 Mpps Supported VLANs 1,000 MAC Address Table Size 32,000 L3 Table Size ARP Entries 12,000 IPv4 Routes 12,000 Packet Buffer Size 2 MB Access Lists IPv4 128 MAC 128 Layer 3 Features DHCP Server (Local Networks) ✓ DHCP Relay ✓ Inter-VLAN Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ Layer 2 Features LACP Port Aggregation ✓ STP & RSTP ✓ QoS (DSCP) ✓ Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ 802.1X Control ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ Storm Control ✓ Multicast & Broadcast Rate Limiting ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ Virtual Network Override ✓ Hardware PoE Ports PoE++ 8 Max. PoE Wattage per Port by PSE PoE 15.4W PoE+ 30W PoE++ 60W Max. Power Consumption 61W (Excluding PoE output) 210W (Including PoE output) Power Method AC/DC Adapter (included) Power Input Method DC input Power Supply AC/DC, external, 210W Supported Voltage Range 50—57V DC Management Ethernet Weight 1.6 kg (3.5 lb) Enclosure Material SGCC steel Mount Material Polycarbonate ESD Protection Air: ± 30kV, contact: ± 30kV Ambient Operating Temperature -5 to 45° C (23 to 113° F) Ambient Operating Humidity 10 to 90% noncondensing Etherlighting™ Ethernet ✓ SFP+ ✓ LEDs System ✓ NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 04322-25-08356 Software Application Requirements UniFi Network Version 9.0.114 and later Dimensions 210.4 x 173.8 x 43.7 mm (8.28 x 6.84 x 1.7″) Port Layout 10 GbE RJ45 8 (All PoE++) (10G/5G/2.5G/1G/100M) 10G SFP+ 2 (10G/1G) Max. PoE Output Up to PoE++ Total PoE Availability 155W Layer 3 ✓ Form Factor Compact desktop, wall Etherlighting™ ✓ Dimensions 210.4 x 173.8 x 43.7 mm (8.28 x 6.84 x 1.7″) Port Layout 10 GbE RJ45 8 (All PoE++) (10G/5G/2.5G/1G/100M) 10G SFP+ 2 (10G/1G) Max. PoE Output Up to PoE++ Total PoE Availability 155W Layer 3 ✓ Form Factor Compact desktop, wall Etherlighting™ ✓ Dimensions 210.4 x 173.8 x 43.7 mm (8.28 x 6.84 x 1.7″) Port Layout 10 GbE RJ45 8 (All PoE++) (10G/5G/2.5G/1G/100M) 10G SFP+ 2 (10G/1G) Max. PoE Output Up to PoE++ Total PoE Availability 155W Layer 3 ✓ Form Factor Compact desktop, wall Etherlighting™ ✓ Dimensions 210.4 x 173.8 x 43.7 mm (8.28 x 6.84 x 1.7″) Dimensions 210.4 x 173.8 x 43.7 mm (8.28 x 6.84 x 1.7″) 210.4 x 173.8 x 43.7 mm (8.28 x 6.84 x 1.7″) Port Layout Port Layout 10 GbE RJ45 8 (All PoE++) (10G/5G/2.5G/1G/100M) 10 GbE RJ45 8 (All PoE++) (10G/5G/2.5G/1G/100M) 8 (All PoE++) (10G/5G/2.5G/1G/100M) 10G SFP+ 2 (10G/1G) 10G SFP+ 2 (10G/1G) 2 (10G/1G) Max. PoE Output Up to PoE++ Max. PoE Output Up to PoE++ Up to PoE++ Total PoE Availability 155W Total PoE Availability 155W 155W Layer 3 ✓ Layer 3 ✓ ✓ Form Factor Compact desktop, wall Form Factor Compact desktop, wall Compact desktop, wall Etherlighting™ ✓ Etherlighting™ ✓ ✓ Performance Switching Capacity 200 Gbps Total Non-Blocking Throughput 100 Gbps Forwarding Rate 149 Mpps Supported VLANs 1,000 MAC Address Table Size 32,000 L3 Table Size ARP Entries 12,000 IPv4 Routes 12,000 Packet Buffer Size 2 MB Access Lists IPv4 128 MAC 128 Switching Capacity 200 Gbps Total Non-Blocking Throughput 100 Gbps Forwarding Rate 149 Mpps Supported VLANs 1,000 MAC Address Table Size 32,000 L3 Table Size ARP Entries 12,000 IPv4 Routes 12,000 Packet Buffer Size 2 MB Access Lists IPv4 128 MAC 128 Switching Capacity 200 Gbps Total Non-Blocking Throughput 100 Gbps Forwarding Rate 149 Mpps Supported VLANs 1,000 MAC Address Table Size 32,000 L3 Table Size ARP Entries 12,000 IPv4 Routes 12,000 Packet Buffer Size 2 MB Access Lists IPv4 128 MAC 128 Switching Capacity 200 Gbps Switching Capacity 200 Gbps 200 Gbps Total Non-Blocking Throughput 100 Gbps Total Non-Blocking Throughput 100 Gbps 100 Gbps Forwarding Rate 149 Mpps Forwarding Rate 149 Mpps 149 Mpps Supported VLANs 1,000 Supported VLANs 1,000 1,000 MAC Address Table Size 32,000 MAC Address Table Size 32,000 32,000 L3 Table Size L3 Table Size ARP Entries 12,000 ARP Entries 12,000 12,000 IPv4 Routes 12,000 IPv4 Routes 12,000 12,000 Packet Buffer Size 2 MB Packet Buffer Size 2 MB 2 MB Access Lists Access Lists IPv4 128 IPv4 128 128 MAC 128 MAC 128 128 Layer 3 Features DHCP Server (Local Networks) ✓ DHCP Relay ✓ Inter-VLAN Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ DHCP Server (Local Networks) ✓ DHCP Relay ✓ Inter-VLAN Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ DHCP Server (Local Networks) ✓ DHCP Relay ✓ Inter-VLAN Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ DHCP Server (Local Networks) ✓ DHCP Server (Local Networks) ✓ ✓ DHCP Relay ✓ DHCP Relay ✓ ✓ Inter-VLAN Routing (Local Networks) ✓ Inter-VLAN Routing (Local Networks) ✓ ✓ Static Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ ✓ Layer 2 Features LACP Port Aggregation ✓ STP & RSTP ✓ QoS (DSCP) ✓ Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ 802.1X Control ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ Storm Control ✓ Multicast & Broadcast Rate Limiting ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ Virtual Network Override ✓ LACP Port Aggregation ✓ STP & RSTP ✓ QoS (DSCP) ✓ Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ 802.1X Control ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ Storm Control ✓ Multicast & Broadcast Rate Limiting ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ Virtual Network Override ✓ LACP Port Aggregation ✓ STP & RSTP ✓ QoS (DSCP) ✓ Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ 802.1X Control ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ Storm Control ✓ Multicast & Broadcast Rate Limiting ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ Virtual Network Override ✓ LACP Port Aggregation ✓ LACP Port Aggregation ✓ ✓ STP & RSTP ✓ STP & RSTP ✓ ✓ QoS (DSCP) ✓ QoS (DSCP) ✓ ✓ Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) ✓ Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) ✓ ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ ✓ IGMP Snooping ✓ IGMP Snooping ✓ ✓ 802.1X Control ✓ 802.1X Control ✓ ✓ MAC-Based ACLs & Device Isolation ✓ MAC-Based ACLs & Device Isolation ✓ ✓ DHCP Snooping & Guarding ✓ DHCP Snooping & Guarding ✓ ✓ Egress Rate Limit ✓ Egress Rate Limit ✓ ✓ Flow Control ✓ Flow Control ✓ ✓ Storm Control ✓ Storm Control ✓ ✓ Multicast & Broadcast Rate Limiting ✓ Multicast & Broadcast Rate Limiting ✓ ✓ MAC Address Blocking ✓ MAC Address Blocking ✓ ✓ IP-Based ACLs & Network Isolation ✓ IP-Based ACLs & Network Isolation ✓ ✓ MAC-Based Port Restriction ✓ MAC-Based Port Restriction ✓ ✓ Port Isolation ✓ Port Isolation ✓ ✓ Port Mirroring ✓ Port Mirroring ✓ ✓ Jumbo Frames ✓ Jumbo Frames ✓ ✓ LLDP-MED ✓ LLDP-MED ✓ ✓ Voice VLAN ✓ Voice VLAN ✓ ✓ Loop Protection ✓ Loop Protection ✓ ✓ Virtual Network Override ✓ Virtual Network Override ✓ ✓ Hardware PoE Ports PoE++ 8 Max. PoE Wattage per Port by PSE PoE 15.4W PoE+ 30W PoE++ 60W Max. Power Consumption 61W (Excluding PoE output) 210W (Including PoE output) Power Method AC/DC Adapter (included) Power Input Method DC input Power Supply AC/DC, external, 210W Supported Voltage Range 50—57V DC Management Ethernet Weight 1.6 kg (3.5 lb) Enclosure Material SGCC steel Mount Material Polycarbonate ESD Protection Air: ± 30kV, contact: ± 30kV Ambient Operating Temperature -5 to 45° C (23 to 113° F) Ambient Operating Humidity 10 to 90% noncondensing Etherlighting™ Ethernet ✓ SFP+ ✓ LEDs System ✓ NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 04322-25-08356 PoE Ports PoE++ 8 Max. PoE Wattage per Port by PSE PoE 15.4W PoE+ 30W PoE++ 60W Max. Power Consumption 61W (Excluding PoE output) 210W (Including PoE output) Power Method AC/DC Adapter (included) Power Input Method DC input Power Supply AC/DC, external, 210W Supported Voltage Range 50—57V DC Management Ethernet Weight 1.6 kg (3.5 lb) Enclosure Material SGCC steel Mount Material Polycarbonate ESD Protection Air: ± 30kV, contact: ± 30kV Ambient Operating Temperature -5 to 45° C (23 to 113° F) Ambient Operating Humidity 10 to 90% noncondensing Etherlighting™ Ethernet ✓ SFP+ ✓ LEDs System ✓ NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 04322-25-08356 PoE Ports PoE++ 8 Max. PoE Wattage per Port by PSE PoE 15.4W PoE+ 30W PoE++ 60W Max. Power Consumption 61W (Excluding PoE output) 210W (Including PoE output) Power Method AC/DC Adapter (included) Power Input Method DC input Power Supply AC/DC, external, 210W Supported Voltage Range 50—57V DC Management Ethernet Weight 1.6 kg (3.5 lb) Enclosure Material SGCC steel Mount Material Polycarbonate ESD Protection Air: ± 30kV, contact: ± 30kV Ambient Operating Temperature -5 to 45° C (23 to 113° F) Ambient Operating Humidity 10 to 90% noncondensing Etherlighting™ Ethernet ✓ SFP+ ✓ LEDs System ✓ NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 04322-25-08356 PoE Ports PoE Ports PoE++ 8 PoE++ 8 8 Max. PoE Wattage per Port by PSE Max. PoE Wattage per Port by PSE PoE 15.4W PoE 15.4W 15.4W PoE+ 30W PoE+ 30W 30W PoE++ 60W PoE++ 60W 60W Max. Power Consumption 61W (Excluding PoE output) 210W (Including PoE output) Max. Power Consumption 61W (Excluding PoE output) 210W (Including PoE output) 61W (Excluding PoE output) 210W (Including PoE output) Power Method AC/DC Adapter (included) Power Method AC/DC Adapter (included) AC/DC Adapter (included) Power Input Method DC input Power Input Method DC input DC input Power Supply AC/DC, external, 210W Power Supply AC/DC, external, 210W AC/DC, external, 210W Supported Voltage Range 50—57V DC Supported Voltage Range 50—57V DC 50—57V DC Management Ethernet Management Ethernet Ethernet Weight 1.6 kg (3.5 lb) Weight 1.6 kg (3.5 lb) 1.6 kg (3.5 lb) Enclosure Material SGCC steel Enclosure Material SGCC steel SGCC steel Mount Material Polycarbonate Mount Material Polycarbonate Polycarbonate ESD Protection Air: ± 30kV, contact: ± 30kV ESD Protection Air: ± 30kV, contact: ± 30kV Air: ± 30kV, contact: ± 30kV Ambient Operating Temperature -5 to 45° C (23 to 113° F) Ambient Operating Temperature -5 to 45° C (23 to 113° F) -5 to 45° C (23 to 113° F) Ambient Operating Humidity 10 to 90% noncondensing Ambient Operating Humidity 10 to 90% noncondensing 10 to 90% noncondensing Etherlighting™ Etherlighting™ Ethernet ✓ Ethernet ✓ ✓ SFP+ ✓ SFP+ ✓ ✓ LEDs LEDs System ✓ System ✓ ✓ NDAA Compliant ✓ NDAA Compliant ✓ ✓ Certifications CE, FCC, IC, Anatel: 04322-25-08356 Certifications CE, FCC, IC, Anatel: 04322-25-08356 CE, FCC, IC, Anatel: 04322-25-08356 Software Application Requirements UniFi Network Version 9.0.114 and later Application Requirements UniFi Network Version 9.0.114 and later Application Requirements UniFi Network Version 9.0.114 and later Application Requirements Application Requirements UniFi Network Version 9.0.114 and later UniFi Network Version 9.0.114 and later Version 9.0.114 and later
