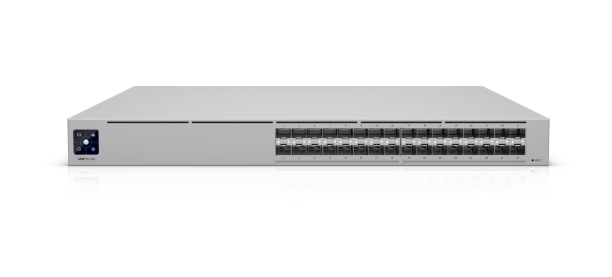

Pro XG Aggregation

Dimensions 442.4 x 43.7 x 480 mm (17.4 x 1.7 x 18.9″) Port Layout 25G SFP28 32 (25G/10G/1G) Redundancy DC Power Backup Layer 3 ✓ Form Factor Rack Mount (1U) Etherlighting™ ✓ Performance Switching Capacity 1.6 Tbps Total Non-Blocking Throughput 800 Gbps Forwarding Rate 1.2 Bpps Supported VLANs 1,000 MAC Address Table Size 32,000 L3 Table Size ARP Entries 128,000 IPv4 Routes 256,000 Packet Buffer Size 8 MB Access Lists IPv4 256 MAC 256 Layer 3 Features DHCP Server (Local Networks) ✓ DHCP Relay ✓ Inter-VLAN Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ Layer 2 Features LACP Port Aggregation ✓ STP & RSTP ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ 802.1X Control ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ Storm Control ✓ Multicast & Broadcast Rate Limiting ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ Virtual Network Override ✓ Hardware Max. Power Consumption 200W Power Method (1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input Power Input Method AC input Power Supply AC/DC, internal, 200W Supported Voltage Range 100—240V AC Management Ethernet AR Heat Dissipation 457 BTU/hr Weight Without mounting bracket: 7.1 kg (15.7 lbs) With mounting bracket:7.2 kg (15.9 lbs) Enclosure Material SGCC steel Mount Material SGCC steel Supported Rack Depth 482.6 mm (19″) four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”) LCM Display 1.3″ touchscreen ESD Protection Air: ± 12kV, contact: ± 8kV Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing Etherlighting™ SFP28 ✓ LEDs RPS ✓ NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 05977-25-08356 Dimensions 442.4 x 43.7 x 480 mm (17.4 x 1.7 x 18.9″) Port Layout 25G SFP28 32 (25G/10G/1G) Redundancy DC Power Backup Layer 3 ✓ Form Factor Rack Mount (1U) Etherlighting™ ✓ Dimensions 442.4 x 43.7 x 480 mm (17.4 x 1.7 x 18.9″) Port Layout 25G SFP28 32 (25G/10G/1G) Redundancy DC Power Backup Layer 3 ✓ Form Factor Rack Mount (1U) Etherlighting™ ✓ Dimensions 442.4 x 43.7 x 480 mm (17.4 x 1.7 x 18.9″) Port Layout 25G SFP28 32 (25G/10G/1G) Redundancy DC Power Backup Layer 3 ✓ Form Factor Rack Mount (1U) Etherlighting™ ✓ Dimensions 442.4 x 43.7 x 480 mm (17.4 x 1.7 x 18.9″) Dimensions 442.4 x 43.7 x 480 mm (17.4 x 1.7 x 18.9″) 442.4 x 43.7 x 480 mm (17.4 x 1.7 x 18.9″) Port Layout Port Layout 25G SFP28 32 (25G/10G/1G) 25G SFP28 32 (25G/10G/1G) 32 (25G/10G/1G) Redundancy DC Power Backup Redundancy DC Power Backup DC Power Backup Layer 3 ✓ Layer 3 ✓ ✓ Form Factor Rack Mount (1U) Form Factor Rack Mount (1U) Rack Mount (1U) Etherlighting™ ✓ Etherlighting™ ✓ ✓ Performance Switching Capacity 1.6 Tbps Total Non-Blocking Throughput 800 Gbps Forwarding Rate 1.2 Bpps Supported VLANs 1,000 MAC Address Table Size 32,000 L3 Table Size ARP Entries 128,000 IPv4 Routes 256,000 Packet Buffer Size 8 MB Access Lists IPv4 256 MAC 256 Switching Capacity 1.6 Tbps Total Non-Blocking Throughput 800 Gbps Forwarding Rate 1.2 Bpps Supported VLANs 1,000 MAC Address Table Size 32,000 L3 Table Size ARP Entries 128,000 IPv4 Routes 256,000 Packet Buffer Size 8 MB Access Lists IPv4 256 MAC 256 Switching Capacity 1.6 Tbps Total Non-Blocking Throughput 800 Gbps Forwarding Rate 1.2 Bpps Supported VLANs 1,000 MAC Address Table Size 32,000 L3 Table Size ARP Entries 128,000 IPv4 Routes 256,000 Packet Buffer Size 8 MB Access Lists IPv4 256 MAC 256 Switching Capacity 1.6 Tbps Switching Capacity 1.6 Tbps 1.6 Tbps Total Non-Blocking Throughput 800 Gbps Total Non-Blocking Throughput 800 Gbps 800 Gbps Forwarding Rate 1.2 Bpps Forwarding Rate 1.2 Bpps 1.2 Bpps Supported VLANs 1,000 Supported VLANs 1,000 1,000 MAC Address Table Size 32,000 MAC Address Table Size 32,000 32,000 L3 Table Size L3 Table Size ARP Entries 128,000 ARP Entries 128,000 128,000 IPv4 Routes 256,000 IPv4 Routes 256,000 256,000 Packet Buffer Size 8 MB Packet Buffer Size 8 MB 8 MB Access Lists Access Lists IPv4 256 IPv4 256 256 MAC 256 MAC 256 256 Layer 3 Features DHCP Server (Local Networks) ✓ DHCP Relay ✓ Inter-VLAN Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ DHCP Server (Local Networks) ✓ DHCP Relay ✓ Inter-VLAN Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ DHCP Server (Local Networks) ✓ DHCP Relay ✓ Inter-VLAN Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ DHCP Server (Local Networks) ✓ DHCP Server (Local Networks) ✓ ✓ DHCP Relay ✓ DHCP Relay ✓ ✓ Inter-VLAN Routing (Local Networks) ✓ Inter-VLAN Routing (Local Networks) ✓ ✓ Static Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ ✓ Layer 2 Features LACP Port Aggregation ✓ STP & RSTP ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ 802.1X Control ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ Storm Control ✓ Multicast & Broadcast Rate Limiting ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ Virtual Network Override ✓ LACP Port Aggregation ✓ STP & RSTP ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ 802.1X Control ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ Storm Control ✓ Multicast & Broadcast Rate Limiting ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ Virtual Network Override ✓ LACP Port Aggregation ✓ STP & RSTP ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ 802.1X Control ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ Storm Control ✓ Multicast & Broadcast Rate Limiting ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ Virtual Network Override ✓ LACP Port Aggregation ✓ LACP Port Aggregation ✓ ✓ STP & RSTP ✓ STP & RSTP ✓ ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ ✓ IGMP Snooping ✓ IGMP Snooping ✓ ✓ 802.1X Control ✓ 802.1X Control ✓ ✓ MAC-Based ACLs & Device Isolation ✓ MAC-Based ACLs & Device Isolation ✓ ✓ DHCP Snooping & Guarding ✓ DHCP Snooping & Guarding ✓ ✓ Egress Rate Limit ✓ Egress Rate Limit ✓ ✓ Flow Control ✓ Flow Control ✓ ✓ Storm Control ✓ Storm Control ✓ ✓ Multicast & Broadcast Rate Limiting ✓ Multicast & Broadcast Rate Limiting ✓ ✓ MAC Address Blocking ✓ MAC Address Blocking ✓ ✓ IP-Based ACLs & Network Isolation ✓ IP-Based ACLs & Network Isolation ✓ ✓ MAC-Based Port Restriction ✓ MAC-Based Port Restriction ✓ ✓ Port Isolation ✓ Port Isolation ✓ ✓ Port Mirroring ✓ Port Mirroring ✓ ✓ Jumbo Frames ✓ Jumbo Frames ✓ ✓ LLDP-MED ✓ LLDP-MED ✓ ✓ Voice VLAN ✓ Voice VLAN ✓ ✓ Loop Protection ✓ Loop Protection ✓ ✓ Virtual Network Override ✓ Virtual Network Override ✓ ✓ Hardware Max. Power Consumption 200W Power Method (1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input Power Input Method AC input Power Supply AC/DC, internal, 200W Supported Voltage Range 100—240V AC Management Ethernet AR Heat Dissipation 457 BTU/hr Weight Without mounting bracket: 7.1 kg (15.7 lbs) With mounting bracket:7.2 kg (15.9 lbs) Enclosure Material SGCC steel Mount Material SGCC steel Supported Rack Depth 482.6 mm (19″) four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”) LCM Display 1.3″ touchscreen ESD Protection Air: ± 12kV, contact: ± 8kV Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing Etherlighting™ SFP28 ✓ LEDs RPS ✓ NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 05977-25-08356 Max. Power Consumption 200W Power Method (1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input Power Input Method AC input Power Supply AC/DC, internal, 200W Supported Voltage Range 100—240V AC Management Ethernet AR Heat Dissipation 457 BTU/hr Weight Without mounting bracket: 7.1 kg (15.7 lbs) With mounting bracket:7.2 kg (15.9 lbs) Enclosure Material SGCC steel Mount Material SGCC steel Supported Rack Depth 482.6 mm (19″) four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”) LCM Display 1.3″ touchscreen ESD Protection Air: ± 12kV, contact: ± 8kV Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing Etherlighting™ SFP28 ✓ LEDs RPS ✓ NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 05977-25-08356 Max. Power Consumption 200W Power Method (1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input Power Input Method AC input Power Supply AC/DC, internal, 200W Supported Voltage Range 100—240V AC Management Ethernet AR Heat Dissipation 457 BTU/hr Weight Without mounting bracket: 7.1 kg (15.7 lbs) With mounting bracket:7.2 kg (15.9 lbs) Enclosure Material SGCC steel Mount Material SGCC steel Supported Rack Depth 482.6 mm (19″) four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”) LCM Display 1.3″ touchscreen ESD Protection Air: ± 12kV, contact: ± 8kV Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing Etherlighting™ SFP28 ✓ LEDs RPS ✓ NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 05977-25-08356 Max. Power Consumption 200W Max. Power Consumption 200W 200W Power Method (1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input Power Method (1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input (1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input Power Input Method AC input Power Input Method AC input AC input Power Supply AC/DC, internal, 200W Power Supply AC/DC, internal, 200W AC/DC, internal, 200W Supported Voltage Range 100—240V AC Supported Voltage Range 100—240V AC 100—240V AC Management Ethernet AR Management Ethernet AR Ethernet AR Heat Dissipation 457 BTU/hr Heat Dissipation 457 BTU/hr 457 BTU/hr Weight Without mounting bracket: 7.1 kg (15.7 lbs) With mounting bracket:7.2 kg (15.9 lbs) Weight Without mounting bracket: 7.1 kg (15.7 lbs) With mounting bracket:7.2 kg (15.9 lbs) Without mounting bracket: 7.1 kg (15.7 lbs) With mounting bracket:7.2 kg (15.9 lbs) Enclosure Material SGCC steel Enclosure Material SGCC steel SGCC steel Mount Material SGCC steel Mount Material SGCC steel SGCC steel Supported Rack Depth 482.6 mm (19″) four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”) Supported Rack Depth 482.6 mm (19″) four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”) 482.6 mm (19″) four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”) LCM Display 1.3″ touchscreen LCM Display 1.3″ touchscreen 1.3″ touchscreen ESD Protection Air: ± 12kV, contact: ± 8kV ESD Protection Air: ± 12kV, contact: ± 8kV Air: ± 12kV, contact: ± 8kV Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Temperature -5 to 40° C (23 to 104° F) -5 to 40° C (23 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing Ambient Operating Humidity 10 to 90% noncondensing 10 to 90% noncondensing Etherlighting™ Etherlighting™ SFP28 ✓ SFP28 ✓ ✓ LEDs LEDs RPS ✓ RPS ✓ ✓ NDAA Compliant ✓ NDAA Compliant ✓ ✓ Certifications CE, FCC, IC, Anatel: 05977-25-08356 Certifications CE, FCC, IC, Anatel: 05977-25-08356 CE, FCC, IC, Anatel: 05977-25-08356
