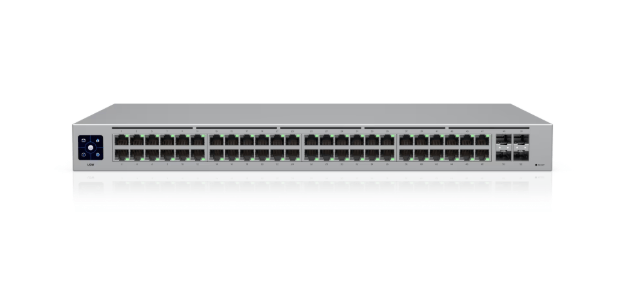

Standard 48

Dimensions 442 x 285 x 44 mm (17.4 x 11.2 x 1.7″) Port Layout 1 GbE RJ45 48 (1G/100M/10M) 1G SFP 4 (1G) Form Factor Rack mount (1U) Performance Switching Capacity 104 Gbps Total Non-Blocking Throughput 52 Gbps Forwarding Rate 77 Mpps Supported VLANs 1,000 MAC Address Table Size 16,000 Packet Buffer Size 1.5 MB Access Lists IPv4 128 MAC 128 Layer 2 Features LACP Port Aggregation ✓ STP & RSTP ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ 802.1X Control ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ Storm Control ✓ Multicast & Broadcast Rate Limiting ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ Virtual Network Override ✓ Hardware Max. Power Consumption 40W Power Method Universal input, 100—240V AC, 50/60 Hz Power Input Method AC input Power Supply AC/DC, internal, 60W Supported Voltage Range 100—240V AC Management Ethernet AR Heat Dissipation 136.5 BTU/hr Weight Without mounting brackets: 3.9 kg (8.6 lb) With mounting brackets: 4 kg (8.8 lb) Enclosure Material SGCC steel Mount Material SGCC steel Supported Rack Depth 400~1200 mm (15.7-47.2″) LCM Display 1.3″ touchscreen Ambient Operating Temperature -15 to 40° C (5 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 17193-20-08356 Software Application Requirements UniFi Network Version 7.2.94 and later Dimensions 442 x 285 x 44 mm (17.4 x 11.2 x 1.7″) Port Layout 1 GbE RJ45 48 (1G/100M/10M) 1G SFP 4 (1G) Form Factor Rack mount (1U) Dimensions 442 x 285 x 44 mm (17.4 x 11.2 x 1.7″) Port Layout 1 GbE RJ45 48 (1G/100M/10M) 1G SFP 4 (1G) Form Factor Rack mount (1U) Dimensions 442 x 285 x 44 mm (17.4 x 11.2 x 1.7″) Port Layout 1 GbE RJ45 48 (1G/100M/10M) 1G SFP 4 (1G) Form Factor Rack mount (1U) Dimensions 442 x 285 x 44 mm (17.4 x 11.2 x 1.7″) Dimensions 442 x 285 x 44 mm (17.4 x 11.2 x 1.7″) 442 x 285 x 44 mm (17.4 x 11.2 x 1.7″) Port Layout Port Layout 1 GbE RJ45 48 (1G/100M/10M) 1 GbE RJ45 48 (1G/100M/10M) 48 (1G/100M/10M) 1G SFP 4 (1G) 1G SFP 4 (1G) 4 (1G) Form Factor Rack mount (1U) Form Factor Rack mount (1U) Rack mount (1U) Performance Switching Capacity 104 Gbps Total Non-Blocking Throughput 52 Gbps Forwarding Rate 77 Mpps Supported VLANs 1,000 MAC Address Table Size 16,000 Packet Buffer Size 1.5 MB Access Lists IPv4 128 MAC 128 Switching Capacity 104 Gbps Total Non-Blocking Throughput 52 Gbps Forwarding Rate 77 Mpps Supported VLANs 1,000 MAC Address Table Size 16,000 Packet Buffer Size 1.5 MB Access Lists IPv4 128 MAC 128 Switching Capacity 104 Gbps Total Non-Blocking Throughput 52 Gbps Forwarding Rate 77 Mpps Supported VLANs 1,000 MAC Address Table Size 16,000 Packet Buffer Size 1.5 MB Access Lists IPv4 128 MAC 128 Switching Capacity 104 Gbps Switching Capacity 104 Gbps 104 Gbps Total Non-Blocking Throughput 52 Gbps Total Non-Blocking Throughput 52 Gbps 52 Gbps Forwarding Rate 77 Mpps Forwarding Rate 77 Mpps 77 Mpps Supported VLANs 1,000 Supported VLANs 1,000 1,000 MAC Address Table Size 16,000 MAC Address Table Size 16,000 16,000 Packet Buffer Size 1.5 MB Packet Buffer Size 1.5 MB 1.5 MB Access Lists Access Lists IPv4 128 IPv4 128 128 MAC 128 MAC 128 128 Layer 2 Features LACP Port Aggregation ✓ STP & RSTP ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ 802.1X Control ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ Storm Control ✓ Multicast & Broadcast Rate Limiting ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ Virtual Network Override ✓ LACP Port Aggregation ✓ STP & RSTP ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ 802.1X Control ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ Storm Control ✓ Multicast & Broadcast Rate Limiting ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ Virtual Network Override ✓ LACP Port Aggregation ✓ STP & RSTP ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ 802.1X Control ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ Storm Control ✓ Multicast & Broadcast Rate Limiting ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ Virtual Network Override ✓ LACP Port Aggregation ✓ LACP Port Aggregation ✓ ✓ STP & RSTP ✓ STP & RSTP ✓ ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ ✓ IGMP Snooping ✓ IGMP Snooping ✓ ✓ 802.1X Control ✓ 802.1X Control ✓ ✓ MAC-Based ACLs & Device Isolation ✓ MAC-Based ACLs & Device Isolation ✓ ✓ DHCP Snooping & Guarding ✓ DHCP Snooping & Guarding ✓ ✓ Egress Rate Limit ✓ Egress Rate Limit ✓ ✓ Flow Control ✓ Flow Control ✓ ✓ Storm Control ✓ Storm Control ✓ ✓ Multicast & Broadcast Rate Limiting ✓ Multicast & Broadcast Rate Limiting ✓ ✓ MAC Address Blocking ✓ MAC Address Blocking ✓ ✓ IP-Based ACLs & Network Isolation ✓ IP-Based ACLs & Network Isolation ✓ ✓ MAC-Based Port Restriction ✓ MAC-Based Port Restriction ✓ ✓ Port Isolation ✓ Port Isolation ✓ ✓ Port Mirroring ✓ Port Mirroring ✓ ✓ Jumbo Frames ✓ Jumbo Frames ✓ ✓ LLDP-MED ✓ LLDP-MED ✓ ✓ Voice VLAN ✓ Voice VLAN ✓ ✓ Loop Protection ✓ Loop Protection ✓ ✓ Virtual Network Override ✓ Virtual Network Override ✓ ✓ Hardware Max. Power Consumption 40W Power Method Universal input, 100—240V AC, 50/60 Hz Power Input Method AC input Power Supply AC/DC, internal, 60W Supported Voltage Range 100—240V AC Management Ethernet AR Heat Dissipation 136.5 BTU/hr Weight Without mounting brackets: 3.9 kg (8.6 lb) With mounting brackets: 4 kg (8.8 lb) Enclosure Material SGCC steel Mount Material SGCC steel Supported Rack Depth 400~1200 mm (15.7-47.2″) LCM Display 1.3″ touchscreen Ambient Operating Temperature -15 to 40° C (5 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 17193-20-08356 Max. Power Consumption 40W Power Method Universal input, 100—240V AC, 50/60 Hz Power Input Method AC input Power Supply AC/DC, internal, 60W Supported Voltage Range 100—240V AC Management Ethernet AR Heat Dissipation 136.5 BTU/hr Weight Without mounting brackets: 3.9 kg (8.6 lb) With mounting brackets: 4 kg (8.8 lb) Enclosure Material SGCC steel Mount Material SGCC steel Supported Rack Depth 400~1200 mm (15.7-47.2″) LCM Display 1.3″ touchscreen Ambient Operating Temperature -15 to 40° C (5 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 17193-20-08356 Max. Power Consumption 40W Power Method Universal input, 100—240V AC, 50/60 Hz Power Input Method AC input Power Supply AC/DC, internal, 60W Supported Voltage Range 100—240V AC Management Ethernet AR Heat Dissipation 136.5 BTU/hr Weight Without mounting brackets: 3.9 kg (8.6 lb) With mounting brackets: 4 kg (8.8 lb) Enclosure Material SGCC steel Mount Material SGCC steel Supported Rack Depth 400~1200 mm (15.7-47.2″) LCM Display 1.3″ touchscreen Ambient Operating Temperature -15 to 40° C (5 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 17193-20-08356 Max. Power Consumption 40W Max. Power Consumption 40W 40W Power Method Universal input, 100—240V AC, 50/60 Hz Power Method Universal input, 100—240V AC, 50/60 Hz Universal input, 100—240V AC, 50/60 Hz Power Input Method AC input Power Input Method AC input AC input Power Supply AC/DC, internal, 60W Power Supply AC/DC, internal, 60W AC/DC, internal, 60W Supported Voltage Range 100—240V AC Supported Voltage Range 100—240V AC 100—240V AC Management Ethernet AR Management Ethernet AR Ethernet AR Heat Dissipation 136.5 BTU/hr Heat Dissipation 136.5 BTU/hr 136.5 BTU/hr Weight Without mounting brackets: 3.9 kg (8.6 lb) With mounting brackets: 4 kg (8.8 lb) Weight Without mounting brackets: 3.9 kg (8.6 lb) With mounting brackets: 4 kg (8.8 lb) Without mounting brackets: 3.9 kg (8.6 lb) With mounting brackets: 4 kg (8.8 lb) Enclosure Material SGCC steel Enclosure Material SGCC steel SGCC steel Mount Material SGCC steel Mount Material SGCC steel SGCC steel Supported Rack Depth 400~1200 mm (15.7-47.2″) Supported Rack Depth 400~1200 mm (15.7-47.2″) 400~1200 mm (15.7-47.2″) LCM Display 1.3″ touchscreen LCM Display 1.3″ touchscreen 1.3″ touchscreen Ambient Operating Temperature -15 to 40° C (5 to 104° F) Ambient Operating Temperature -15 to 40° C (5 to 104° F) -15 to 40° C (5 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing Ambient Operating Humidity 10 to 90% noncondensing 10 to 90% noncondensing NDAA Compliant ✓ NDAA Compliant ✓ ✓ Certifications CE, FCC, IC, Anatel: 17193-20-08356 Certifications CE, FCC, IC, Anatel: 17193-20-08356 CE, FCC, IC, Anatel: 17193-20-08356 Software Application Requirements UniFi Network Version 7.2.94 and later Application Requirements UniFi Network Version 7.2.94 and later Application Requirements UniFi Network Version 7.2.94 and later Application Requirements Application Requirements UniFi Network Version 7.2.94 and later UniFi Network Version 7.2.94 and later Version 7.2.94 and later
