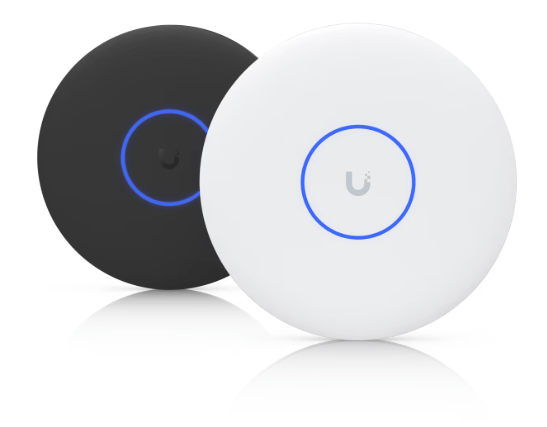

U7 Pro XGS
€310.80
sold out
Dimensions Ø215 x 32.5 mm (Ø8.5 x 1.3″) WiFi Standard WiFi 7 Spatial Streams 8 Coverage Area 160 m² (1,750 ft²) Max. Client Count 500+ Uplink 10 GbE Mounting Ceiling, Wall (Lite Mount Included) Power Method PoE++ Performance MIMO 6 GHz 2 x 2 (DL/UL MU-MIMO) 5 GHz 4 x 4 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) Max. Data Rate 6 GHz 5.8 Gbps (BW320) 5 GHz 8.6 Gbps (BW240) 2.4 GHz 688 Mbps (BW40) Antenna Gain 6 GHz 6 dBi 5 GHz 6 dBi 2.4 GHz 4 dBi Max. TX Power 6 GHz 24 dBm 5 GHz 29 dBm 2.4 GHz 23 dBm Max. BSSIDs 8 per Radio Supported Data Rates 802.11be (WiFi 7) 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) Features Wireless Meshing ✓ Band Steering ✓ 802.11v BSS Transition Management ✓ 802.11r Fast Roaming ✓ 802.11k Radio Resource Management (RRM) ✓ Zero-Wait DFS ✓ Advanced Radio Management ✓ Real-Time Spectral Analysis ✓ Passpoint (Hotspot 2.0) ✓ Captive Hotspot Portal Custom Branding Landing Page ✓ Voucher Authentication ✓ Payment-Based Authentication ✓ External Portal Server Support ✓ Password Authentication ✓ Guest Network Isolation ✓ Private Pre-Shared Key (PPSK) ✓ WiFi Speed Limiting ✓ Client Device Isolation ✓ WiFi Schedules ✓ RADIUS over TLS (RadSec) ✓ Dynamic RADIUS-assigned VLAN ✓ Hardware Max. Power Consumption 29W Supported Voltage Range 42.5—57V DC Networking Interface (1) 10 GbE RJ45 port Weight 800 g (1.8 lb) Management Ethernet Enclosure Material UV-stabilized polycarbonate, aluminum alloy Mount Material Stainless steel (SUS304), galvanized steel (SGCC) LEDs System White/Blue Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 05123-25-08356 Operating Frequency US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz U-NII-5 to U-NII-8 : 5925 – 7125 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz 5925 – 7125 MHz Ambient Operating Temperature -30 to 40° C (-22 to 104° F) Ambient Operating Humidity 5 to 95% noncondensing Software Application Requirements UniFi Network Version 9.0.114 and later (U7 Pro XGS – White) Version 9.1.120 and later (U7 Pro XGS – Black) Dimensions Ø215 x 32.5 mm (Ø8.5 x 1.3″) WiFi Standard WiFi 7 Spatial Streams 8 Coverage Area 160 m² (1,750 ft²) Max. Client Count 500+ Uplink 10 GbE Mounting Ceiling, Wall (Lite Mount Included) Power Method PoE++ Dimensions Ø215 x 32.5 mm (Ø8.5 x 1.3″) WiFi Standard WiFi 7 Spatial Streams 8 Coverage Area 160 m² (1,750 ft²) Max. Client Count 500+ Uplink 10 GbE Mounting Ceiling, Wall (Lite Mount Included) Power Method PoE++ Dimensions Ø215 x 32.5 mm (Ø8.5 x 1.3″) WiFi Standard WiFi 7 Spatial Streams 8 Coverage Area 160 m² (1,750 ft²) Max. Client Count 500+ Uplink 10 GbE Mounting Ceiling, Wall (Lite Mount Included) Power Method PoE++ Dimensions Ø215 x 32.5 mm (Ø8.5 x 1.3″) Dimensions Ø215 x 32.5 mm (Ø8.5 x 1.3″) Ø215 x 32.5 mm (Ø8.5 x 1.3″) WiFi Standard WiFi 7 WiFi Standard WiFi 7 WiFi 7 Spatial Streams 8 Spatial Streams 8 8 Coverage Area 160 m² (1,750 ft²) Coverage Area 160 m² (1,750 ft²) 160 m² (1,750 ft²) Max. Client Count 500+ Max. Client Count 500+ 500+ Uplink 10 GbE Uplink 10 GbE 10 GbE Mounting Ceiling, Wall (Lite Mount Included) Mounting Ceiling, Wall (Lite Mount Included) Ceiling, Wall (Lite Mount Included) Power Method PoE++ Power Method PoE++ PoE++ Performance MIMO 6 GHz 2 x 2 (DL/UL MU-MIMO) 5 GHz 4 x 4 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) Max. Data Rate 6 GHz 5.8 Gbps (BW320) 5 GHz 8.6 Gbps (BW240) 2.4 GHz 688 Mbps (BW40) Antenna Gain 6 GHz 6 dBi 5 GHz 6 dBi 2.4 GHz 4 dBi Max. TX Power 6 GHz 24 dBm 5 GHz 29 dBm 2.4 GHz 23 dBm Max. BSSIDs 8 per Radio Supported Data Rates 802.11be (WiFi 7) 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) MIMO 6 GHz 2 x 2 (DL/UL MU-MIMO) 5 GHz 4 x 4 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) Max. Data Rate 6 GHz 5.8 Gbps (BW320) 5 GHz 8.6 Gbps (BW240) 2.4 GHz 688 Mbps (BW40) Antenna Gain 6 GHz 6 dBi 5 GHz 6 dBi 2.4 GHz 4 dBi Max. TX Power 6 GHz 24 dBm 5 GHz 29 dBm 2.4 GHz 23 dBm Max. BSSIDs 8 per Radio Supported Data Rates 802.11be (WiFi 7) 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) MIMO 6 GHz 2 x 2 (DL/UL MU-MIMO) 5 GHz 4 x 4 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) Max. Data Rate 6 GHz 5.8 Gbps (BW320) 5 GHz 8.6 Gbps (BW240) 2.4 GHz 688 Mbps (BW40) Antenna Gain 6 GHz 6 dBi 5 GHz 6 dBi 2.4 GHz 4 dBi Max. TX Power 6 GHz 24 dBm 5 GHz 29 dBm 2.4 GHz 23 dBm Max. BSSIDs 8 per Radio Supported Data Rates 802.11be (WiFi 7) 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) MIMO MIMO 6 GHz 2 x 2 (DL/UL MU-MIMO) 6 GHz 2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) 5 GHz 4 x 4 (DL/UL MU-MIMO) 5 GHz 4 x 4 (DL/UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) Max. Data Rate Max. Data Rate 6 GHz 5.8 Gbps (BW320) 6 GHz 5.8 Gbps (BW320) 5.8 Gbps (BW320) 5 GHz 8.6 Gbps (BW240) 5 GHz 8.6 Gbps (BW240) 8.6 Gbps (BW240) 2.4 GHz 688 Mbps (BW40) 2.4 GHz 688 Mbps (BW40) 688 Mbps (BW40) Antenna Gain Antenna Gain 6 GHz 6 dBi 6 GHz 6 dBi 6 dBi 5 GHz 6 dBi 5 GHz 6 dBi 6 dBi 2.4 GHz 4 dBi 2.4 GHz 4 dBi 4 dBi Max. TX Power Max. TX Power 6 GHz 24 dBm 6 GHz 24 dBm 24 dBm 5 GHz 29 dBm 5 GHz 29 dBm 29 dBm 2.4 GHz 23 dBm 2.4 GHz 23 dBm 23 dBm Max. BSSIDs 8 per Radio Max. BSSIDs 8 per Radio 8 per Radio Supported Data Rates Supported Data Rates 802.11be (WiFi 7) 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 802.11be (WiFi 7) 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) Features Wireless Meshing ✓ Band Steering ✓ 802.11v BSS Transition Management ✓ 802.11r Fast Roaming ✓ 802.11k Radio Resource Management (RRM) ✓ Zero-Wait DFS ✓ Advanced Radio Management ✓ Real-Time Spectral Analysis ✓ Passpoint (Hotspot 2.0) ✓ Captive Hotspot Portal Custom Branding Landing Page ✓ Voucher Authentication ✓ Payment-Based Authentication ✓ External Portal Server Support ✓ Password Authentication ✓ Guest Network Isolation ✓ Private Pre-Shared Key (PPSK) ✓ WiFi Speed Limiting ✓ Client Device Isolation ✓ WiFi Schedules ✓ RADIUS over TLS (RadSec) ✓ Dynamic RADIUS-assigned VLAN ✓ Wireless Meshing ✓ Band Steering ✓ 802.11v BSS Transition Management ✓ 802.11r Fast Roaming ✓ 802.11k Radio Resource Management (RRM) ✓ Zero-Wait DFS ✓ Advanced Radio Management ✓ Real-Time Spectral Analysis ✓ Passpoint (Hotspot 2.0) ✓ Captive Hotspot Portal Custom Branding Landing Page ✓ Voucher Authentication ✓ Payment-Based Authentication ✓ External Portal Server Support ✓ Password Authentication ✓ Guest Network Isolation ✓ Private Pre-Shared Key (PPSK) ✓ WiFi Speed Limiting ✓ Client Device Isolation ✓ WiFi Schedules ✓ RADIUS over TLS (RadSec) ✓ Dynamic RADIUS-assigned VLAN ✓ Wireless Meshing ✓ Band Steering ✓ 802.11v BSS Transition Management ✓ 802.11r Fast Roaming ✓ 802.11k Radio Resource Management (RRM) ✓ Zero-Wait DFS ✓ Advanced Radio Management ✓ Real-Time Spectral Analysis ✓ Passpoint (Hotspot 2.0) ✓ Captive Hotspot Portal Custom Branding Landing Page ✓ Voucher Authentication ✓ Payment-Based Authentication ✓ External Portal Server Support ✓ Password Authentication ✓ Guest Network Isolation ✓ Private Pre-Shared Key (PPSK) ✓ WiFi Speed Limiting ✓ Client Device Isolation ✓ WiFi Schedules ✓ RADIUS over TLS (RadSec) ✓ Dynamic RADIUS-assigned VLAN ✓ Wireless Meshing ✓ Wireless Meshing ✓ ✓ Band Steering ✓ Band Steering ✓ ✓ 802.11v BSS Transition Management ✓ 802.11v BSS Transition Management ✓ ✓ 802.11r Fast Roaming ✓ 802.11r Fast Roaming ✓ ✓ 802.11k Radio Resource Management (RRM) ✓ 802.11k Radio Resource Management (RRM) ✓ ✓ Zero-Wait DFS ✓ Zero-Wait DFS ✓ ✓ Advanced Radio Management ✓ Advanced Radio Management ✓ ✓ Real-Time Spectral Analysis ✓ Real-Time Spectral Analysis ✓ ✓ Passpoint (Hotspot 2.0) ✓ Passpoint (Hotspot 2.0) ✓ ✓ Captive Hotspot Portal Captive Hotspot Portal Custom Branding Landing Page ✓ Custom Branding Landing Page ✓ ✓ Voucher Authentication ✓ Voucher Authentication ✓ ✓ Payment-Based Authentication ✓ Payment-Based Authentication ✓ ✓ External Portal Server Support ✓ External Portal Server Support ✓ ✓ Password Authentication ✓ Password Authentication ✓ ✓ Guest Network Isolation ✓ Guest Network Isolation ✓ ✓ Private Pre-Shared Key (PPSK) ✓ Private Pre-Shared Key (PPSK) ✓ ✓ WiFi Speed Limiting ✓ WiFi Speed Limiting ✓ ✓ Client Device Isolation ✓ Client Device Isolation ✓ ✓ WiFi Schedules ✓ WiFi Schedules ✓ ✓ RADIUS over TLS (RadSec) ✓ RADIUS over TLS (RadSec) ✓ ✓ Dynamic RADIUS-assigned VLAN ✓ Dynamic RADIUS-assigned VLAN ✓ ✓ Hardware Max. Power Consumption 29W Supported Voltage Range 42.5—57V DC Networking Interface (1) 10 GbE RJ45 port Weight 800 g (1.8 lb) Management Ethernet Enclosure Material UV-stabilized polycarbonate, aluminum alloy Mount Material Stainless steel (SUS304), galvanized steel (SGCC) LEDs System White/Blue Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 05123-25-08356 Operating Frequency US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz U-NII-5 to U-NII-8 : 5925 – 7125 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz 5925 – 7125 MHz Ambient Operating Temperature -30 to 40° C (-22 to 104° F) Ambient Operating Humidity 5 to 95% noncondensing Max. Power Consumption 29W Supported Voltage Range 42.5—57V DC Networking Interface (1) 10 GbE RJ45 port Weight 800 g (1.8 lb) Management Ethernet Enclosure Material UV-stabilized polycarbonate, aluminum alloy Mount Material Stainless steel (SUS304), galvanized steel (SGCC) LEDs System White/Blue Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 05123-25-08356 Operating Frequency US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz U-NII-5 to U-NII-8 : 5925 – 7125 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz 5925 – 7125 MHz Ambient Operating Temperature -30 to 40° C (-22 to 104° F) Ambient Operating Humidity 5 to 95% noncondensing Max. Power Consumption 29W Supported Voltage Range 42.5—57V DC Networking Interface (1) 10 GbE RJ45 port Weight 800 g (1.8 lb) Management Ethernet Enclosure Material UV-stabilized polycarbonate, aluminum alloy Mount Material Stainless steel (SUS304), galvanized steel (SGCC) LEDs System White/Blue Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 05123-25-08356 Operating Frequency US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz U-NII-5 to U-NII-8 : 5925 – 7125 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz 5925 – 7125 MHz Ambient Operating Temperature -30 to 40° C (-22 to 104° F) Ambient Operating Humidity 5 to 95% noncondensing Max. Power Consumption 29W Max. Power Consumption 29W 29W Supported Voltage Range 42.5—57V DC Supported Voltage Range 42.5—57V DC 42.5—57V DC Networking Interface (1) 10 GbE RJ45 port Networking Interface (1) 10 GbE RJ45 port (1) 10 GbE RJ45 port Weight 800 g (1.8 lb) Weight 800 g (1.8 lb) 800 g (1.8 lb) Management Ethernet Management Ethernet Ethernet Enclosure Material UV-stabilized polycarbonate, aluminum alloy Enclosure Material UV-stabilized polycarbonate, aluminum alloy UV-stabilized polycarbonate, aluminum alloy Mount Material Stainless steel (SUS304), galvanized steel (SGCC) Mount Material Stainless steel (SUS304), galvanized steel (SGCC) Stainless steel (SUS304), galvanized steel (SGCC) LEDs LEDs System White/Blue System White/Blue White/Blue Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) NDAA Compliant ✓ NDAA Compliant ✓ ✓ Certifications CE, FCC, IC, Anatel: 05123-25-08356 Certifications CE, FCC, IC, Anatel: 05123-25-08356 CE, FCC, IC, Anatel: 05123-25-08356 Operating Frequency US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz U-NII-5 to U-NII-8 : 5925 – 7125 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz 5925 – 7125 MHz Operating Frequency US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz U-NII-5 to U-NII-8 : 5925 – 7125 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz 5925 – 7125 MHz US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz U-NII-5 to U-NII-8 : 5925 – 7125 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz 5925 – 7125 MHz Ambient Operating Temperature -30 to 40° C (-22 to 104° F) Ambient Operating Temperature -30 to 40° C (-22 to 104° F) -30 to 40° C (-22 to 104° F) Ambient Operating Humidity 5 to 95% noncondensing Ambient Operating Humidity 5 to 95% noncondensing 5 to 95% noncondensing Software Application Requirements UniFi Network Version 9.0.114 and later (U7 Pro XGS – White) Version 9.1.120 and later (U7 Pro XGS – Black) Application Requirements UniFi Network Version 9.0.114 and later (U7 Pro XGS – White) Version 9.1.120 and later (U7 Pro XGS – Black) Application Requirements UniFi Network Version 9.0.114 and later (U7 Pro XGS – White) Version 9.1.120 and later (U7 Pro XGS – Black) Application Requirements Application Requirements UniFi Network Version 9.0.114 and later (U7 Pro XGS – White) Version 9.1.120 and later (U7 Pro XGS – Black) UniFi Network Version 9.0.114 and later (U7 Pro XGS – White) Version 9.1.120 and later (U7 Pro XGS – Black) Version 9.0.114 and later (U7 Pro XGS – White) Version 9.1.120 and later (U7 Pro XGS – Black)
