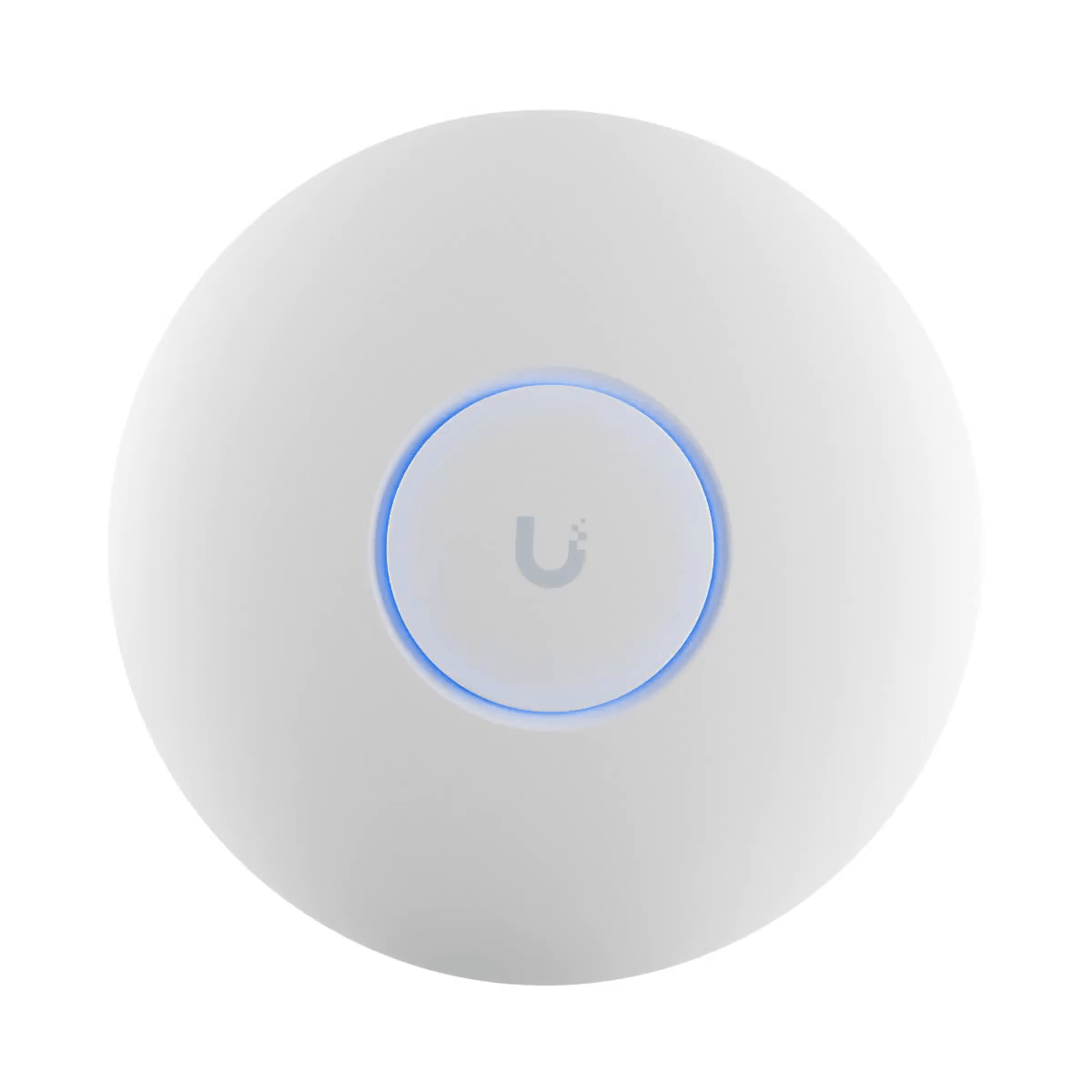

Ubiquiti U7-LITE UniFi 7 Lite

Overview Dimensions Ø171.5 x 33 mm (Ø6.8 x 1.3″) WiFi Standard WIFi 7 Spatial Streams 4 Coverage Area 115 m² (1,250 ft²) Max. Client Count 200+ Uplink 2.5 GbE Mounting Ceiling, Wall (Lite Mount Included) Power Method PoE Performance MIMO 5 GHz 2 x 2 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) Max. Data Rate 5 GHz 4.3 Gbps (BW240) 2.4 GHz 688 Mbps (BW40) Antenna Gain 5 GHz 5 dBi 2.4 GHz 4 dBi Max. TX Power 5 GHz 24 dBm 2.4 GHz 23 dBm Max. BSSIDs 8 per Radio Supported Data Rates 802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240) 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160) 802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) Features Wireless Meshing Yes Band Steering Yes 802.11v BSS Transition Management Yes 802.11r Fast Roaming Yes 802.11k Radio Resource Management (RRM) Yes Advanced Radio Management Yes Passpoint (Hotspot 2.0) Yes Captive Hotspot Portal Custom Branding Landing Page Yes Voucher Authentication Yes Payment-Based Authentication Yes External Portal Server Support Yes Password Authentication Yes Guest Network Isolation Yes Private Pre-Shared Key (PPSK) Yes WiFi Speed Limiting Yes Client Device Isolation Yes WiFi Schedules Yes RADIUS over TLS (RadSec) Yes Dynamic RADIUS-assigned VLAN Yes Hardware Max. Power Consumption 13W Supported Voltage Range 42.5—57V DC Networking Interface (1) 2.5 GbE RJ45 port Weight 313 g (11 oz) Management Ethernet Enclosure Material UV-stabilized polycarbonate Mount Material UV-stabilized polycarbonate, galvanized steel (SGCC) LEDs System White/Blue Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) Certifications CE, FCC, IC NDAA Compliant Yes Ambient Operating Temperature -30 to 40° C (-22 to 104° F) Ambient Operating Humidity 5 to 95% noncondensing Software Application Requirements UniFi Network Version 9.0.114 and later UniFi OS iOS™ version 10.20.2 and later Android™ version 10.21.7 and later Overview Overview Dimensions Ø171.5 x 33 mm (Ø6.8 x 1.3″) DimensionsØ171.5 x 33 mm (Ø6.8 x 1.3″) WiFi Standard WIFi 7 WiFi StandardWIFi 7 Spatial Streams 4 Spatial Streams4 Coverage Area 115 m² (1,250 ft²) Coverage Area115 m² (1,250 ft²) Max. Client Count 200+ Max. Client Count200+ Uplink 2.5 GbE Uplink2.5 GbE Mounting Ceiling, Wall (Lite Mount Included) MountingCeiling, Wall (Lite Mount Included) Power Method PoE Power MethodPoE Performance Performance MIMO MIMO 5 GHz 2 x 2 (DL/UL MU-MIMO) 5 GHz2 x 2 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) 2.4 GHz2 x 2 (DL/UL MU-MIMO) Max. Data Rate Max. Data Rate 5 GHz 4.3 Gbps (BW240) 5 GHz4.3 Gbps (BW240) 2.4 GHz 688 Mbps (BW40) 2.4 GHz688 Mbps (BW40) Antenna Gain Antenna Gain 5 GHz 5 dBi 5 GHz5 dBi 2.4 GHz 4 dBi 2.4 GHz4 dBi Max. TX Power Max. TX Power 5 GHz 24 dBm 5 GHz24 dBm 2.4 GHz 23 dBm 2.4 GHz23 dBm Max. BSSIDs 8 per Radio Max. BSSIDs8 per Radio Supported Data Rates Supported Data Rates 802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240) 802.11be (WiFi 7)7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240) 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160) 802.11ax (WiFi 6)7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160) 802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160) 802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) 802.11n6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) Features Features Wireless Meshing Yes Wireless MeshingYes Band Steering Yes Band SteeringYes 802.11v BSS Transition Management Yes 802.11v BSS Transition ManagementYes 802.11r Fast Roaming Yes 802.11r Fast RoamingYes 802.11k Radio Resource Management (RRM) Yes 802.11k Radio Resource Management (RRM)Yes Advanced Radio Management Yes Advanced Radio ManagementYes Passpoint (Hotspot 2.0) Yes Passpoint (Hotspot 2.0)Yes Captive Hotspot Portal Captive Hotspot Portal Custom Branding Landing Page Yes Custom Branding Landing PageYes Voucher Authentication Yes Voucher AuthenticationYes Payment-Based Authentication Yes Payment-Based AuthenticationYes External Portal Server Support Yes External Portal Server SupportYes Password Authentication Yes Password AuthenticationYes Guest Network Isolation Yes Guest Network IsolationYes Private Pre-Shared Key (PPSK) Yes Private Pre-Shared Key (PPSK)Yes WiFi Speed Limiting Yes WiFi Speed LimitingYes Client Device Isolation Yes Client Device IsolationYes WiFi Schedules Yes WiFi SchedulesYes RADIUS over TLS (RadSec) Yes RADIUS over TLS (RadSec)Yes Dynamic RADIUS-assigned VLAN Yes Dynamic RADIUS-assigned VLANYes Hardware Hardware Max. Power Consumption 13W Max. Power Consumption13W Supported Voltage Range 42.5—57V DC Supported Voltage Range42.5—57V DC Networking Interface (1) 2.5 GbE RJ45 port Networking Interface(1) 2.5 GbE RJ45 port Weight 313 g (11 oz) Weight313 g (11 oz) Management Ethernet ManagementEthernet Enclosure Material UV-stabilized polycarbonate Enclosure MaterialUV-stabilized polycarbonate Mount Material UV-stabilized polycarbonate, galvanized steel (SGCC) Mount MaterialUV-stabilized polycarbonate, galvanized steel (SGCC) LEDs LEDs System White/Blue SystemWhite/Blue Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) Channel BandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) Certifications CE, FCC, IC CertificationsCE, FCC, IC NDAA Compliant Yes NDAA CompliantYes Ambient Operating Temperature -30 to 40° C (-22 to 104° F) Ambient Operating Temperature-30 to 40° C (-22 to 104° F) Ambient Operating Humidity 5 to 95% noncondensing Ambient Operating Humidity5 to 95% noncondensing Software Software Application Requirements Application Requirements UniFi Network Version 9.0.114 and later UniFi NetworkVersion 9.0.114 and later UniFi OS iOS™ version 10.20.2 and later Android™ version 10.21.7 and later UniFi OSiOS™ version 10.20.2 and later Android™ version 10.21.7 and later
