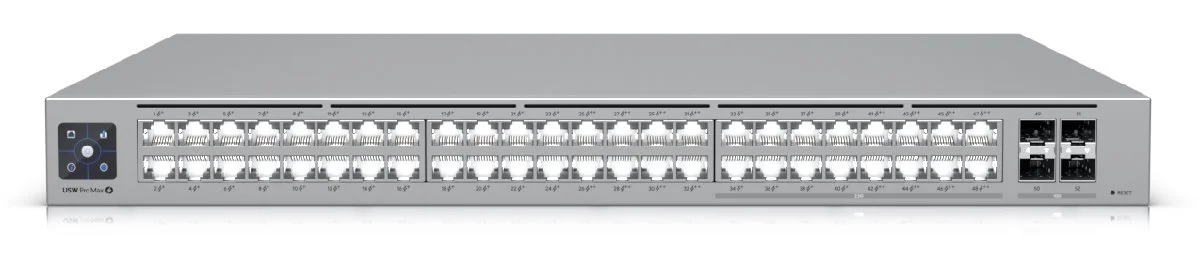

Ubiquiti UniFi switch USW-Pro-Max-48-PoE

Dimensions 442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7″) Port Layout 1 GbE RJ45 32 (24 PoE+; 8 PoE++) (1G/100M/10M) 2.5 GbE RJ45 16 (8 PoE+; 8 PoE++) (2.5G/1G/100M/10M) 10G SFP+ 4 (10G/1G) Max. PoE Output Up to PoE++ Total PoE Availability 720W Redundancy DC Power Backup Layer 3 ✓ Form Factor Rack mount (1U) Etherlighting™ ✓ Performance Switching Capacity 224 Gbps Total Non-Blocking Throughput 112 Gbps Forwarding Rate 167 Mpps Supported VLANs 1,000 MAC Address Table Size 32,000 L3 Table Size ARP Entries 12,000 IPv4 Routes 12,000 IPv4 Static Routes 256 Packet Buffer Size 2 MB Access Lists IPv4 128 MAC 128 Layer 3 Features DHCP Server (Local Networks) ✓ DHCP Relay ✓ Inter-VLAN Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ Layer 2 Features LACP Port Aggregation ✓ STP & RSTP ✓ QoS (DSCP) ✓ Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ 802.1X Control ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ Storm Control ✓ Multicast & Broadcast Rate Limiting ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ Virtual Network Override ✓ Hardware PoE Ports PoE+ 32 PoE++ 16 Max. PoE Wattage per Port by PSE PoE 15.4W PoE+ 32W PoE++ 64W Max. Power Consumption 100W (Excluding PoE Output) 820W (Including PoE Output) Power Method (1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input Power Input Method AC input Power Supply AC/DC, internal, 870W Supported Voltage Range 100—240V AC Management Ethernet AR Heat Dissipation 341.2 BTU/hr (Excluding PoE Output) Weight Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb) Enclosure Material SGCC steel Mount Material SGCC steel Supported Rack Depth 400~1200 mm (15.7-47.2″) LCM Display 1.3″ touchscreen ESD Protection Air: ± 16kV, contact: ± 12kV Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing Etherlighting™ Ethernet ✓ SFP+ ✓ NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 06373-24-08356 Software Application Requirements UniFi Network Version 8.0.24 and later Dimensions 442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7″) Port Layout 1 GbE RJ45 32 (24 PoE+; 8 PoE++) (1G/100M/10M) 2.5 GbE RJ45 16 (8 PoE+; 8 PoE++) (2.5G/1G/100M/10M) 10G SFP+ 4 (10G/1G) Max. PoE Output Up to PoE++ Total PoE Availability 720W Redundancy DC Power Backup Layer 3 ✓ Form Factor Rack mount (1U) Etherlighting™ ✓ Dimensions 442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7″) Port Layout 1 GbE RJ45 32 (24 PoE+; 8 PoE++) (1G/100M/10M) 2.5 GbE RJ45 16 (8 PoE+; 8 PoE++) (2.5G/1G/100M/10M) 10G SFP+ 4 (10G/1G) Max. PoE Output Up to PoE++ Total PoE Availability 720W Redundancy DC Power Backup Layer 3 ✓ Form Factor Rack mount (1U) Etherlighting™ ✓ Dimensions 442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7″) Port Layout 1 GbE RJ45 32 (24 PoE+; 8 PoE++) (1G/100M/10M) 2.5 GbE RJ45 16 (8 PoE+; 8 PoE++) (2.5G/1G/100M/10M) 10G SFP+ 4 (10G/1G) Max. PoE Output Up to PoE++ Total PoE Availability 720W Redundancy DC Power Backup Layer 3 ✓ Form Factor Rack mount (1U) Etherlighting™ ✓ Dimensions 442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7″) Dimensions 442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7″) 442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7″) Port Layout Port Layout 1 GbE RJ45 32 (24 PoE+; 8 PoE++) (1G/100M/10M) 1 GbE RJ45 32 (24 PoE+; 8 PoE++) (1G/100M/10M) 32 (24 PoE+; 8 PoE++) (1G/100M/10M) 2.5 GbE RJ45 16 (8 PoE+; 8 PoE++) (2.5G/1G/100M/10M) 2.5 GbE RJ45 16 (8 PoE+; 8 PoE++) (2.5G/1G/100M/10M) 16 (8 PoE+; 8 PoE++) (2.5G/1G/100M/10M) 10G SFP+ 4 (10G/1G) 10G SFP+ 4 (10G/1G) 4 (10G/1G) Max. PoE Output Up to PoE++ Max. PoE Output Up to PoE++ Up to PoE++ Total PoE Availability 720W Total PoE Availability 720W 720W Redundancy DC Power Backup Redundancy DC Power Backup DC Power Backup Layer 3 ✓ Layer 3 ✓ ✓ Form Factor Rack mount (1U) Form Factor Rack mount (1U) Rack mount (1U) Etherlighting™ ✓ Etherlighting™ ✓ ✓ Performance Switching Capacity 224 Gbps Total Non-Blocking Throughput 112 Gbps Forwarding Rate 167 Mpps Supported VLANs 1,000 MAC Address Table Size 32,000 L3 Table Size ARP Entries 12,000 IPv4 Routes 12,000 IPv4 Static Routes 256 Packet Buffer Size 2 MB Access Lists IPv4 128 MAC 128 Switching Capacity 224 Gbps Total Non-Blocking Throughput 112 Gbps Forwarding Rate 167 Mpps Supported VLANs 1,000 MAC Address Table Size 32,000 L3 Table Size ARP Entries 12,000 IPv4 Routes 12,000 IPv4 Static Routes 256 Packet Buffer Size 2 MB Access Lists IPv4 128 MAC 128 Switching Capacity 224 Gbps Total Non-Blocking Throughput 112 Gbps Forwarding Rate 167 Mpps Supported VLANs 1,000 MAC Address Table Size 32,000 L3 Table Size ARP Entries 12,000 IPv4 Routes 12,000 IPv4 Static Routes 256 Packet Buffer Size 2 MB Access Lists IPv4 128 MAC 128 Switching Capacity 224 Gbps Switching Capacity 224 Gbps 224 Gbps Total Non-Blocking Throughput 112 Gbps Total Non-Blocking Throughput 112 Gbps 112 Gbps Forwarding Rate 167 Mpps Forwarding Rate 167 Mpps 167 Mpps Supported VLANs 1,000 Supported VLANs 1,000 1,000 MAC Address Table Size 32,000 MAC Address Table Size 32,000 32,000 L3 Table Size L3 Table Size ARP Entries 12,000 ARP Entries 12,000 12,000 IPv4 Routes 12,000 IPv4 Routes 12,000 12,000 IPv4 Static Routes 256 IPv4 Static Routes 256 256 Packet Buffer Size 2 MB Packet Buffer Size 2 MB 2 MB Access Lists Access Lists IPv4 128 IPv4 128 128 MAC 128 MAC 128 128 Layer 3 Features DHCP Server (Local Networks) ✓ DHCP Relay ✓ Inter-VLAN Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ DHCP Server (Local Networks) ✓ DHCP Relay ✓ Inter-VLAN Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ DHCP Server (Local Networks) ✓ DHCP Relay ✓ Inter-VLAN Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ DHCP Server (Local Networks) ✓ DHCP Server (Local Networks) ✓ ✓ DHCP Relay ✓ DHCP Relay ✓ ✓ Inter-VLAN Routing (Local Networks) ✓ Inter-VLAN Routing (Local Networks) ✓ ✓ Static Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ ✓ Layer 2 Features LACP Port Aggregation ✓ STP & RSTP ✓ QoS (DSCP) ✓ Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ 802.1X Control ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ Storm Control ✓ Multicast & Broadcast Rate Limiting ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ Virtual Network Override ✓ LACP Port Aggregation ✓ STP & RSTP ✓ QoS (DSCP) ✓ Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ 802.1X Control ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ Storm Control ✓ Multicast & Broadcast Rate Limiting ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ Virtual Network Override ✓ LACP Port Aggregation ✓ STP & RSTP ✓ QoS (DSCP) ✓ Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ 802.1X Control ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ Storm Control ✓ Multicast & Broadcast Rate Limiting ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ Virtual Network Override ✓ LACP Port Aggregation ✓ LACP Port Aggregation ✓ ✓ STP & RSTP ✓ STP & RSTP ✓ ✓ QoS (DSCP) ✓ QoS (DSCP) ✓ ✓ Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) ✓ Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) ✓ ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ ✓ IGMP Snooping ✓ IGMP Snooping ✓ ✓ 802.1X Control ✓ 802.1X Control ✓ ✓ MAC-Based ACLs & Device Isolation ✓ MAC-Based ACLs & Device Isolation ✓ ✓ DHCP Snooping & Guarding ✓ DHCP Snooping & Guarding ✓ ✓ Egress Rate Limit ✓ Egress Rate Limit ✓ ✓ Flow Control ✓ Flow Control ✓ ✓ Storm Control ✓ Storm Control ✓ ✓ Multicast & Broadcast Rate Limiting ✓ Multicast & Broadcast Rate Limiting ✓ ✓ MAC Address Blocking ✓ MAC Address Blocking ✓ ✓ IP-Based ACLs & Network Isolation ✓ IP-Based ACLs & Network Isolation ✓ ✓ MAC-Based Port Restriction ✓ MAC-Based Port Restriction ✓ ✓ Port Isolation ✓ Port Isolation ✓ ✓ Port Mirroring ✓ Port Mirroring ✓ ✓ Jumbo Frames ✓ Jumbo Frames ✓ ✓ LLDP-MED ✓ LLDP-MED ✓ ✓ Voice VLAN ✓ Voice VLAN ✓ ✓ Loop Protection ✓ Loop Protection ✓ ✓ Virtual Network Override ✓ Virtual Network Override ✓ ✓ Hardware PoE Ports PoE+ 32 PoE++ 16 Max. PoE Wattage per Port by PSE PoE 15.4W PoE+ 32W PoE++ 64W Max. Power Consumption 100W (Excluding PoE Output) 820W (Including PoE Output) Power Method (1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input Power Input Method AC input Power Supply AC/DC, internal, 870W Supported Voltage Range 100—240V AC Management Ethernet AR Heat Dissipation 341.2 BTU/hr (Excluding PoE Output) Weight Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb) Enclosure Material SGCC steel Mount Material SGCC steel Supported Rack Depth 400~1200 mm (15.7-47.2″) LCM Display 1.3″ touchscreen ESD Protection Air: ± 16kV, contact: ± 12kV Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing Etherlighting™ Ethernet ✓ SFP+ ✓ NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 06373-24-08356 PoE Ports PoE+ 32 PoE++ 16 Max. PoE Wattage per Port by PSE PoE 15.4W PoE+ 32W PoE++ 64W Max. Power Consumption 100W (Excluding PoE Output) 820W (Including PoE Output) Power Method (1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input Power Input Method AC input Power Supply AC/DC, internal, 870W Supported Voltage Range 100—240V AC Management Ethernet AR Heat Dissipation 341.2 BTU/hr (Excluding PoE Output) Weight Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb) Enclosure Material SGCC steel Mount Material SGCC steel Supported Rack Depth 400~1200 mm (15.7-47.2″) LCM Display 1.3″ touchscreen ESD Protection Air: ± 16kV, contact: ± 12kV Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing Etherlighting™ Ethernet ✓ SFP+ ✓ NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 06373-24-08356 PoE Ports PoE+ 32 PoE++ 16 Max. PoE Wattage per Port by PSE PoE 15.4W PoE+ 32W PoE++ 64W Max. Power Consumption 100W (Excluding PoE Output) 820W (Including PoE Output) Power Method (1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input Power Input Method AC input Power Supply AC/DC, internal, 870W Supported Voltage Range 100—240V AC Management Ethernet AR Heat Dissipation 341.2 BTU/hr (Excluding PoE Output) Weight Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb) Enclosure Material SGCC steel Mount Material SGCC steel Supported Rack Depth 400~1200 mm (15.7-47.2″) LCM Display 1.3″ touchscreen ESD Protection Air: ± 16kV, contact: ± 12kV Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing Etherlighting™ Ethernet ✓ SFP+ ✓ NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 06373-24-08356 PoE Ports PoE Ports PoE+ 32 PoE+ 32 32 PoE++ 16 PoE++ 16 16 Max. PoE Wattage per Port by PSE Max. PoE Wattage per Port by PSE PoE 15.4W PoE 15.4W 15.4W PoE+ 32W PoE+ 32W 32W PoE++ 64W PoE++ 64W 64W Max. Power Consumption 100W (Excluding PoE Output) 820W (Including PoE Output) Max. Power Consumption 100W (Excluding PoE Output) 820W (Including PoE Output) 100W (Excluding PoE Output) 820W (Including PoE Output) Power Method (1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input Power Method (1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input (1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input Power Input Method AC input Power Input Method AC input AC input Power Supply AC/DC, internal, 870W Power Supply AC/DC, internal, 870W AC/DC, internal, 870W Supported Voltage Range 100—240V AC Supported Voltage Range 100—240V AC 100—240V AC Management Ethernet AR Management Ethernet AR Ethernet AR Heat Dissipation 341.2 BTU/hr (Excluding PoE Output) Heat Dissipation 341.2 BTU/hr (Excluding PoE Output) 341.2 BTU/hr (Excluding PoE Output) Weight Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb) Weight Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb) Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb) Enclosure Material SGCC steel Enclosure Material SGCC steel SGCC steel Mount Material SGCC steel Mount Material SGCC steel SGCC steel Supported Rack Depth 400~1200 mm (15.7-47.2″) Supported Rack Depth 400~1200 mm (15.7-47.2″) 400~1200 mm (15.7-47.2″) LCM Display 1.3″ touchscreen LCM Display 1.3″ touchscreen 1.3″ touchscreen ESD Protection Air: ± 16kV, contact: ± 12kV ESD Protection Air: ± 16kV, contact: ± 12kV Air: ± 16kV, contact: ± 12kV Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Temperature -5 to 40° C (23 to 104° F) -5 to 40° C (23 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing Ambient Operating Humidity 10 to 90% noncondensing 10 to 90% noncondensing Etherlighting™ Etherlighting™ Ethernet ✓ Ethernet ✓ ✓ SFP+ ✓ SFP+ ✓ ✓ NDAA Compliant ✓ NDAA Compliant ✓ ✓ Certifications CE, FCC, IC, Anatel: 06373-24-08356 Certifications CE, FCC, IC, Anatel: 06373-24-08356 CE, FCC, IC, Anatel: 06373-24-08356 Software Application Requirements UniFi Network Version 8.0.24 and later Application Requirements UniFi Network Version 8.0.24 and later Application Requirements UniFi Network Version 8.0.24 and later Application Requirements Application Requirements UniFi Network Version 8.0.24 and later UniFi Network Version 8.0.24 and later Version 8.0.24 and later
