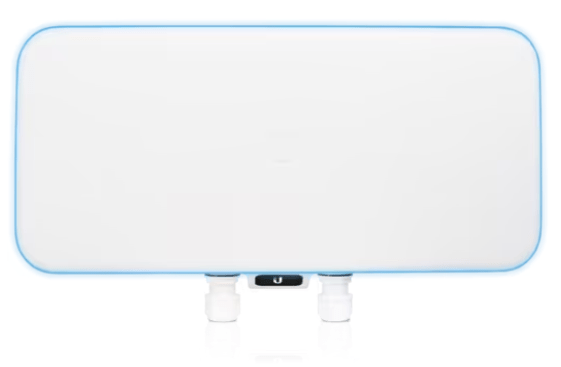

WiFi BaseStation XG

Dimensions 471.1 x 257.5 x 94.3 mm (18.6 x 10.1 x 3.7″) WiFi Standard WiFi 5 Spatial Streams 12 Coverage Area 465 m² (5,000 ft²) Max. Client Count 1500+ Uplink 10 GbE Mounting Wall, Pole (Mounts Included), VESA (Optional) Weatherproofing IP67 Power Method PoE++ Performance MIMO 5 GHz Low Band: 4 x 4 (DL MU-MIMO) Vertical Band: 4 x 4 (DL MU-MIMO) High Band: 4 x 4 (DL MU-MIMO) Max. Data Rate 5 GHz Low Band: 1.7 Gbps (BW80) Vertical Band: 1.7 Gbps (BW80) High Band: 1.7 Gbps (BW80) Antenna Gain 5 GHz Directional internal: 15 dBi, 50° x 50° Directional internal: 10 dBi, 90° x 90° Max. TX Power 5 GHz 25 dBm Max. BSSIDs 8 per Radio Supported Data Rates 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80) 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS23, HT 20/40) Features Wireless Meshing ✓ Band Steering ✓ 802.11v BSS Transition Management ✓ 802.11r Fast Roaming ✓ 802.11k Radio Resource Management (RRM) ✓ Advanced Radio Management ✓ Passpoint (Hotspot 2.0) ✓ Captive Hotspot Portal Custom Branding Landing Page ✓ Voucher Authentication ✓ Payment-Based Authentication ✓ External Portal Server Support ✓ Password Authentication ✓ Guest Network Isolation ✓ Client Device Isolation ✓ WiFi Schedules ✓ RADIUS over TLS (RadSec) ✓ Dynamic RADIUS-assigned VLAN ✓ Hardware Max. Power Consumption 31W Includes PoE Adapter ✓ Supported Voltage Range 44—57V DC Networking Interface (1) GbE RJ45 port (1) 1/10 GbE ICM Ethernet port Weight 3.2 kg (7.1 lb) Pole Mount Diameter 1~3″ (25~76 mm) Antennas (1) Integrated dual-mode antenna array Management Ethernet Bluetooth Enclosure Material Polycarbonate, aluminum alloy LEDs System R/G/B Channel Bandwidth HT 20/40, VHT 20/40/80, HE 20/40/80 (MHz) NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 08960-24-08356 Operating Frequency US/CA: U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5670 MHz U-NII-3: 5725 – 5850 MHz Worldwide: 5150 – 5250 MHz 5250 – 5350 MHz 5470 – 5670 MHz Ambient Operating Temperature -40 to 70° C (-40 to 158° F) Ambient Operating Humidity 5 to 95% noncondensing Software Application Requirements UniFi Network Version 6.0.45 and later Dimensions 471.1 x 257.5 x 94.3 mm (18.6 x 10.1 x 3.7″) WiFi Standard WiFi 5 Spatial Streams 12 Coverage Area 465 m² (5,000 ft²) Max. Client Count 1500+ Uplink 10 GbE Mounting Wall, Pole (Mounts Included), VESA (Optional) Weatherproofing IP67 Power Method PoE++ Dimensions 471.1 x 257.5 x 94.3 mm (18.6 x 10.1 x 3.7″) WiFi Standard WiFi 5 Spatial Streams 12 Coverage Area 465 m² (5,000 ft²) Max. Client Count 1500+ Uplink 10 GbE Mounting Wall, Pole (Mounts Included), VESA (Optional) Weatherproofing IP67 Power Method PoE++ Dimensions 471.1 x 257.5 x 94.3 mm (18.6 x 10.1 x 3.7″) WiFi Standard WiFi 5 Spatial Streams 12 Coverage Area 465 m² (5,000 ft²) Max. Client Count 1500+ Uplink 10 GbE Mounting Wall, Pole (Mounts Included), VESA (Optional) Weatherproofing IP67 Power Method PoE++ Dimensions 471.1 x 257.5 x 94.3 mm (18.6 x 10.1 x 3.7″) Dimensions 471.1 x 257.5 x 94.3 mm (18.6 x 10.1 x 3.7″) 471.1 x 257.5 x 94.3 mm (18.6 x 10.1 x 3.7″) WiFi Standard WiFi 5 WiFi Standard WiFi 5 WiFi 5 Spatial Streams 12 Spatial Streams 12 12 Coverage Area 465 m² (5,000 ft²) Coverage Area 465 m² (5,000 ft²) 465 m² (5,000 ft²) Max. Client Count 1500+ Max. Client Count 1500+ 1500+ Uplink 10 GbE Uplink 10 GbE 10 GbE Mounting Wall, Pole (Mounts Included), VESA (Optional) Mounting Wall, Pole (Mounts Included), VESA (Optional) Wall, Pole (Mounts Included), VESA (Optional) Weatherproofing IP67 Weatherproofing IP67 IP67 Power Method PoE++ Power Method PoE++ PoE++ Performance MIMO 5 GHz Low Band: 4 x 4 (DL MU-MIMO) Vertical Band: 4 x 4 (DL MU-MIMO) High Band: 4 x 4 (DL MU-MIMO) Max. Data Rate 5 GHz Low Band: 1.7 Gbps (BW80) Vertical Band: 1.7 Gbps (BW80) High Band: 1.7 Gbps (BW80) Antenna Gain 5 GHz Directional internal: 15 dBi, 50° x 50° Directional internal: 10 dBi, 90° x 90° Max. TX Power 5 GHz 25 dBm Max. BSSIDs 8 per Radio Supported Data Rates 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80) 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS23, HT 20/40) MIMO 5 GHz Low Band: 4 x 4 (DL MU-MIMO) Vertical Band: 4 x 4 (DL MU-MIMO) High Band: 4 x 4 (DL MU-MIMO) Max. Data Rate 5 GHz Low Band: 1.7 Gbps (BW80) Vertical Band: 1.7 Gbps (BW80) High Band: 1.7 Gbps (BW80) Antenna Gain 5 GHz Directional internal: 15 dBi, 50° x 50° Directional internal: 10 dBi, 90° x 90° Max. TX Power 5 GHz 25 dBm Max. BSSIDs 8 per Radio Supported Data Rates 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80) 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS23, HT 20/40) MIMO 5 GHz Low Band: 4 x 4 (DL MU-MIMO) Vertical Band: 4 x 4 (DL MU-MIMO) High Band: 4 x 4 (DL MU-MIMO) Max. Data Rate 5 GHz Low Band: 1.7 Gbps (BW80) Vertical Band: 1.7 Gbps (BW80) High Band: 1.7 Gbps (BW80) Antenna Gain 5 GHz Directional internal: 15 dBi, 50° x 50° Directional internal: 10 dBi, 90° x 90° Max. TX Power 5 GHz 25 dBm Max. BSSIDs 8 per Radio Supported Data Rates 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80) 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS23, HT 20/40) MIMO MIMO 5 GHz Low Band: 4 x 4 (DL MU-MIMO) Vertical Band: 4 x 4 (DL MU-MIMO) High Band: 4 x 4 (DL MU-MIMO) 5 GHz Low Band: 4 x 4 (DL MU-MIMO) Vertical Band: 4 x 4 (DL MU-MIMO) High Band: 4 x 4 (DL MU-MIMO) Low Band: 4 x 4 (DL MU-MIMO) Vertical Band: 4 x 4 (DL MU-MIMO) High Band: 4 x 4 (DL MU-MIMO) Max. Data Rate Max. Data Rate 5 GHz Low Band: 1.7 Gbps (BW80) Vertical Band: 1.7 Gbps (BW80) High Band: 1.7 Gbps (BW80) 5 GHz Low Band: 1.7 Gbps (BW80) Vertical Band: 1.7 Gbps (BW80) High Band: 1.7 Gbps (BW80) Low Band: 1.7 Gbps (BW80) Vertical Band: 1.7 Gbps (BW80) High Band: 1.7 Gbps (BW80) Antenna Gain Antenna Gain 5 GHz Directional internal: 15 dBi, 50° x 50° Directional internal: 10 dBi, 90° x 90° 5 GHz Directional internal: 15 dBi, 50° x 50° Directional internal: 10 dBi, 90° x 90° Directional internal: 15 dBi, 50° x 50° Directional internal: 10 dBi, 90° x 90° Max. TX Power Max. TX Power 5 GHz 25 dBm 5 GHz 25 dBm 25 dBm Max. BSSIDs 8 per Radio Max. BSSIDs 8 per Radio 8 per Radio Supported Data Rates Supported Data Rates 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80) 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80) 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80) 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS23, HT 20/40) 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS23, HT 20/40) 6.5 Mbps to 600 Mbps (MCS0 – MCS23, HT 20/40) Features Wireless Meshing ✓ Band Steering ✓ 802.11v BSS Transition Management ✓ 802.11r Fast Roaming ✓ 802.11k Radio Resource Management (RRM) ✓ Advanced Radio Management ✓ Passpoint (Hotspot 2.0) ✓ Captive Hotspot Portal Custom Branding Landing Page ✓ Voucher Authentication ✓ Payment-Based Authentication ✓ External Portal Server Support ✓ Password Authentication ✓ Guest Network Isolation ✓ Client Device Isolation ✓ WiFi Schedules ✓ RADIUS over TLS (RadSec) ✓ Dynamic RADIUS-assigned VLAN ✓ Wireless Meshing ✓ Band Steering ✓ 802.11v BSS Transition Management ✓ 802.11r Fast Roaming ✓ 802.11k Radio Resource Management (RRM) ✓ Advanced Radio Management ✓ Passpoint (Hotspot 2.0) ✓ Captive Hotspot Portal Custom Branding Landing Page ✓ Voucher Authentication ✓ Payment-Based Authentication ✓ External Portal Server Support ✓ Password Authentication ✓ Guest Network Isolation ✓ Client Device Isolation ✓ WiFi Schedules ✓ RADIUS over TLS (RadSec) ✓ Dynamic RADIUS-assigned VLAN ✓ Wireless Meshing ✓ Band Steering ✓ 802.11v BSS Transition Management ✓ 802.11r Fast Roaming ✓ 802.11k Radio Resource Management (RRM) ✓ Advanced Radio Management ✓ Passpoint (Hotspot 2.0) ✓ Captive Hotspot Portal Custom Branding Landing Page ✓ Voucher Authentication ✓ Payment-Based Authentication ✓ External Portal Server Support ✓ Password Authentication ✓ Guest Network Isolation ✓ Client Device Isolation ✓ WiFi Schedules ✓ RADIUS over TLS (RadSec) ✓ Dynamic RADIUS-assigned VLAN ✓ Wireless Meshing ✓ Wireless Meshing ✓ ✓ Band Steering ✓ Band Steering ✓ ✓ 802.11v BSS Transition Management ✓ 802.11v BSS Transition Management ✓ ✓ 802.11r Fast Roaming ✓ 802.11r Fast Roaming ✓ ✓ 802.11k Radio Resource Management (RRM) ✓ 802.11k Radio Resource Management (RRM) ✓ ✓ Advanced Radio Management ✓ Advanced Radio Management ✓ ✓ Passpoint (Hotspot 2.0) ✓ Passpoint (Hotspot 2.0) ✓ ✓ Captive Hotspot Portal Captive Hotspot Portal Custom Branding Landing Page ✓ Custom Branding Landing Page ✓ ✓ Voucher Authentication ✓ Voucher Authentication ✓ ✓ Payment-Based Authentication ✓ Payment-Based Authentication ✓ ✓ External Portal Server Support ✓ External Portal Server Support ✓ ✓ Password Authentication ✓ Password Authentication ✓ ✓ Guest Network Isolation ✓ Guest Network Isolation ✓ ✓ Client Device Isolation ✓ Client Device Isolation ✓ ✓ WiFi Schedules ✓ WiFi Schedules ✓ ✓ RADIUS over TLS (RadSec) ✓ RADIUS over TLS (RadSec) ✓ ✓ Dynamic RADIUS-assigned VLAN ✓ Dynamic RADIUS-assigned VLAN ✓ ✓ Hardware Max. Power Consumption 31W Includes PoE Adapter ✓ Supported Voltage Range 44—57V DC Networking Interface (1) GbE RJ45 port (1) 1/10 GbE ICM Ethernet port Weight 3.2 kg (7.1 lb) Pole Mount Diameter 1~3″ (25~76 mm) Antennas (1) Integrated dual-mode antenna array Management Ethernet Bluetooth Enclosure Material Polycarbonate, aluminum alloy LEDs System R/G/B Channel Bandwidth HT 20/40, VHT 20/40/80, HE 20/40/80 (MHz) NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 08960-24-08356 Operating Frequency US/CA: U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5670 MHz U-NII-3: 5725 – 5850 MHz Worldwide: 5150 – 5250 MHz 5250 – 5350 MHz 5470 – 5670 MHz Ambient Operating Temperature -40 to 70° C (-40 to 158° F) Ambient Operating Humidity 5 to 95% noncondensing Max. Power Consumption 31W Includes PoE Adapter ✓ Supported Voltage Range 44—57V DC Networking Interface (1) GbE RJ45 port (1) 1/10 GbE ICM Ethernet port Weight 3.2 kg (7.1 lb) Pole Mount Diameter 1~3″ (25~76 mm) Antennas (1) Integrated dual-mode antenna array Management Ethernet Bluetooth Enclosure Material Polycarbonate, aluminum alloy LEDs System R/G/B Channel Bandwidth HT 20/40, VHT 20/40/80, HE 20/40/80 (MHz) NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 08960-24-08356 Operating Frequency US/CA: U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5670 MHz U-NII-3: 5725 – 5850 MHz Worldwide: 5150 – 5250 MHz 5250 – 5350 MHz 5470 – 5670 MHz Ambient Operating Temperature -40 to 70° C (-40 to 158° F) Ambient Operating Humidity 5 to 95% noncondensing Max. Power Consumption 31W Includes PoE Adapter ✓ Supported Voltage Range 44—57V DC Networking Interface (1) GbE RJ45 port (1) 1/10 GbE ICM Ethernet port Weight 3.2 kg (7.1 lb) Pole Mount Diameter 1~3″ (25~76 mm) Antennas (1) Integrated dual-mode antenna array Management Ethernet Bluetooth Enclosure Material Polycarbonate, aluminum alloy LEDs System R/G/B Channel Bandwidth HT 20/40, VHT 20/40/80, HE 20/40/80 (MHz) NDAA Compliant ✓ Certifications CE, FCC, IC, Anatel: 08960-24-08356 Operating Frequency US/CA: U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5670 MHz U-NII-3: 5725 – 5850 MHz Worldwide: 5150 – 5250 MHz 5250 – 5350 MHz 5470 – 5670 MHz Ambient Operating Temperature -40 to 70° C (-40 to 158° F) Ambient Operating Humidity 5 to 95% noncondensing Max. Power Consumption 31W Max. Power Consumption 31W 31W Includes PoE Adapter ✓ Includes PoE Adapter ✓ ✓ Supported Voltage Range 44—57V DC Supported Voltage Range 44—57V DC 44—57V DC Networking Interface (1) GbE RJ45 port (1) 1/10 GbE ICM Ethernet port Networking Interface (1) GbE RJ45 port (1) 1/10 GbE ICM Ethernet port (1) GbE RJ45 port (1) 1/10 GbE ICM Ethernet port Weight 3.2 kg (7.1 lb) Weight 3.2 kg (7.1 lb) 3.2 kg (7.1 lb) Pole Mount Diameter 1~3″ (25~76 mm) Pole Mount Diameter 1~3″ (25~76 mm) 1~3″ (25~76 mm) Antennas (1) Integrated dual-mode antenna array Antennas (1) Integrated dual-mode antenna array (1) Integrated dual-mode antenna array Management Ethernet Bluetooth Management Ethernet Bluetooth Ethernet Bluetooth Enclosure Material Polycarbonate, aluminum alloy Enclosure Material Polycarbonate, aluminum alloy Polycarbonate, aluminum alloy LEDs LEDs System R/G/B System R/G/B R/G/B Channel Bandwidth HT 20/40, VHT 20/40/80, HE 20/40/80 (MHz) Channel Bandwidth HT 20/40, VHT 20/40/80, HE 20/40/80 (MHz) HT 20/40, VHT 20/40/80, HE 20/40/80 (MHz) NDAA Compliant ✓ NDAA Compliant ✓ ✓ Certifications CE, FCC, IC, Anatel: 08960-24-08356 Certifications CE, FCC, IC, Anatel: 08960-24-08356 CE, FCC, IC, Anatel: 08960-24-08356 Operating Frequency US/CA: U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5670 MHz U-NII-3: 5725 – 5850 MHz Worldwide: 5150 – 5250 MHz 5250 – 5350 MHz 5470 – 5670 MHz Operating Frequency US/CA: U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5670 MHz U-NII-3: 5725 – 5850 MHz Worldwide: 5150 – 5250 MHz 5250 – 5350 MHz 5470 – 5670 MHz US/CA: U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5670 MHz U-NII-3: 5725 – 5850 MHz Worldwide: 5150 – 5250 MHz 5250 – 5350 MHz 5470 – 5670 MHz Ambient Operating Temperature -40 to 70° C (-40 to 158° F) Ambient Operating Temperature -40 to 70° C (-40 to 158° F) -40 to 70° C (-40 to 158° F) Ambient Operating Humidity 5 to 95% noncondensing Ambient Operating Humidity 5 to 95% noncondensing 5 to 95% noncondensing Software Application Requirements UniFi Network Version 6.0.45 and later Application Requirements UniFi Network Version 6.0.45 and later Application Requirements UniFi Network Version 6.0.45 and later Application Requirements Application Requirements UniFi Network Version 6.0.45 and later UniFi Network Version 6.0.45 and later Version 6.0.45 and later
